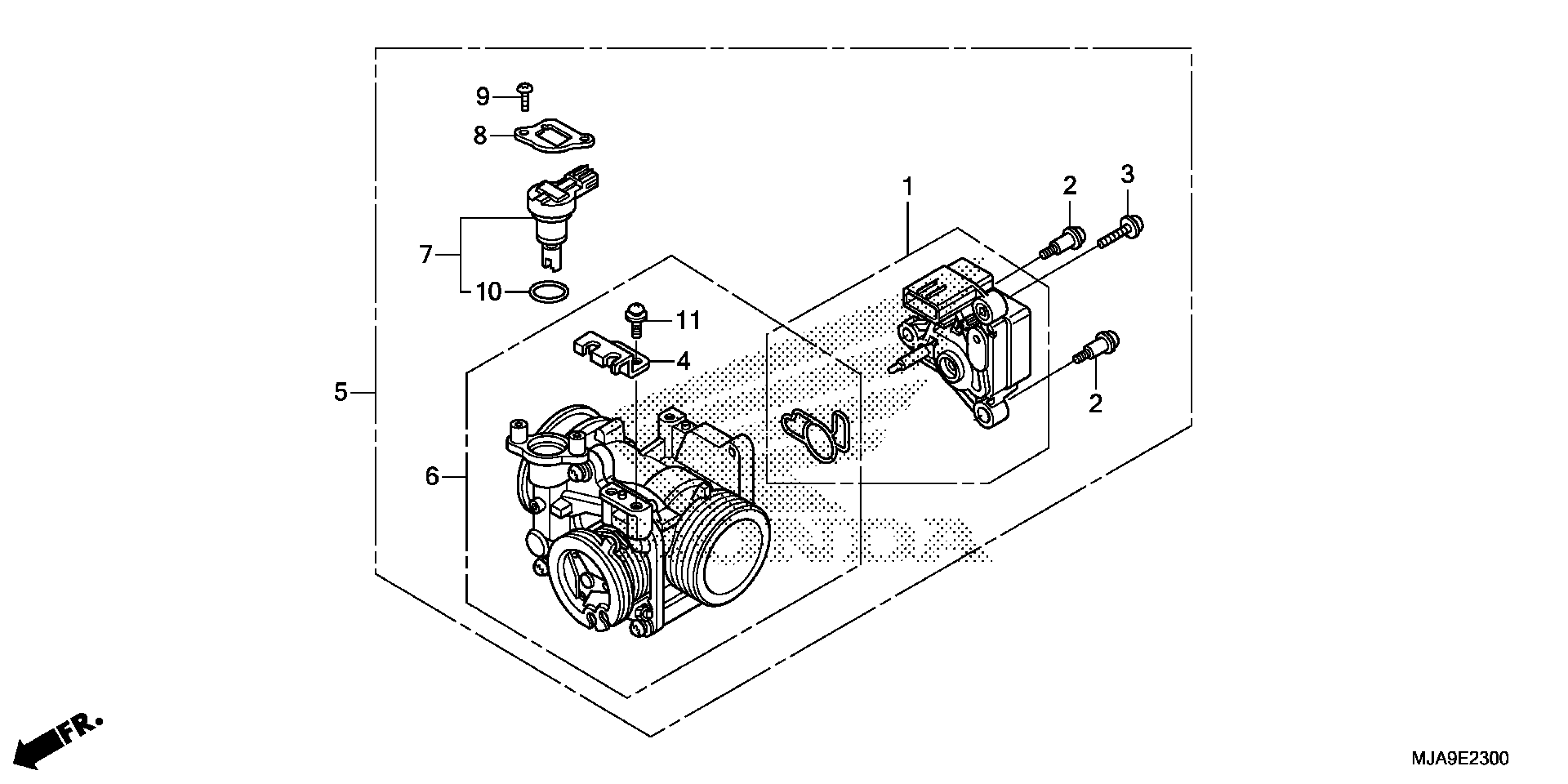

Honda VT750C2BAC (17) MOTORCYCLE, JPN, VIN# JH2RC538-HK700001 THROTTLE BODY Diagram

#

Description
Price

1

SENSOR SET, THROTTLE

16060-MFS-003

$159.64

2

SCREW, TORX (5X8.7)

16081-KPH-701

$3.12

3

SCREW, TORX (5X17)

16082-KPH-701

$5.43

4

STAY, WIRE

16169-MFE-641

$15.67

5

BODY ASSY., THROTTLE (GQ9KA A)

16400-MEG-A61

$477.43

6

BODY SET

16410-MEG-A61

$254.02

7

VALVE SET, IDLE AIR CONTROL

16430-MFE-641

$114.48

8

PLATE, IDLE AIR CONTROL VALVE

16432-MFE-641

$7.28

9

SCREW, TORX

16433-HN8-A61

$1.49

10

O-RING (17.8X1.9)

16435-HN8-A61

$9.12

11

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.49

11

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49
