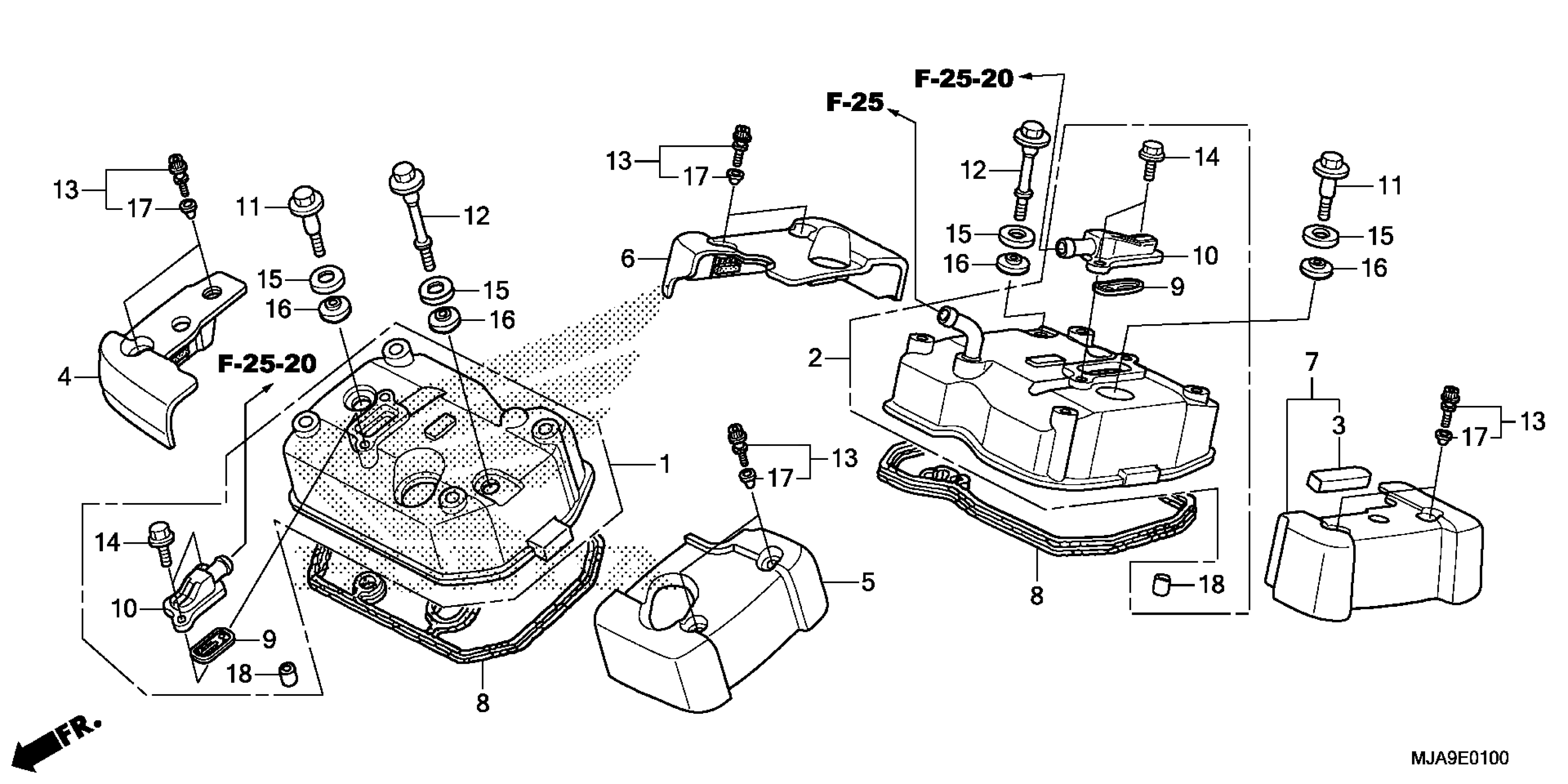

Honda VT750C2BAC (17) MOTORCYCLE, JPN, VIN# JH2RC538-HK700001 CYLINDER HEAD COVER Diagram

COVER ASSY., FR. CYLINDER HEAD

12310-MFE-640

$157.38

COVER ASSY., RR. CYLINDER HEAD

12320-MFE-640

$157.38

RUBBER, OVER HEAD COVER

12342-MEG-300

$1.49

COVER, R. FR. OVER HEAD

12360-MJA-L60

$74.44

COVER, L. FR. OVER HEAD

12370-MJA-L60

$74.44

COVER, R. RR. OVER HEAD

12380-MJA-L60

$74.44

COVER, L. RR. OVER HEAD

12390-MJA-L60

$71.23

GASKET, HEAD COVER

12391-MEG-000

$17.54

VALVE, REED

18601-MEG-901

$28.00

COVER, REED VALVE

18612-MFE-640

$14.08

BOLT, FLANGE (6X30)

90011-MA6-000

$3.89

BOLT, HEAD COVER

90011-MEG-000

$5.64

BOLT ASSY., SPECIAL (6X22) (FRAME NO.)

90020-MBA-D20

$4.24

BOLT, FLANGE (5X16)

90102-MEG-000

$1.49

WASHER, MOUNTING RUBBER

90541-MB0-000

$4.80

RUBBER, MOUNTING

90542-MB0-000

$3.15

RUBBER, MOUNTING (FRAME NO.)

90543-MBA-000

$2.92

PIN A, DOWEL (14X20)

94301-14200

$2.28
