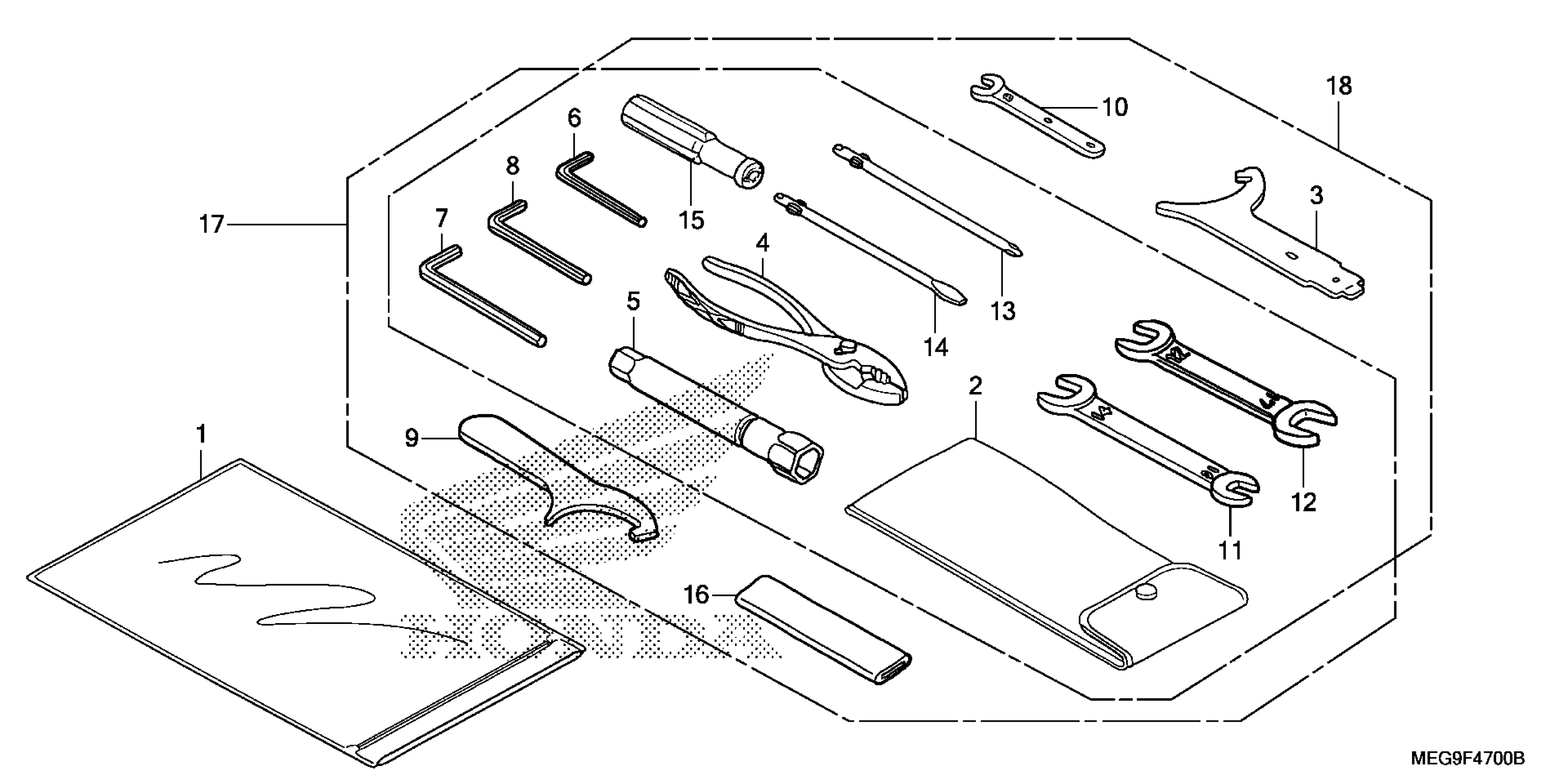

Honda VT750C2BAC (11) SHADOW PHANTOM, JPN, VIN# JH2RC538-BK100001 TO JH2RC538-BK199999 TOOLS Diagram

BAG, SERVICE BOOK

77251-GR1-000

$4.30

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.30

BAG, TOOL | (Optional). This part replaces 89101-MC7-000.

89101-ME5-670

Unavailable

BAG, TOOL (NOT AVAILABLE)

89101-063-000

$2.51

PLIERS (135) (RIKEN) | (Optional).

89210-GBJ-J00

$8.85

PLIERS (135) (KOWA) | (Optional).

89210-GBJ-J10

$13.57

PLIERS (135) (KOWA) | (Optional). This part replaces 99002-13500.

89210-GBJ-J10

$13.57

WRENCH, PLUG (16.5) | (Optional).

89216-MBA-000

$12.54

WRENCH, HEX. (4MM) | (Optional).

89221-KW3-000

$5.46

WRENCH, HEX. (6MM) | (Optional).

89221-371-000

$4.28

WRENCH, HEX. (6MM) (NOT AVAILABLE)

89221-422-000

$29.41

WRENCH, HEX. (5MM) | (Optional).

89221-429-000

$3.90

WRENCH, PIN (OPEN END) | (Optional).

89230-MB1-000

$22.52

WRENCH (10X14) (OPEN END)

99001-10140

$2.92

SPANNER (12X17) (NOT AVAILABLE) | (Optional).

99001-12170

$8.06

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

GRIP, SCREW DRIVER

99003-50000

$3.27

HANDLE, EYE WRENCH (120MM) | (Optional).

99006-12000

$2.87

TOOL SET | (Optional).

89010-MFE-720

$131.15
