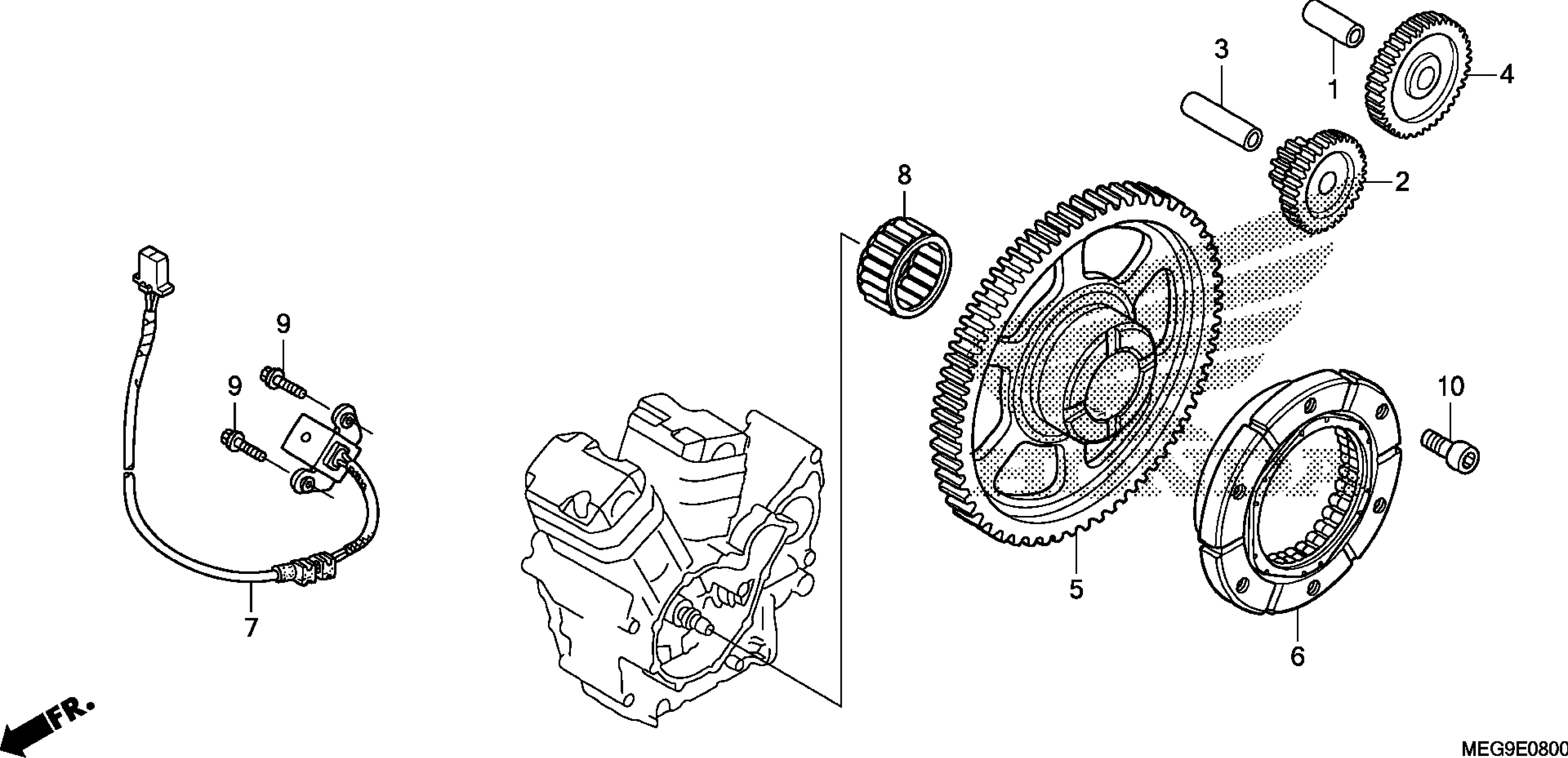

Honda VT750C2BAC (11) SHADOW PHANTOM, JPN, VIN# JH2RC538-BK100001 TO JH2RC538-BK199999 STARTING CLUTCH Diagram

#

Description

Price

1

PIN, PISTON

13111-GS7-000

$9.55

1

PIN, PISTON This part replaces 13111-122-000.

13111-GS7-000

$9.55

2

GEAR, STARTER REDUCTION (39T/12T) | Use from Engine SN 2111328.

28101-MGS-D30

$80.25

2

GEAR, STARTER REDUCTION (39T/12T) | Use up to Engine SN 2111327. This part replaces 28101-MN8-000.

28101-MGS-D30

$80.25

3

PIN (10X44)

28102-ME9-000

$10.35

4

GEAR, STARTER (51T) | Use up to Engine SN 2111328. This part replaces 28106-ME9-010.

28106-MGS-D30

$77.95

4

GEAR, STARTER (51T)

28106-MGS-D30

$77.95

5

GEAR, STARTER DRIVEN (88T) | Use from Engine SN 2111328.

28110-MGS-D30

$176.54

6

CLUTCH OUTER ASSY., STARTING (FUJI)

28125-MBA-003

$233.08

7

GENERATOR ASSY., PULSE

30300-MEG-000

$53.62

8

BEARING, NEEDLE (30X37X20) (NTN)

91021-MF5-841

$32.52

9

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

10

BOLT, SOCKET (8X20)

96700-08020-00

$1.80

10

BOLT, SOCKET (8X20) This part replaces 96700-08020-10.

96700-08020-00

$1.80
