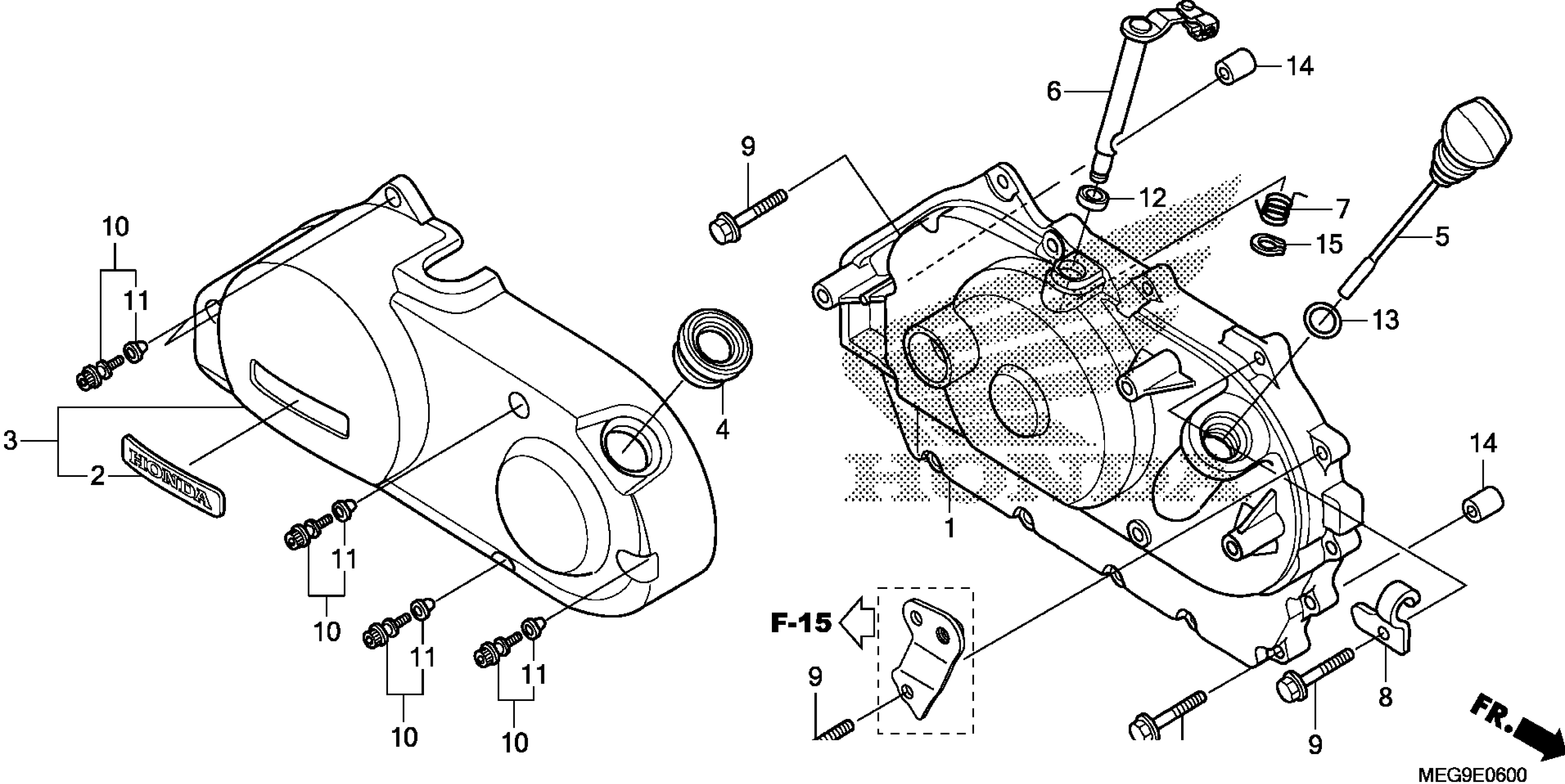

Honda VT750C2BAC (11) SHADOW PHANTOM, JPN, VIN# JH2RC538-BK100001 TO JH2RC538-BK199999 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-MFE-A40

$267.72

EMBLEM (HONDA)

11332-MFE-A40

$14.49

COVER, CLUTCH

11335-MFE-A40

$195.67

RUBBER, OIL SEAL

11339-MEG-000

$2.33

DIPSTICK, OIL

15650-MEG-000

$16.40

LEVER, CLUTCH

22810-MEG-000

$49.28

SPRING, CLUTCH LEVER

22815-413-000

$3.08

RECEIVER, CLUTCH WIRE

22825-MEW-920

$7.70

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.92

BOLT ASSY., SPECIAL (6X22) (FRAME NO.)

90020-MBA-D20

$4.24

RUBBER, MOUNTING (FRAME NO.)

90543-MBA-000

$2.92

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

O-RING (18X3)

91307-035-000

$2.92

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49
