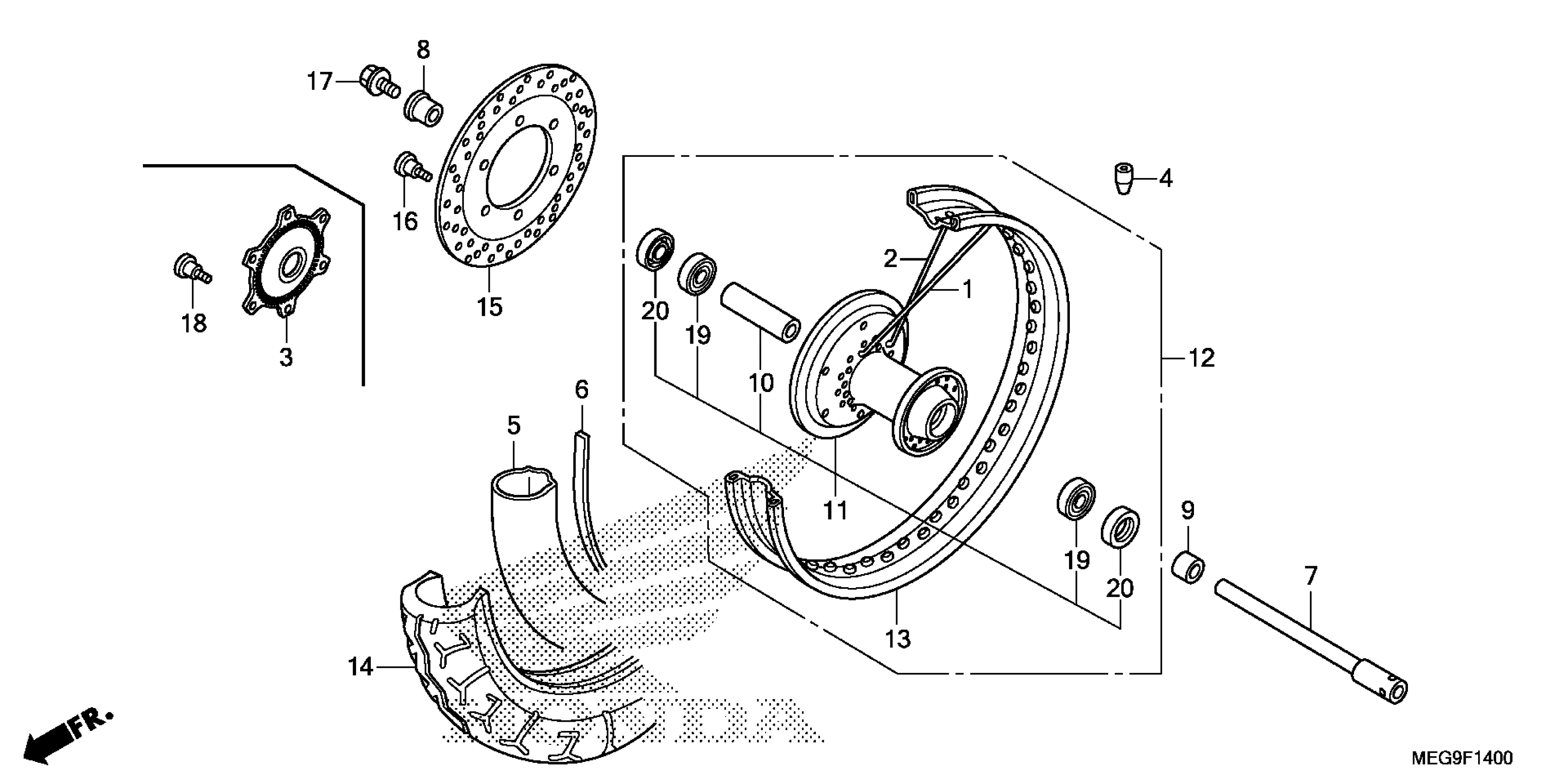

Honda VT750C2BAC (11) SHADOW PHANTOM, JPN, VIN# JH2RC538-BK100001 TO JH2RC538-BK199999 FRONT WHEEL Diagram

#

Description
Price

1

SPOKE SET A (INSIDE)

06440-MEG-000

$4.52

2

SPOKE SET B (OUTSIDE)

06441-MEG-000

$4.12

4

WEIGHT, BALANCE (15G)

42704-MEG-003

$8.08

4

WEIGHT, BALANCE (20G)

42705-MEG-003

$8.08

5

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-KB7-902.

42712-MA0-005

Unavailable

5

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-KK0-003.

42712-MA0-005

Unavailable

5

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-MC4-005.

42712-MA0-005

Unavailable

5

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-MC4-009.

42712-MA0-005

Unavailable

5

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-MG7-003.

42712-MA0-005

Unavailable

5

TUBE, TIRE (120/90-17) (BS)

42712-MN9-003

Unavailable

5

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-371-003.

42712-MA0-005

Unavailable

5

TUBE, TIRE (5.10-17) (INOUE) This part replaces 42712-371-004.

42712-MA0-005

Unavailable

6

FLAP, TIRE (BS)

42713-MY1-003

$7.20

6

FLAP, TIRE (DUNLOP)

44713-MAV-004

$6.60

7

AXLE, FR. WHEEL

44301-MCK-G00

$50.15

8

COLLAR, R. FR. WHEEL SIDE

44312-MFE-A40

$19.64

9

COLLAR, L. FR. WHEEL SIDE

44313-MFE-A40

$13.89

10

COLLAR, FR. AXLE DISTANCE

44620-MBC-000

$16.92

11

HUB SUB-ASSY., FR.

44635-MFE-A40

$278.93

12

WHEEL SUB-ASSY., FR.

44650-MFE-A40

$624.46

13

RIM, FR. WHEEL (DAIDO)

44701-MFE-A41

$124.18

14

TIRE(120/90-17) This part replaces 44711-MEG-A41.

44711-MEG-A45

$224.22

14

TIRE, FR. This part replaces 44711-MEG-A42.

44711-MEG-A44

$236.74

14

TIRE, FR. This part replaces 44711-MEG-A43.

44711-MEG-A44

$236.74

14

TIRE, FR.

44711-MEG-A44

$236.74

14

TIRE(120/90-17)

44711-MEG-A45

$224.22

15

DISK, FR. BRAKE

45251-MFE-671

$331.00

16

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

16

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

17

BOLT, FR. AXLE

90105-MBT-610

$5.76

19

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$27.50

19

BEARING, RADIAL BALL (6204UU) This part replaces 91052-MBC-004.

91052-MAE-004

$27.50

20

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98
