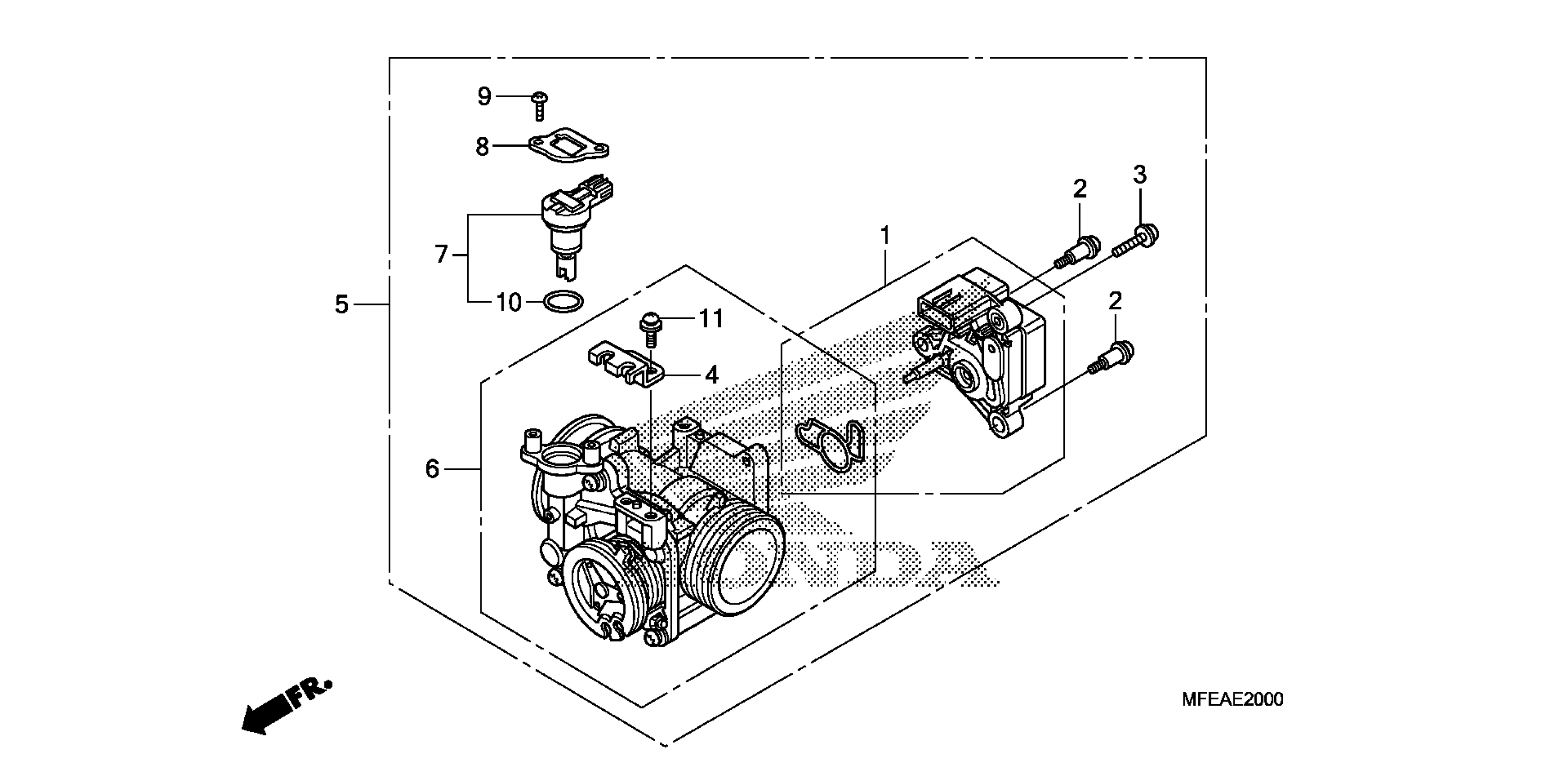

Honda VT750C2BAC (10) SHADOW PHANTOM, JPN, VIN# JH2RC538-AK000001 THROTTLE BODY Diagram

SENSOR SET, THROTTLE

16060-MFS-003

$159.64

SCREW, TORX (5X8.7)

16081-KPH-701

$3.12

SCREW, TORX (5X17)

16082-KPH-701

$5.43

STAY, WIRE

16169-MFE-641

$15.67

BODY ASSY., THROTTLE (GQ9KA A)

16400-MEG-A61

$477.43

BODY SET

16410-MEG-A61

$254.02

VALVE SET, IDLE AIR CONTROL

16430-MFE-641

$114.48

PLATE, IDLE AIR CONTROL VALVE

16432-MFE-641

$7.28

SCREW, TORX

16433-HN8-A61

$1.49

O-RING (17.8X1.9)

16435-HN8-A61

$9.12

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.49

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49
