Description

Price

1

HEADLIGHT ASSY. (12V 60/55W) (STANLEY)

33100-MFE-A41

$220.19

1

HEADLIGHT ASSY. (12V 60/55W) (STANLEY) This part replaces 33100-MFE-306.

33100-MFE-A41

$220.19

2

RIM, HEADLIGHT

33101-MFE-A41

$35.35

3

SCREW-WASHER

33104-MAH-671

$3.83

4

SPRING, BEAM ADJUSTING (PER PARTS NEWS 005 8/21/00)

33108-MM2-003

$3.01

5

SCREW, BEAM ADJUSTING

33114-GE1-670

$4.59

6

NUT, BEAM ADJUSTING (PER PARTS NEWS 005 8/21/00)

33118-438-841

$2.06

7

SPACER

33127-MAA-A31

$2.14

8

NUT, UNIT HOLDER

33128-MAA-A31

$2.07

9

COVER, SCREW

33136-426-830

$1.74

10

COVER, RUBBER

33180-MR7-003

Unavailable

11

BULB, HEADLIGHT (12V 60/55W) (STANLEY)

34901-MC7-602

$34.13

12

CASE, HEADLIGHT

61301-MFE-A41

$93.29

13

COLLAR, HEADLIGHT SETTING

61304-KR3-980

$5.25

16

RUBBER, HEADLIGHT MOUNTING

61315-MK7-000

$2.83

17

COLLAR, HEADLIGHT STAY

61316-MK7-000

$2.83

18

CLIP, WIRE HARNESS (4X100)

91416-PA1-000

$5.13

19

BOLT-WASHER (5X20)

93402-05020-00

$0.96

20

SCREW, TAPPING (4X10) (PO)

93913-24110

$0.90

21

NUT, FLANGE (6MM)

94050-06070

$1.44

22

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.87

23

BOLT, FLANGE (6X50)

95701-06050-07

$1.28

24

BOLT, FLANGE (8X45)

95801-08045-07

$2.80

25

STAY, HEADLIGHT

61311-MFE-A40

$21.68

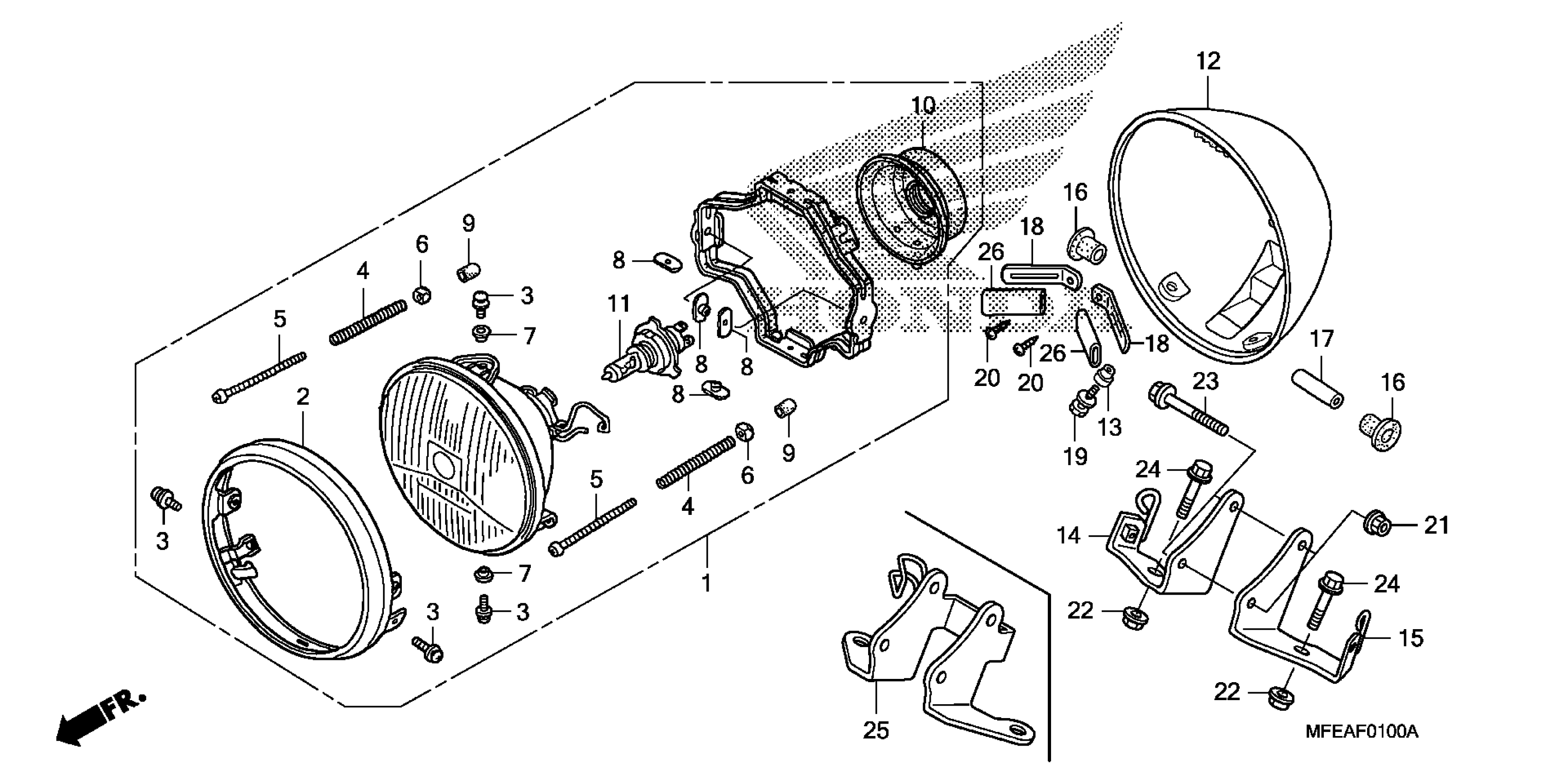

Honda VT750C2BAC (10) SHADOW PHANTOM, JPN, VIN# JH2RC538-AK000001 HEADLIGHT Diagram
