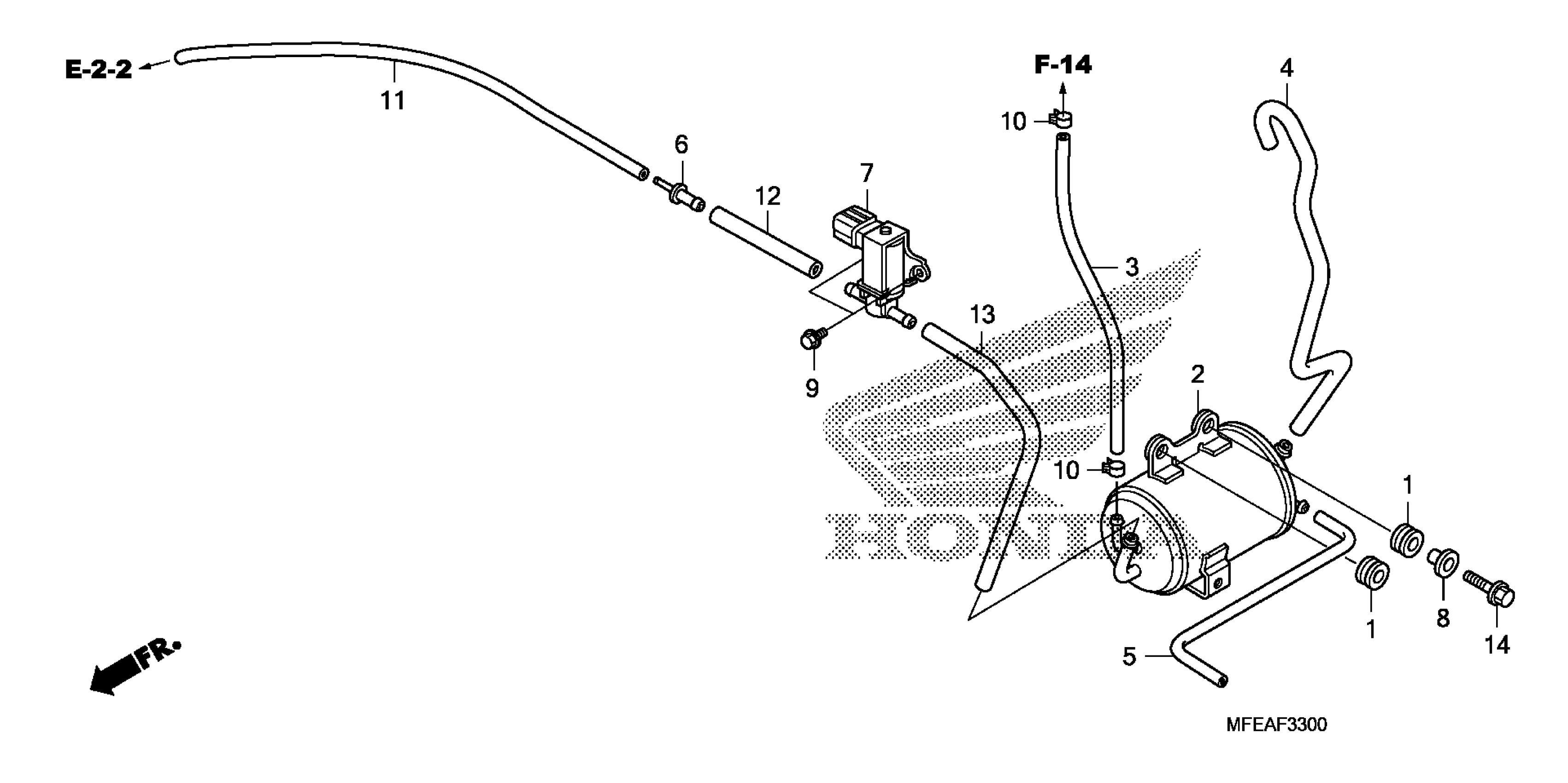

Honda VT750C2BAC (10) SHADOW PHANTOM, JPN, VIN# JH2RC538-AK000001 CANISTER Diagram

#

Description

Price

1

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.80

2

CANISTER

17410-MEG-770

$314.12

3

TUBE, CANISTER

17411-MFE-840

$13.28

4

TUBE, AIR

17464-MEG-770

$7.54

5

TUBE, CANISTER DRAIN

17465-MEG-770

$4.46

6

JOINT, TUBE

19126-KM1-010

$3.50

7

VALVE, PURGE CONTROL SOLENOID

36162-MCT-681

$117.75

8

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.28

9

BOLT, FLANGE (5X8)

90002-MC7-000

$1.71

10

CLAMP, TUBE (D7.3)

95002-40730-08

$2.34

11

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$11.17

12

BULK HOSE (7.3X1000)

95005-75001-20M

$26.09

13

BULK HOSE (7.3X1000)

95005-75001-20M

$26.09

14

BOLT, FLANGE (6X25)

95701-06025-00

$1.66
