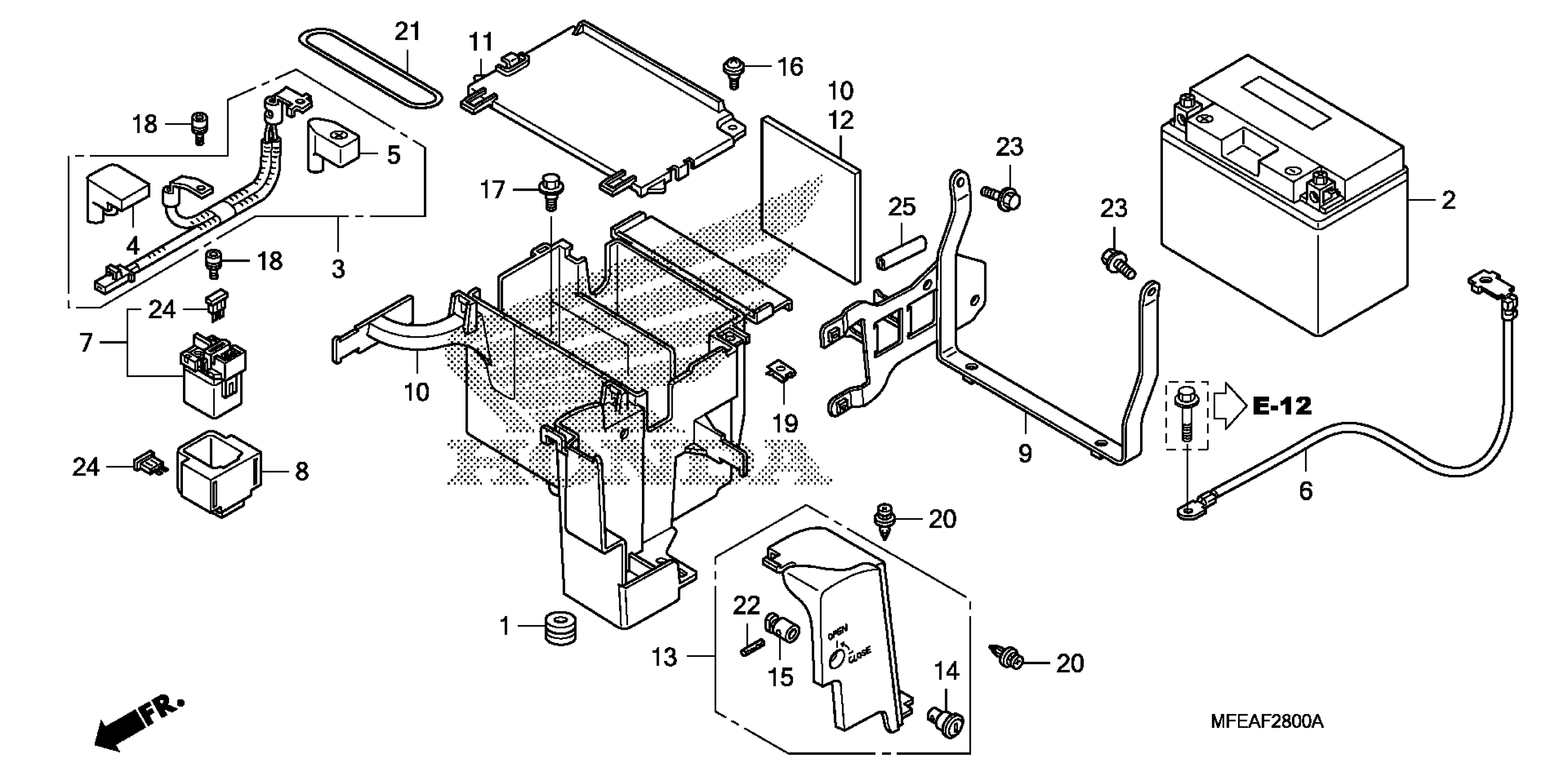

Honda VT750C2BAC (10) SHADOW PHANTOM, JPN, VIN# JH2RC538-AK000001 BATTERY (VT750C2F/C2B) Diagram

#

Description
Price

1

RUBBER, RADIATOR MOUNTING

19051-KA4-000

$3.80

2

BATTERY (YTZ14S) (YUASA) (MSDS) This part replaces 31500-MCR-D02AH.

31500-MCR-D03

$196.34

2

BATTERY (YTZ14S) (YUASA) (MSDS)

31500-MCR-D03

$196.34

2

BATTERY (YTZ14S) (YUASA) (MSDS) This part replaces 31500-MCR-D03AH.

31500-MCR-D03

$196.34

3

CABLE, STARTER BATTERY

32401-MEG-A60

$40.26

4

COVER, STARTER MAGNETIC TERMINAL This part replaces 32406-MT4-000.

32406-MT4-010

$6.39

4

COVER, STARTER MAGNETIC TERMINAL

32406-MT4-010

$6.39

5

COVER, BATTERY TERMINAL

32414-MCF-000

$6.48

5

COVER, BATTERY TERMINAL

32414-MEJ-000

$4.62

6

CABLE, BATTERY GROUND

32601-MFE-640

$22.00

7

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-MT4-000.

35850-MT4-003

$78.00

7

SWITCH ASSY., STARTER MAGNETIC

35850-MT4-003

$78.00

8

RUBBER, SHOCK

35856-KBG-007

$10.43

9

HOLDER, BATTERY BOX

50322-MFE-640

$32.85

10

BOX, BATTERY

50325-MFE-640

$51.62

11

COVER, BATTERY

50326-MFE-640

$11.13

12

CUSHION, BATTERY

50328-MFE-640

$3.84

13

COVER ASSY., TOOL

50330-MFE-640

$26.43

14

BODY, KEY

83507-422-000

$3.53

15

STOPPER, KEY BODY

83508-KBG-000

$2.90

15

STOPPER, KEY BODY This part replaces 83508-438-000.

83508-KBG-000

$2.90

16

SCREW, SPECIAL (5X12)

90105-MB1-000

$2.92

17

BOLT, FLANGE (6MM)

90111-GJ5-000

$4.24

18

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

19

NUT, CLIP (5MM)

90677-GR1-003

$4.27

20

CLIP, BODY

90683-MBW-003

$2.16

21

O-RING (109.4X3.1)

91311-MFE-640

$6.39

22

PIN, SPRING (2X14)

94305-20141

$1.49

23

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

24

FUSE, BLADE (30A)

98200-33000

$1.49

25

TRIM, FUEL TANK

17516-HC0-000

$4.49
