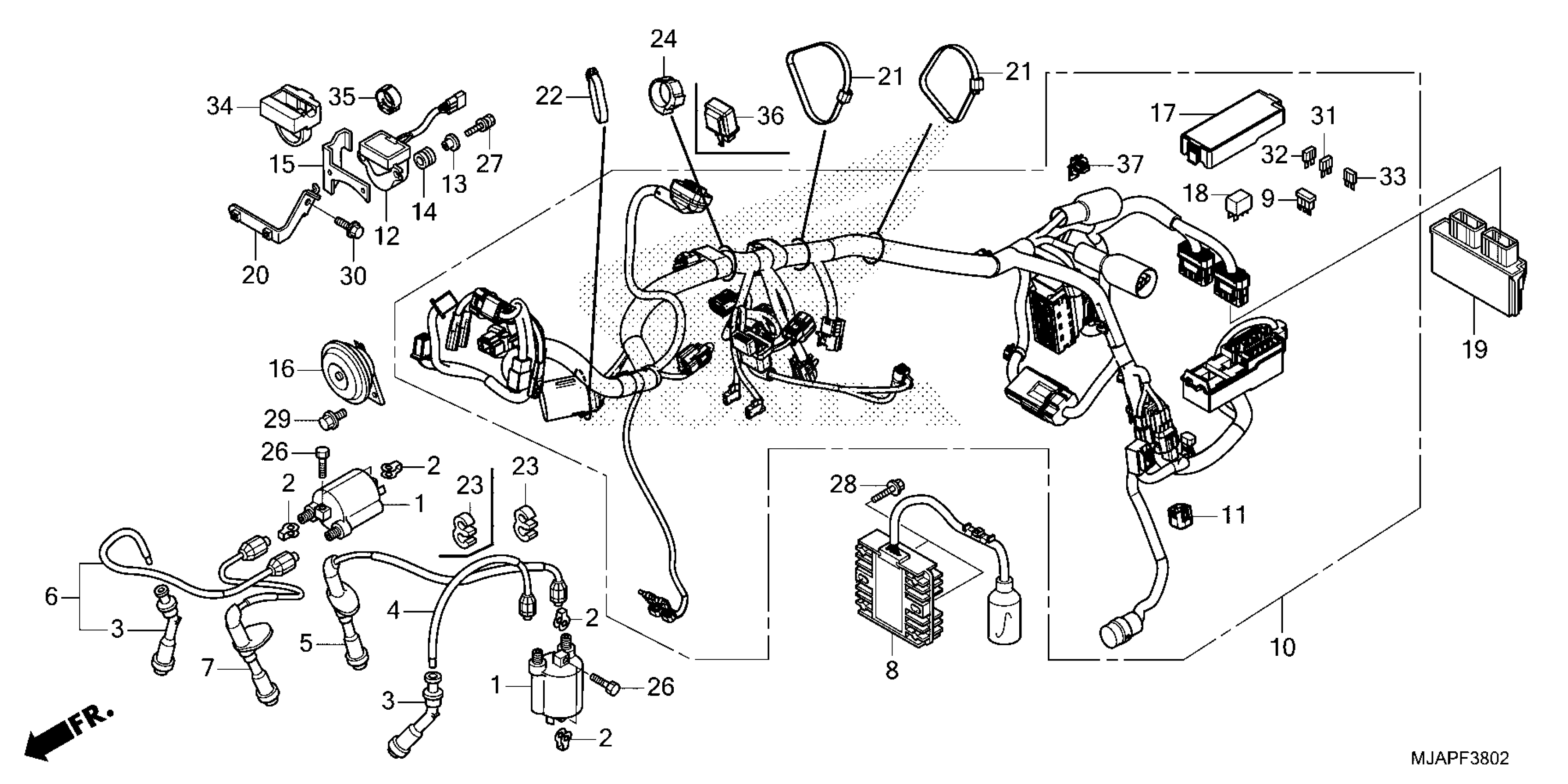

Honda VT750C2BA (24) MOTORCYCLE, JPN, VIN# JH2RC537-RK400001 TO JH2RC537-RK999999 WIRE HARNESS (3) Diagram

COIL, IGNITION

30510-MCC-003

$89.93

SPACER, IGNITION COIL

30520-ML7-000

$3.77

CAP ASSY., NOISE SUPPRESSOR

30700-KK6-153

$28.93

WIRE, L. RR. IGNITION

30753-MEG-H11

$38.00

WIRE, R. RR. IGNITION

30754-MEG-H11

$69.51

WIRE ASSY., R. FR. IGNITION

30771-MEG-000

$22.64

WIRE ASSY., L. FR. IGNITION

30772-MEG-000

$22.65

REG RECT ASSY.

31600-MJA-AT1

$162.66

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-MJA-AT0

$896.20

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.52

SENSOR, BANK ANGLE

35161-MJA-A01

$105.16

COLLAR

35162-MN5-003

$7.25

GROMMET

35163-MN5-003

$3.15

PLATE, BANK ANGLE SENSOR

35165-MEG-A60

$33.97

HORN (HIGH)

38110-KB1-921

$57.69

COVER (UPPER)

38255-MJA-AT0

$10.21

RELAY (MICRO ISO 4P)

38501-MKP-DN1

$4.80

PGM-FI UNIT

38770-MJA-AQ2

$958.34

BRACKET, BANK ANGLE SENSOR

50128-MEG-A60

$13.30

BAND, WIRE HARNESS

90620-SB2-003

$24.63

BAND, WIRE

90651-MJA-AT1

$3.02

CLIP, HIGH TENSION CORD (L. SIDE)

90658-ZA0-930

$2.48

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

BOLT-WASHER (4X25)

93401-04025-08

$1.49

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

BOLT, FLANGE (8X12)

95701-08012-07

$1.72

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (20A)

98200-42000

$1.49

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.67

CUSHION, BANK ANGLE

35165-MJA-A00

$9.18

CLIP, WIRE HARNESS

90683-KJ2-003

$3.56

RELAY, TURN SIGNAL

38301-KZZ-J01

$56.87

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.67
