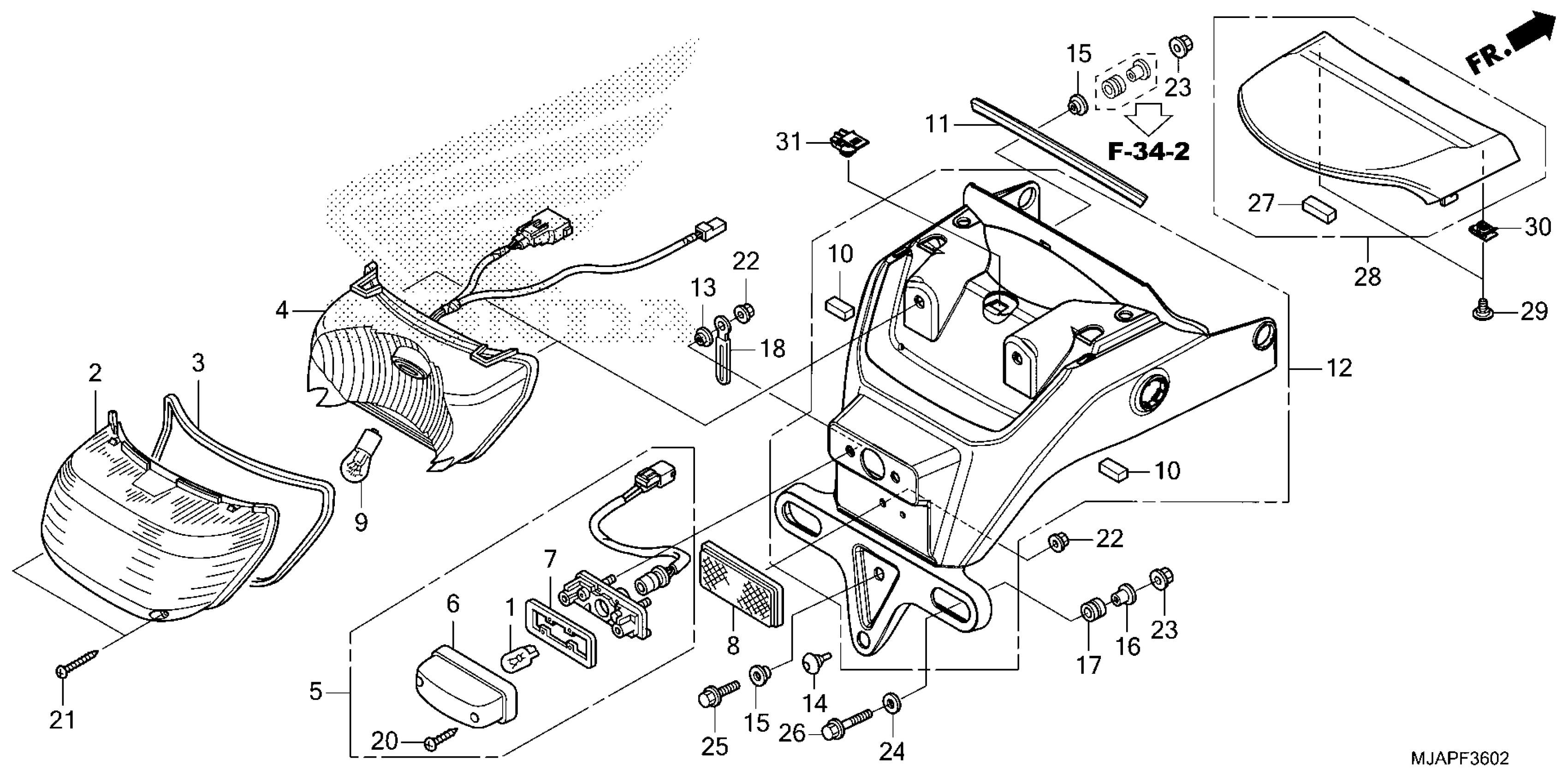

Honda VT750C2BA (24) MOTORCYCLE, JPN, VIN# JH2RC537-RK400001 TO JH2RC537-RK999999 TAILLIGHT (3) Diagram

#

Description
Price

1

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.74

2

LENS, TAILLIGHT

33702-MFE-671

$24.88

3

GASKET, TAILLIGHT

33703-MFE-671

$4.44

4

BASE COMP TAILLIGHT

33707-MJA-AT1

$29.88

5

LIGHT ASSY., LICENSE

33720-MJA-AT1

$66.43

6

COVER, LICENSE

33721-GET-671

$17.66

7

GASKET, LENS

33729-MCZ-003

$8.75

8

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.92

9

BULB, TAIL/STOP LIGHT (12V 21/5W) (STANLEY) (FR.)

34906-447-711

$8.64

10

RUBBER, RADIATOR GRILLE

19033-MFR-670

$1.50

11

MOUL, RUBBER

80104-MJA-AT0

$4.13

12

FENDER A ASSY., RR.

80105-MJA-AT0

$23.68

13

COLLAR, RR. FENDER

80114-KG7-000

$3.96

14

PLUG, RR. COWL (NOT AVAILABLE)

80501-415-000

$2.44

15

WASHER (6X20)

90401-373-770

$5.24

16

COLLAR, RR. FENDER

90502-GG2-000

$5.49

17

RUBBER, CONTROL BOX

90852-898-000

Unavailable

18

CLIP (2X60)

91410-679-000

$9.27

20

SCREW, TAPPING (4X16)

93901-24480

$0.82

21

SCREW, TAPPING (4X30)

93901-347G0

$2.04

22

NUT, FLANGE (5MM)

94050-05000

$1.31

23

NUT, FLANGE (6MM)

94050-06000

$0.60

24

WASHER, PLAIN (6MM)

94103-06000

Unavailable

25

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

26

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

27

RUBBER, OVER HEAD COVER

12342-MEG-300

$1.25

28

COVER, TAILLIGHT

80121-MJA-AT0

$9.28

29

SCREW, SPECIAL (5X11)

90122-MJK-N20

$2.29

30

NUT, CLIP (5MM)

90677-KAN-961

$3.89

31

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95
