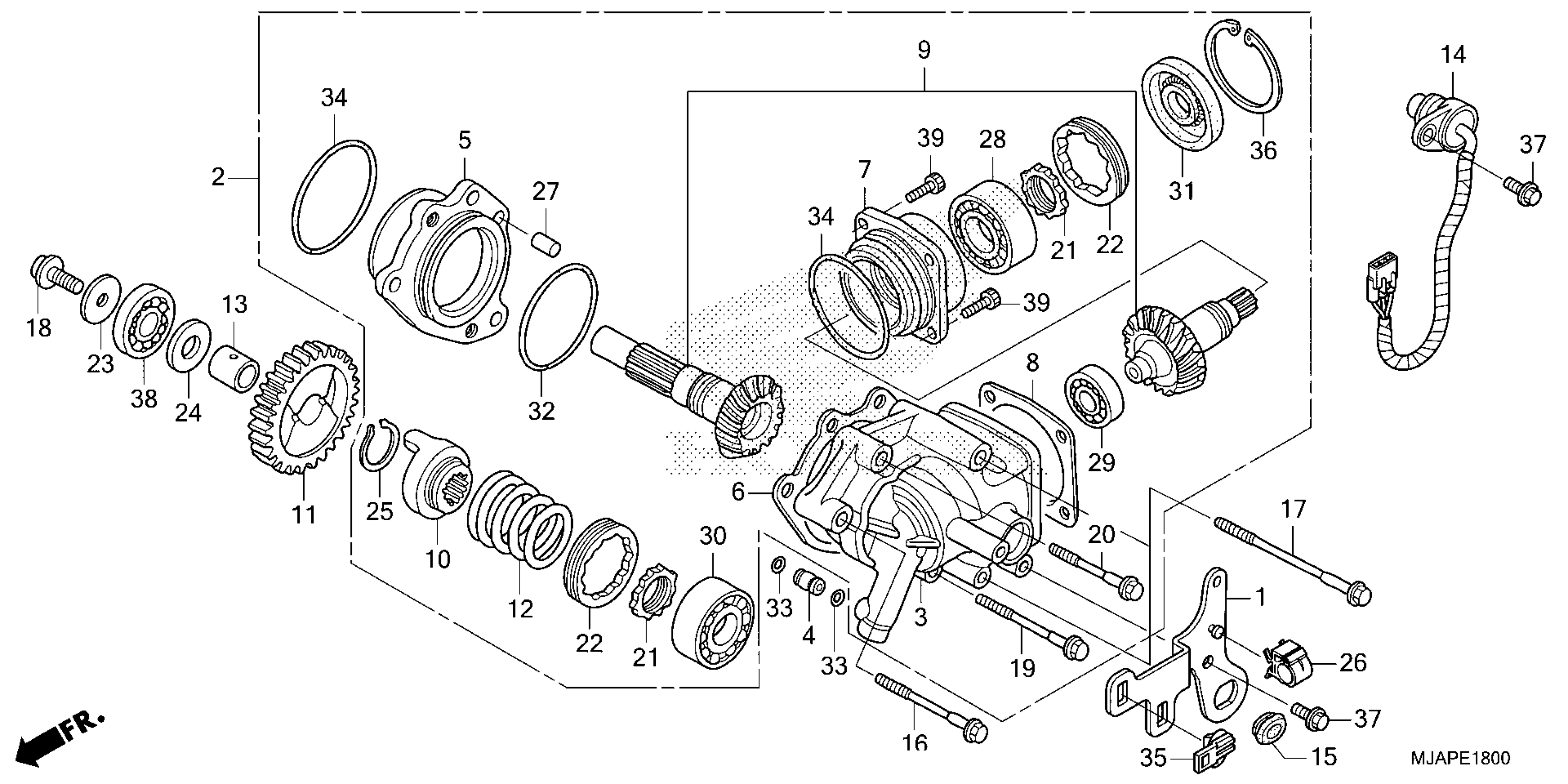

Honda VT750C2BA (24) MOTORCYCLE, JPN, VIN# JH2RC537-RK400001 TO JH2RC537-RK999999 SIDE GEAR CASE Diagram

#

Description
Price

1

STAY, L. RR. COVER

11380-MEG-A60

$8.44

2

CASE ASSY., SIDE GEAR

21100-MEG-000

$1,250.08

3

CASE, SIDE GEAR

21200-MEG-000

$563.93

4

ORIFICE, SIDE GEAR CASE

21215-ME9-000

$9.61

5

HOLDER, FINAL DRIVESHAFT BEARING

21281-MS9-750

$59.67

6

SHIM, FINAL DRIVESHAFT (0.30)

21309-MEG-000

$12.79

6

SHIM, FINAL DRIVESHAFT (0.35)

21310-MEG-000

$12.79

6

SHIM, FINAL DRIVESHAFT (0.40)

21311-MEG-000

$12.79

6

SHIM, FINAL DRIVESHAFT (0.45)

21312-MEG-000

$12.79

6

SHIM, FINAL DRIVESHAFT (0.50)

21313-MEG-000

$12.79

6

SHIM, FINAL DRIVESHAFT (0.55)

21314-MEG-000

$12.79

6

SHIM, FINAL DRIVESHAFT (0.60)

21315-MEG-000

$12.79

6

SHIM, FINAL DRIVESHAFT (0.65)

21316-MEG-000

$12.79

6

SHIM, FINAL DRIVESHAFT (0.70)

21317-MEG-000

$12.79

6

SHIM, FINAL DRIVESHAFT (0.75)

21318-MEG-000

$12.79

7

HOLDER, CROSS SHAFT BEARING

21371-MS9-000

$64.00

8

SHIM, CROSS SHAFT (0.20)

21377-MB0-770

$23.13

8

SHIM, CROSS SHAFT (0.25)

21378-MB0-770

$22.13

8

SHIM, CROSS SHAFT (0.30)

21379-MB0-770

$22.13

8

SHIM, CROSS SHAFT (0.35)

21380-MB0-770

$22.13

8

SHIM, CROSS SHAFT (0.40)

21381-MB0-770

$25.25

8

SHIM, CROSS SHAFT (0.45)

21382-MB0-770

$25.25

8

SHIM, CROSS SHAFT (0.50)

21383-MB0-770

$25.25

8

SHIM, CROSS SHAFT (0.55)

21384-MB0-770

$25.25

8

SHIM, CROSS SHAFT (0.60)

21385-MB0-770

$25.25

9

SHAFT SET, FINAL DRIVE

23200-MEG-000

$283.11

10

LIFTER, DAMPER

23721-ME9-000

$76.34

11

GEAR, DAMPER SHAFT (32T)

23726-MBL-610

$96.52

12

SPRING, DAMPER

23732-MS9-750

$24.34

13

COLLAR (20X24X19.8)

23733-MS9-000

$9.67

14

SENSOR ASSY., SPEED

37700-MFE-641

$89.03

15

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

16

BOLT, UBS (8X65)

90029-MBL-610

$2.79

17

BOLT, UBS (8X110)

90030-MBL-610

$3.80

18

BOLT, SPECIAL (10MM)

90037-ME9-000

$7.25

19

BOLT, UBS (8X60)

90063-MB0-003

$6.00

20

BOLT, UBS (8X45)

90065-HA8-680

$7.10

21

NUT, LOCK (30MM)

90241-MB0-000

$21.10

22

NUT, LOCK (64MM)

90242-MB0-000

$32.52

23

WASHER (10MM)

90409-952-000

$2.39

24

WASHER A, THRUST (20MM)

90451-704-000

$3.20

25

CIRCLIP (OUTER) (28MM)

90602-463-000

$3.64

26

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

27

PIN, DOWEL (10X24)

90701-MG8-000

$4.70

28

BEARING, RADIAL BALL (5206) This part replaces 91008-300-008.

91012-MG7-003

$95.20

28

BEARING, RADIAL BALL (5206)

91012-MG7-003

$95.20

29

BEARING, BALL (6303) (KOYO)

91011-MB0-003

$30.64

29

BEARING, BALL (6303) (KOYO) This part replaces 91011-MB0-004.

91011-MB0-003

$30.64

30

BEARING, RADIAL BALL (5206)

91012-MG7-003

$95.20

31

OIL SEAL (25X66X8.5) (ARAI)

91205-MG7-003

$18.78

32

O-RING (64X2.5)

91301-MS9-003

$2.48

33

O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI) This part replaces 91307-422-000.

91313-MA6-005

$2.61

33

O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI)

91313-MA6-005

$2.61

34

O-RING (69.5X3) (ARAI)

91314-MG7-003

$9.24

35

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.67

36

CIRCLIP (INNER) (65MM)

94520-65120

$3.05

37

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

38

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

39

BOLT, SOCKET (8X22)

96700-08022-17

$2.02
