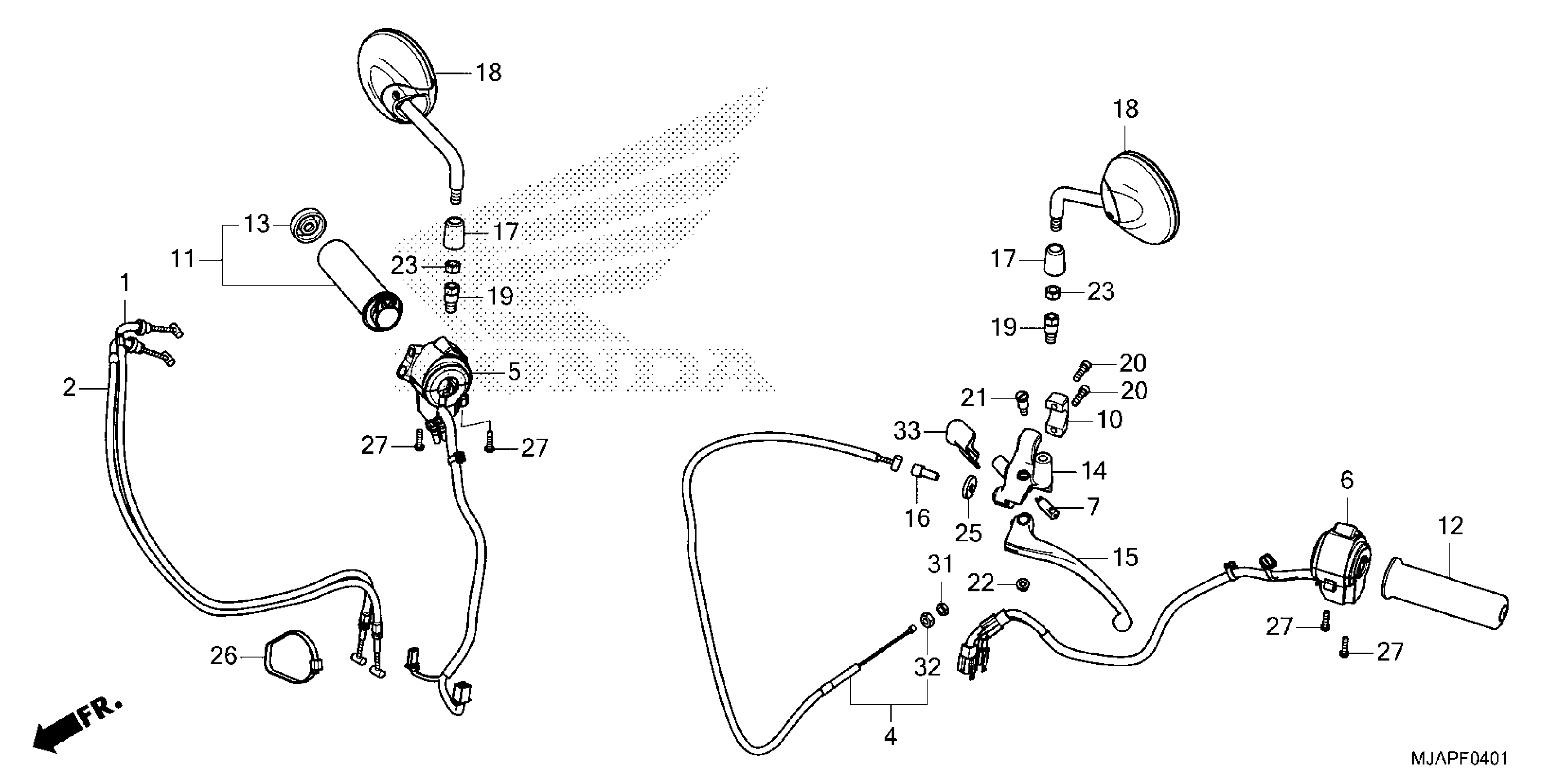

Honda VT750C2BA (24) MOTORCYCLE, JPN, VIN# JH2RC537-RK400001 TO JH2RC537-RK999999 HANDLE LEVER@SWITCH@CABLE (2) Diagram

CABLE COMP A, THROT

17910-MJA-AT1

$22.76

CABLE COMP B, THROT

17920-MJA-AT1

$22.76

CABLE COMP, CLUTCH

22870-MJA-AT1

$19.94

SW ASSY., ST STOP

35130-MJA-AT1

$89.85

SW, TURN SIGNAL

35200-MJA-AT1

$100.29

SWITCH, FR. LEVER (TOYO DENSO)

35330-413-003

$20.11

HOLDER, MASTER CYLINDER (NISSIN)

45517-MAV-751

$19.01

GRIP, R. HANDLE

53145-MFE-A40

$43.72

GRIP, L. HANDLE

53166-MFE-A40

$30.13

CAP, R. GRIP END

53167-MFE-A40

$5.69

BRACKET, HANDLE LEVER

53172-MBA-000

$29.04

LEVER, L. HANDLE

53178-MAV-750

$16.90

BOLT, CLUTCH CABLE ADJUSTING

53192-349-690

$6.72

CAP, LOCK NUT

88119-K87-A00

$2.00

MIRROR *NH105* (MAT BLACK) (R. SIDE)

88210-MLA-A01ZA

$30.67

BOLT, ADAPTER (10MM)

90101-K20-901

$2.21

BOLT, SOCKET (6X22)

90111-GHB-660

$0.91

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.24

NUT, CAP (6MM)

90201-415-000

Unavailable

NUT, HEX. (10MM) (LEFT HAND THREAD)

90301-K20-901

$0.71

NUT, FIXING

90321-KT7-760

$9.59

BAND, WIRE HARNESS

90620-SB2-003

$25.84

SCREW-WASHER (5X20)

90507-MGE-640

$1.32

NUT, HEX. (8MM)

94002-08070-0S

$1.31

NUT, HEX. (8MM)

94030-08070

$0.44

COVER, CLUTCH SWITCH

35152-MGZ-J00

$1.79
