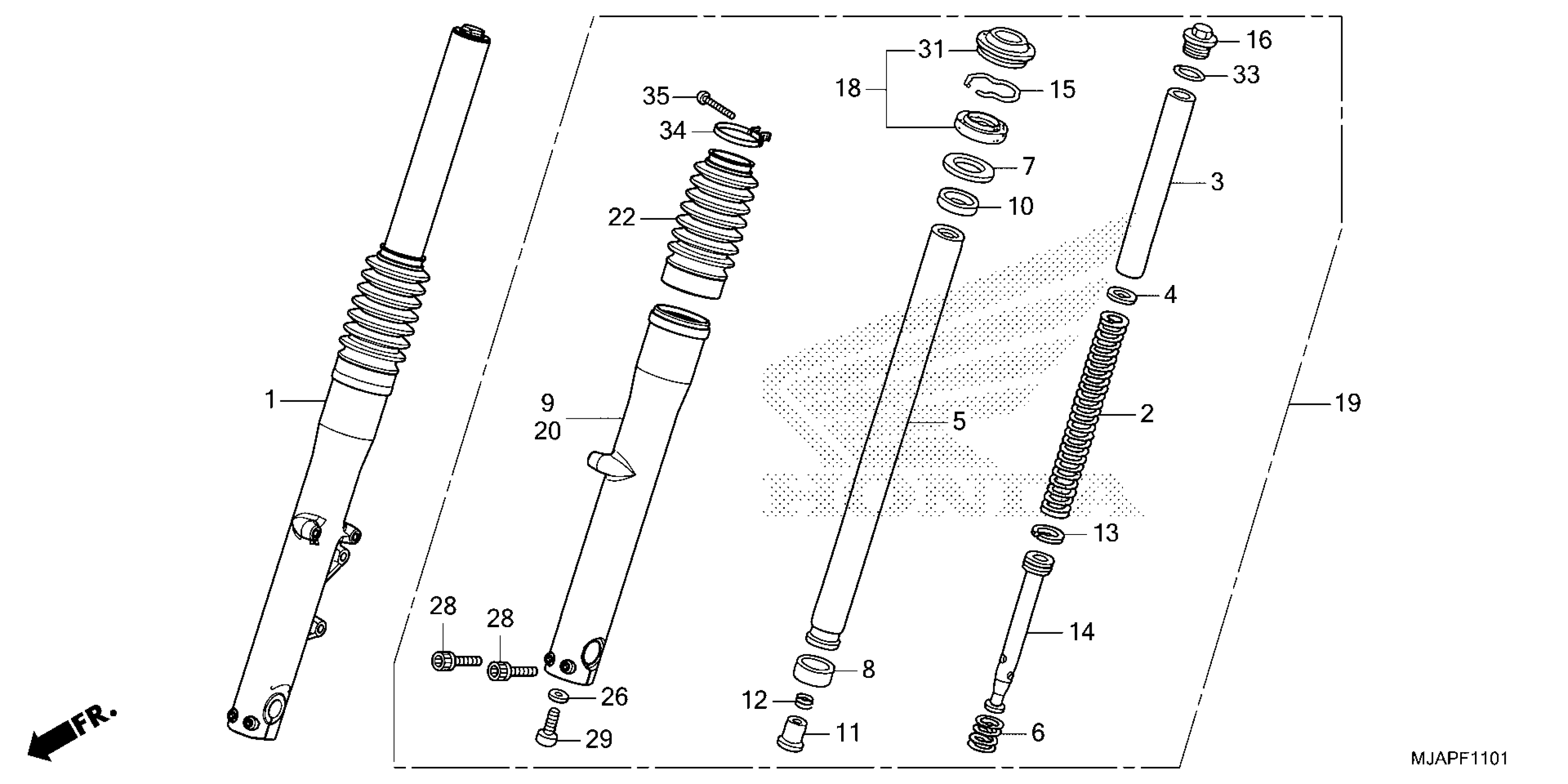

Honda VT750C2BA (24) MOTORCYCLE, JPN, VIN# JH2RC537-RK400001 TO JH2RC537-RK999999 FRONT FORK (2) Diagram

Description

Price

FORK ASSY., FR. R

51400-MJA-CU1

$687.18

SPRING, FR. FORK

51401-MEG-003

$71.97

SPACER, SPRING

51402-MEG-003

$10.51

WASHER

51404-MBA-003

$5.22

PIPE, FR. FORK

51410-MEG-003

$309.98

SPRING, FR. REBOUND

51411-MBA-003

$6.75

WASHER

51412-KA4-004

$6.75

BUSH, SLIDER

51415-MEG-003

$7.61

CASE, RH BOT

51420-MJA-CU1

$322.44

BUSH, GUIDE

51424-MJA-CU1

$7.49

PIECE, OIL LOCK

51431-MBA-003

$16.86

SPRING, OIL LOCK

51433-MBA-J50

$3.87

RING, PISTON

51437-MCT-003

$4.93

PIPE, SEAT

51440-MEG-003

$42.30

RING, SNAP

51447-KA4-004

$4.24

BOLT, FR. FORK

51450-MJA-CU1

$35.03

SEAL SET, FR. FORK

51490-MCT-003

$17.74

FORK ASSY., FR. L

51500-MJA-CU1

$663.00

CASE, LH BOT

51520-MJA-CU1

$292.93

BOOT, FR. FORK

51611-MJA-CU1

$36.51

WASHER, OIL BOLT (KAYABA)

52442-KA3-731

$2.34

BOLT, SOCKET (8X35)

90109-MCR-D00

$2.84

BOLT, SOCKET (10X25)

90116-KK0-004

$5.94

DUST SEAL

91254-MCK-A01

$12.17

O-RING (31.7X3.5)

91356-KT1-671

$3.13

BAND, BOOT

51612-MJA-CU1

$5.79

SCREW

91256-MJA-CU1

$1.54
