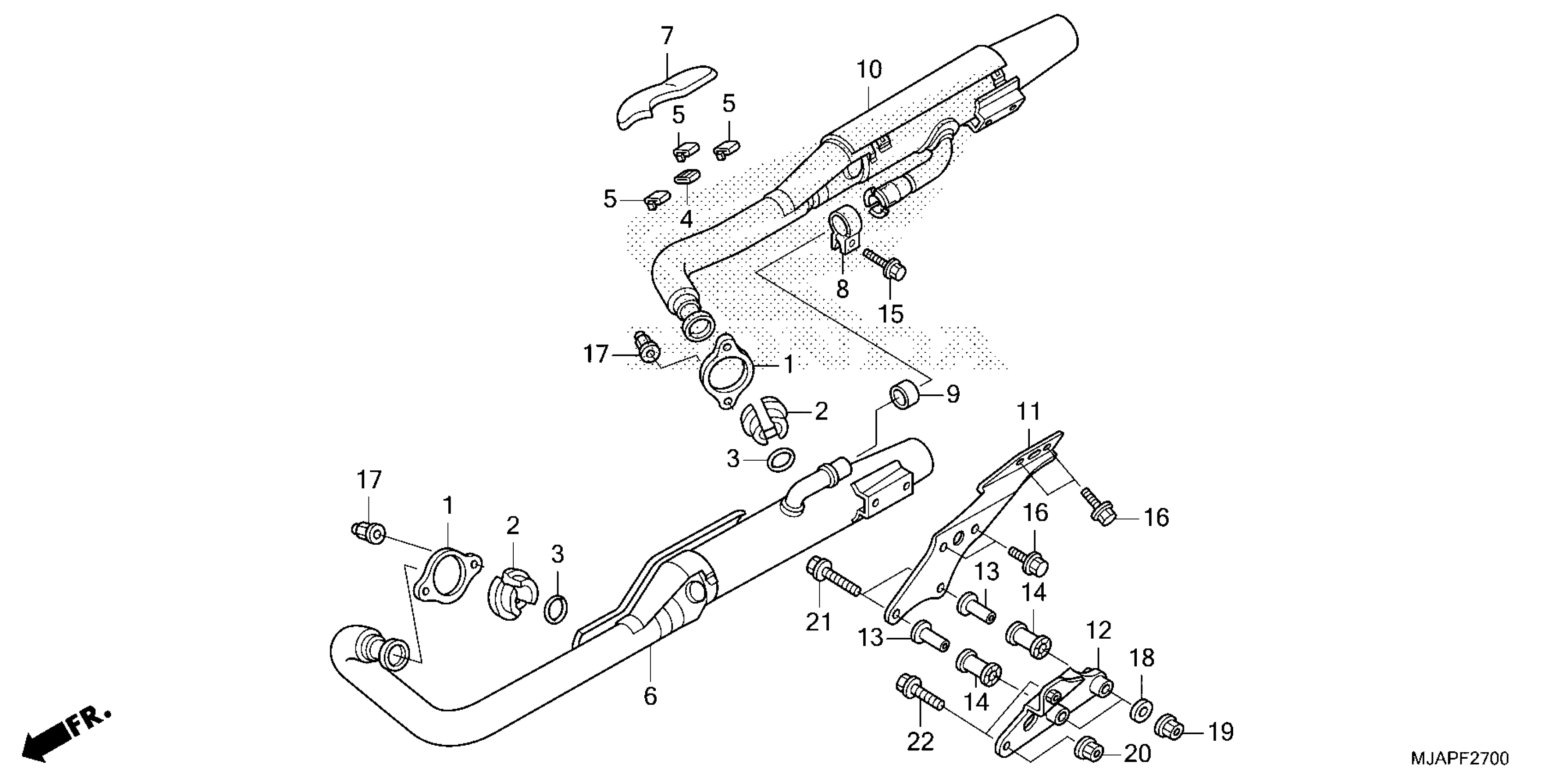

Honda VT750C2BA (24) MOTORCYCLE, JPN, VIN# JH2RC537-RK400001 TO JH2RC537-RK999999 EXHAUST MUFFLER Diagram

JOINT EXH.PIPE

18231-MJA-AT1

$13.56

COLR, EX. PIPE JOINT

18233-MJA-AT0

$12.23

GASKET, EX. PIPE

18291-MM5-860

$5.17

RUBBER, PROTECTOR GASKET

18293-MFE-B00

$2.98

RUBBER, PROTECTOR

18293-MN0-000

$2.13

MUFFLER COMP, FR.

18300-MJA-AT1

$1,410.15

PROTECTOR, RR. EX.

18315-MJA-AT1

$79.52

BAND, L. EX. PIPE

18374-ML4-003

$16.36

GASKET, MUFFLER

18391-ML8-000

$9.49

MUFFLER COMP, RR.

18400-MJA-AT1

$1,410.15

STAY, MUFFLER

18415-MFE-670

$52.33

BRACKET, MUFFLER

18455-MFE-670

$103.74

COLLAR, MOUNTING RUBBER

50607-KK6-000

$9.13

RUBBER, MUFFLER MOUNTING

50608-KK6-000

$7.79

BOLT, FLANGE (8X32)

90125-MGR-670

$3.03

BOLT, FLANGE (8X16)

90166-S87-A00

$1.49

NUT, CAP (8MM)

90304-ME1-670

$5.94

WASHER (8.3MM)

90534-011-000

$1.49

NUT, FLANGE (8MM)

94050-08070

$1.49

NUT, FLANGE (10MM)

90303-428-900

$3.35

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.35

BOLT, FLANGE (8X55)

95701-08055-07

$1.85

BOLT, FLANGE (10X50)

95701-10050-07

$1.85
