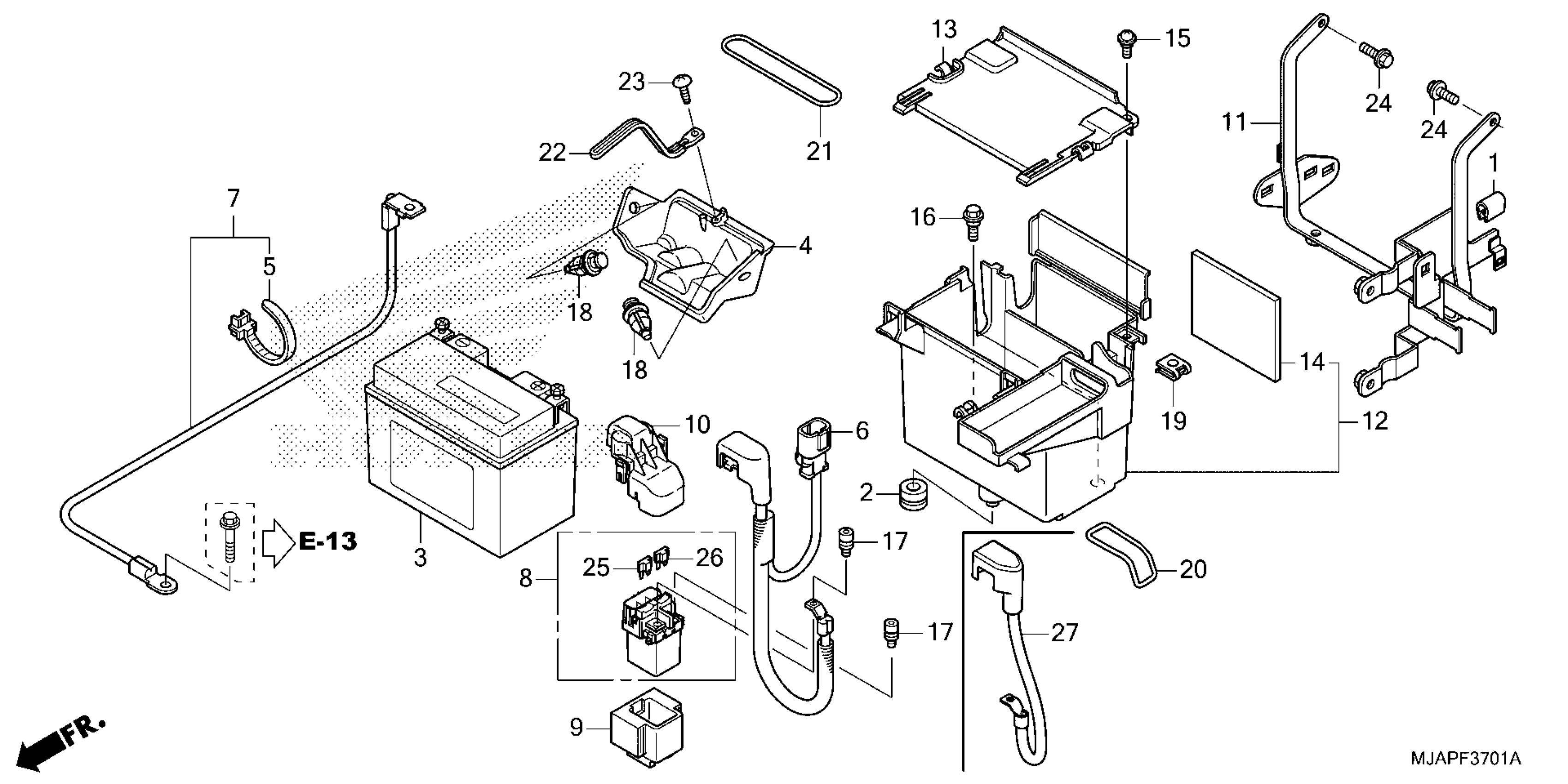

Honda VT750C2BA (24) MOTORCYCLE, JPN, VIN# JH2RC537-RK400001 TO JH2RC537-RK999999 BATTERY (2) Diagram

TRIM, FUEL TANK

17516-HC4-000

$3.90

RUBBER, RADIATOR MOUNTING

19051-KA4-000

$3.80

BATTERY (YTZ14S) (YUASA) (MSDS)

31500-MCR-D03

$196.34

BAND, WIRE HARNESS

32161-GFL-J41

$1.85

CABLE, BATTERY GROUND

32601-MEG-H10

$40.11

SWITCH ASSY., STARTER MAGNETIC

35850-MFL-003

$76.14

RUBBER, SHOCK

35856-KBG-007

$10.43

COVER, MAGNETIC SWITCH

35857-MFN-D00

$8.72

HOLDER, BATTERY BOX

50322-MEG-H10

$102.92

BOX, BATTERY

50325-MEG-H10

$86.49

COVER, BATTERY

50326-MEG-H10

$26.16

CUSHION, BATTERY

50328-MFE-640

$3.84

SCREW, SPECIAL (5X12)

90105-MB1-000

$2.92

BOLT, FLANGE (6MM)

90111-GJ5-000

$4.24

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

NUT, CLIP (5MM)

90677-GR1-003

$4.27

O-RING (48.5X2.5)

91301-MCH-003

$5.60

O-RING (109.4X3.1)

91311-MFE-640

$6.39

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

FUSE, MINI (20A)

98200-42000

$1.49

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.67

CABLE, START BAT

32401-MJA-AT0

$19.93
