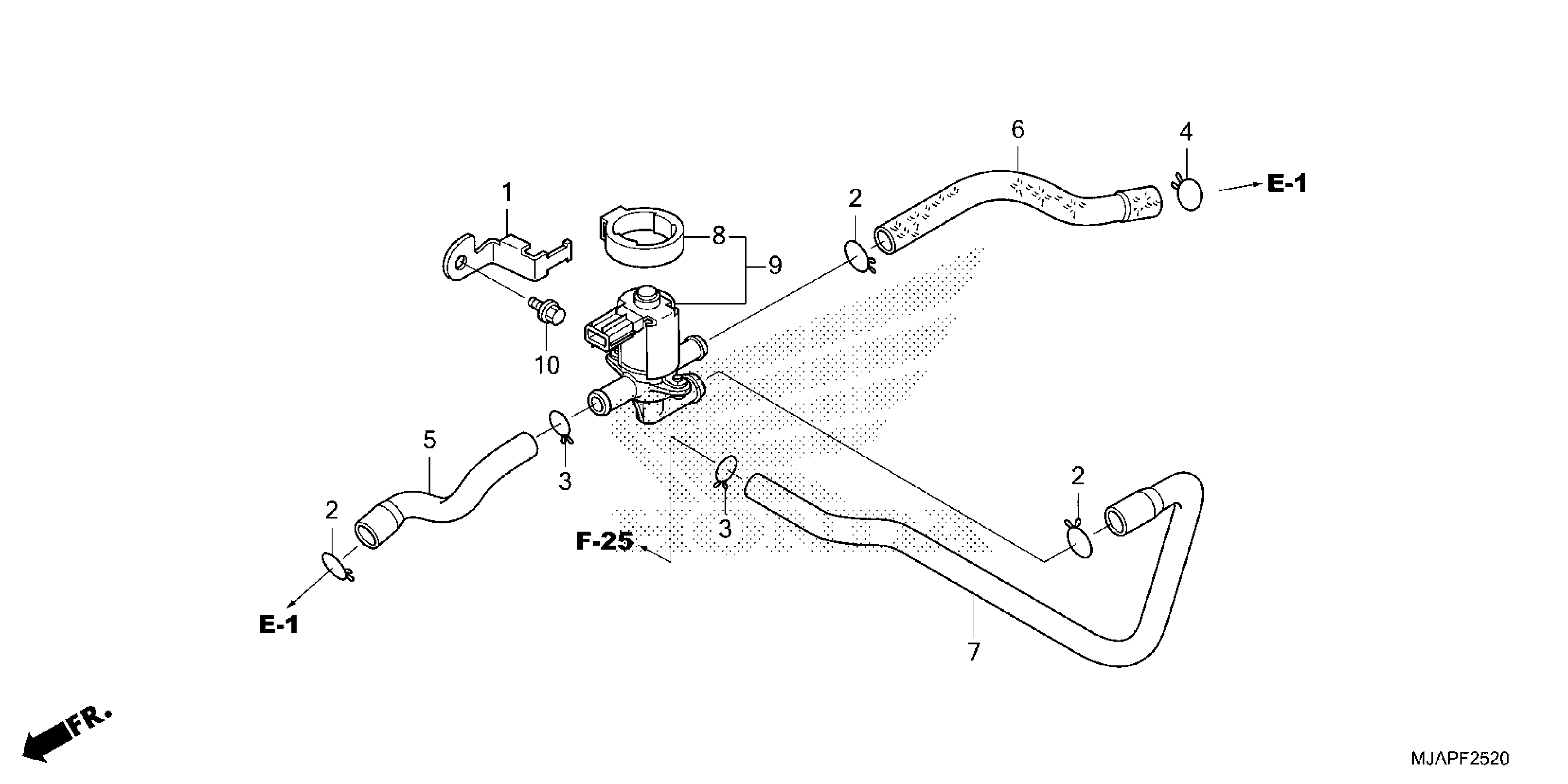

Honda VT750C2BA (24) MOTORCYCLE, JPN, VIN# JH2RC537-RK400001 TO JH2RC537-RK999999 AIR INJECTION VALVE Diagram

STAY, EX. AIR INJECTION VALVE

17269-MFE-640

$3.34

CLIP, BREATHER TUBE

17554-MB0-000

$2.97

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

CLIP, AIR HOSE (21.5)

18532-634-670

$7.94

TUBE A, AIR INJECTION CONTROL VALVE

18651-MFE-640

$9.26

TUBE B, AIR INJECTION CONTROL VALVE

18652-MFE-640

$17.51

TUBE C, AIR INJECTION CONTROL VALVE

18653-MFE-640

$15.30

SUSPENSION, SOLENOID VALVE

36172-MCA-A61

$3.26

VALVE ASSY., EX. AIR INJECTION

36450-MCA-A63

$65.38

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62
