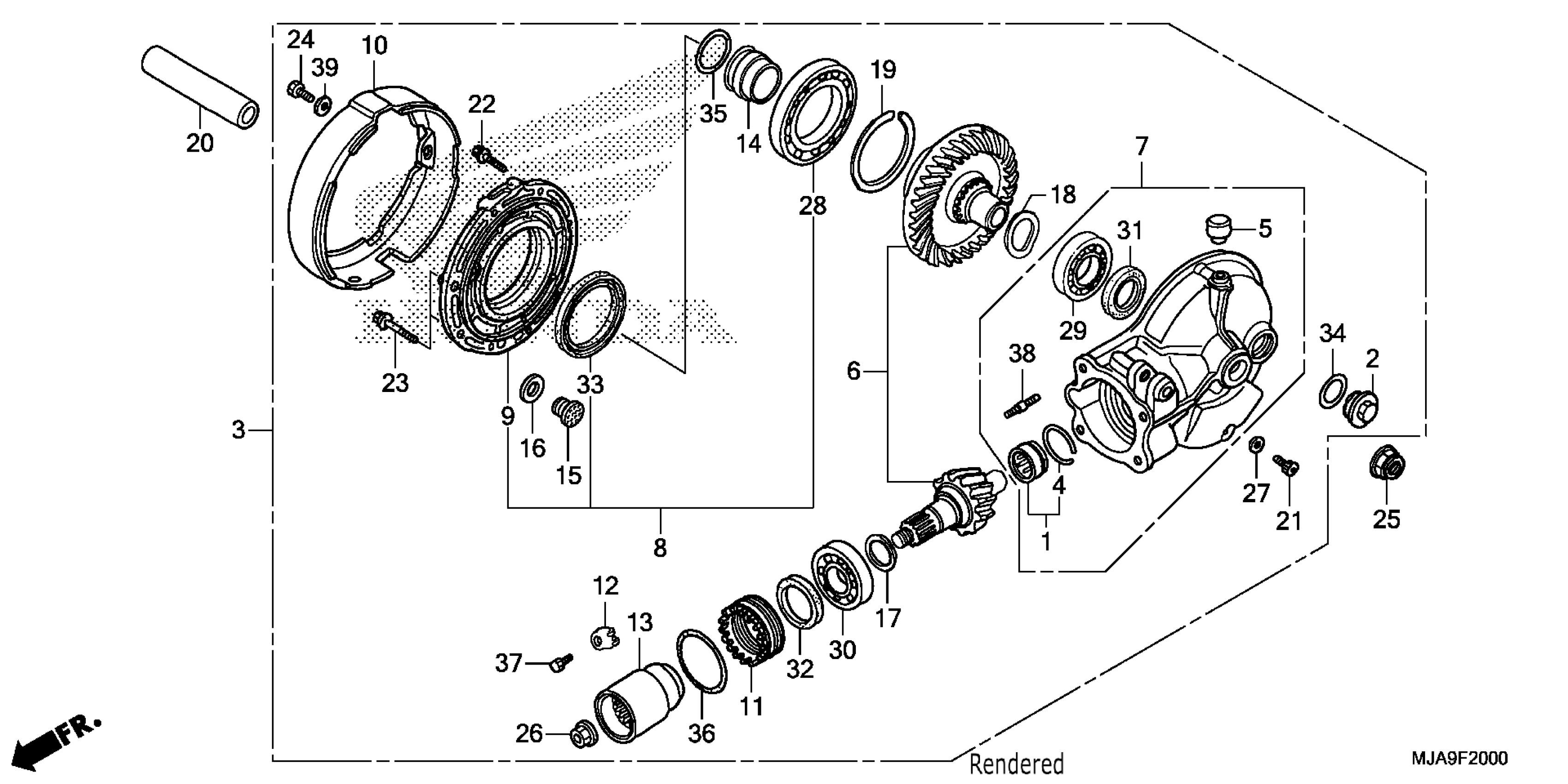

Honda VT750C2BA (17) MOTORCYCLE, JPN, VIN# JH2RC537-HK700001 FINAL DRIVEN GEAR Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06910-MBL-610

$25.08

2

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

3

GEAR ASSY., FINAL

41300-MFE-A40

$1,901.30

4

RING, STOPPER

41305-MB4-770

$5.62

5

CAP, BREATHER

41306-MB0-020

$9.24

6

GEAR SET, FINAL

41310-MM8-305

$509.26

7

CASE SET, FINAL

41311-MFE-A40

$1,025.03

8

COVER SUB-ASSY., FINAL GEAR

41320-MBL-611

$203.89

9

COVER, GEAR CASE

41321-ME5-771

$148.38

10

PLATE, DUST GUARD

41324-MFE-A40

$82.49

11

RETAINER, BEARING

41331-ME9-010

$132.46

12

LOCK A, BEARING ADJUSTING (SINGLE TAB)

41332-415-000

$2.51

12

LOCK B, BEARING ADJUSTING (DOUBLE TABS)

41333-415-000

$2.51

13

JOINT, PINION

41410-ME9-770

$146.31

14

HOLDER, O-RING

41433-MB0-010

$12.90

15

PIN, RING GEAR STOPPER

41436-MB0-310

$31.90

16

SHIM A, STOPPER PIN (0.10)

41437-MB0-310

$5.45

16

SHIM B, STOPPER PIN (0.15)

41438-MB0-310

$5.14

17

SHIM A, PINION GEAR (1.82)

41450-MG8-000

$7.46

17

SHIM B, PINION GEAR (1.88)

41451-MG8-000

$7.46

17

SHIM C, PINION GEAR (1.94)

41452-MG8-000

$7.11

17

SHIM D, PINION GEAR (2.00)

41453-MG8-000

$7.11

17

SHIM E, PINION GEAR (2.06)

41454-MG8-000

$7.11

17

SHIM F, PINION GEAR (2.12)

41455-MG8-000

$7.11

17

SHIM G, PINION GEAR (2.18)

41456-MG8-000

$7.11

18

WASHER, SPECIAL (35X40)

41510-MB0-003

$12.26

19

SPACER A, RING GEAR (1.82)

41530-MB0-000

$16.64

19

SPACER B, RING GEAR (1.88)

41531-MB0-000

$16.64

19

SPACER C, RING GEAR (1.94)

41532-MB0-000

$16.64

19

SPACER D, RING GEAR (2.00)

41533-MB0-000

$16.64

19

SPACER E, RING GEAR (2.06)

41534-MB0-000

$16.64

19

SPACER F, RING GEAR (2.12)

41535-MB0-000

$16.64

19

SPACER G, RING GEAR (2.18)

41536-MB0-000

$16.64

19

SPACER H, RING GEAR (2.24)

41537-MB0-000

$16.64

19

SPACER I, RING GEAR (2.30)

41538-MB0-000

$16.64

20

COLLAR B, RR. DISTANCE

42625-MAH-000

$36.84

21

BOLT, SOCKET (8X11)

90109-ME5-770

$5.73

22

BOLT, FLANGE (8X27)

90133-MEG-A60

$1.49

23

BOLT, FLANGE (10X35)

90134-MGE-000

$2.89

24

BOLT, HEX. (6X16)

90170-MB0-000

$2.54

25

NUT, FLANGE (18MM)

90306-MCH-003

$13.13

26

NUT, HEX. (16MM)

90381-MT3-000

$7.95

27

WASHER (8MM)

90471-580-000

$2.92

28

BEARING, RADIAL BALL (16012C3)

91051-MB0-005

$120.87

28

BEARING, RADIAL BALL (16012C3) This part replaces 91051-MG8-005.

91051-MB0-005

$120.87

29

BEARING, RADIAL BALL (57/34C3)

91052-MB0-003

$46.23

29

BEARING, RADIAL BALL (57/34C3) This part replaces 91052-MG8-005.

91052-MB0-003

$46.23

30

BEARING, RADIAL BALL (6305)

91061-MB0-005

$125.16

30

BEARING, RADIAL BALL (6305) This part replaces 91061-MG8-005.

91061-MB0-005

$125.16

31

OIL SEAL (34X50X7) (ARAI)

91261-MB0-003

$12.13

31

OIL SEAL (34X50X7) (ARAI) This part replaces 91261-MB0-005.

91261-MB0-003

$12.13

32

OIL SEAL (39X51X7) (NOK) This part replaces 91262-ME9-003.

91262-ME9-005

$15.51

32

OIL SEAL (39X51X7) (NOK)

91262-ME9-005

$15.51

33

OIL SEAL (60X80X8) (ARAI) This part replaces 91265-MB0-000.

91265-MB0-003

$15.95

33

OIL SEAL (60X80X8) (ARAI)

91265-MB0-003

$15.95

34

O-RING (30.8MM) (Honda Code 0001065)

91302-001-020

$3.75

35

O-RING (35.2X2.4) (NOK) This part replaces 91356-MB0-000.

91356-MB0-005

$3.35

35

O-RING (35.2X2.4) (NOK)

91356-MB0-005

$3.35

36

O-RING (58.5X3.5)

91359-MB0-000

$5.25

37

BOLT, HEX. (6X12) BOLT, FLANGE (6X12)

92101-06012-0A

$1.49

38

BOLT, STUD (10X32)

92900-10032-0E

$3.67

39

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49
