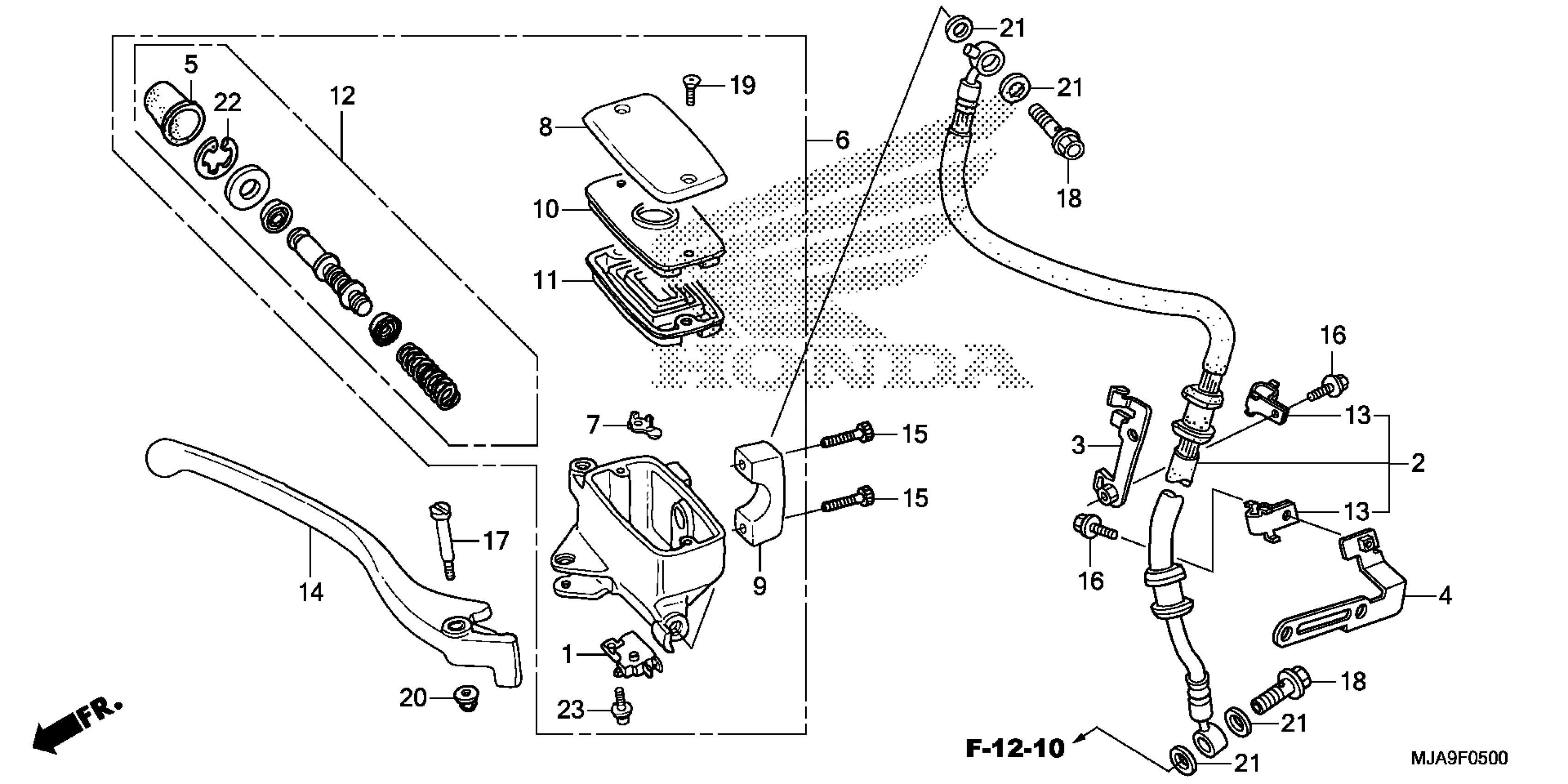

Honda VT750C2BA (15) SHADOW PHANTOM, JPN, VIN# JH2RC537-FK500001 TO JH2RC537-FK599999 FRONT BRAKE MASTER CYLINDER (1) Diagram

SWITCH ASSY., FR. STOP

35340-MM5-601

$11.99

HOSE, FR. BRAKE This part replaces 45126-MFE-A41.

45126-MJA-AH1

$64.99

HOSE, FR. BRAKE

45126-MJA-AH1

$64.99

STAY, FR. BRAKE HOSE

45130-MEG-A40

$8.85

BRACKET, R. FR. HOSE CLIP

45138-MEG-A40

$7.63

BOOT

45504-410-003

$11.17

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN) This part replaces 45510-MAV-305.

45510-MAV-751

$194.63

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-MAV-751

$194.63

PROTECTOR

45512-MA6-006

$4.09

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.57

HOLDER, MASTER CYLINDER (NISSIN)

45517-MAV-751

$19.01

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$9.79

DIAPHRAGM (NISSIN)

45520-MM5-006

$13.87

MASTER CYLINDER SET (SET INCLD.7 PARTS,ITEM SHOWN BELOW SPRING DOES NOT APPLY)

45530-MN9-305

$46.60

CLAMP, BRAKE HOSE

52115-ML8-670

$5.01

LEVER, R. HANDLEBAR This part replaces 53175-MR5-305.

53175-MR5-003

$14.96

BOLT, SOCKET (6X22)

90101-MCL-000

$1.34

BOLT, FLANGE (6X12)

90103-MCS-G00

$1.19

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

SCREW, FLAT (4X12)

93600-04012-0G

$0.84

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.84

NUT, CAP (6MM)

90201-415-000

$1.99

WASHER, OIL BOLT

90545-300-000

$6.56

CIRCLIP

90651-MA5-671

$2.38

SCREW-WASHER (4X12)

93893-04012-07

$1.24

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.24
