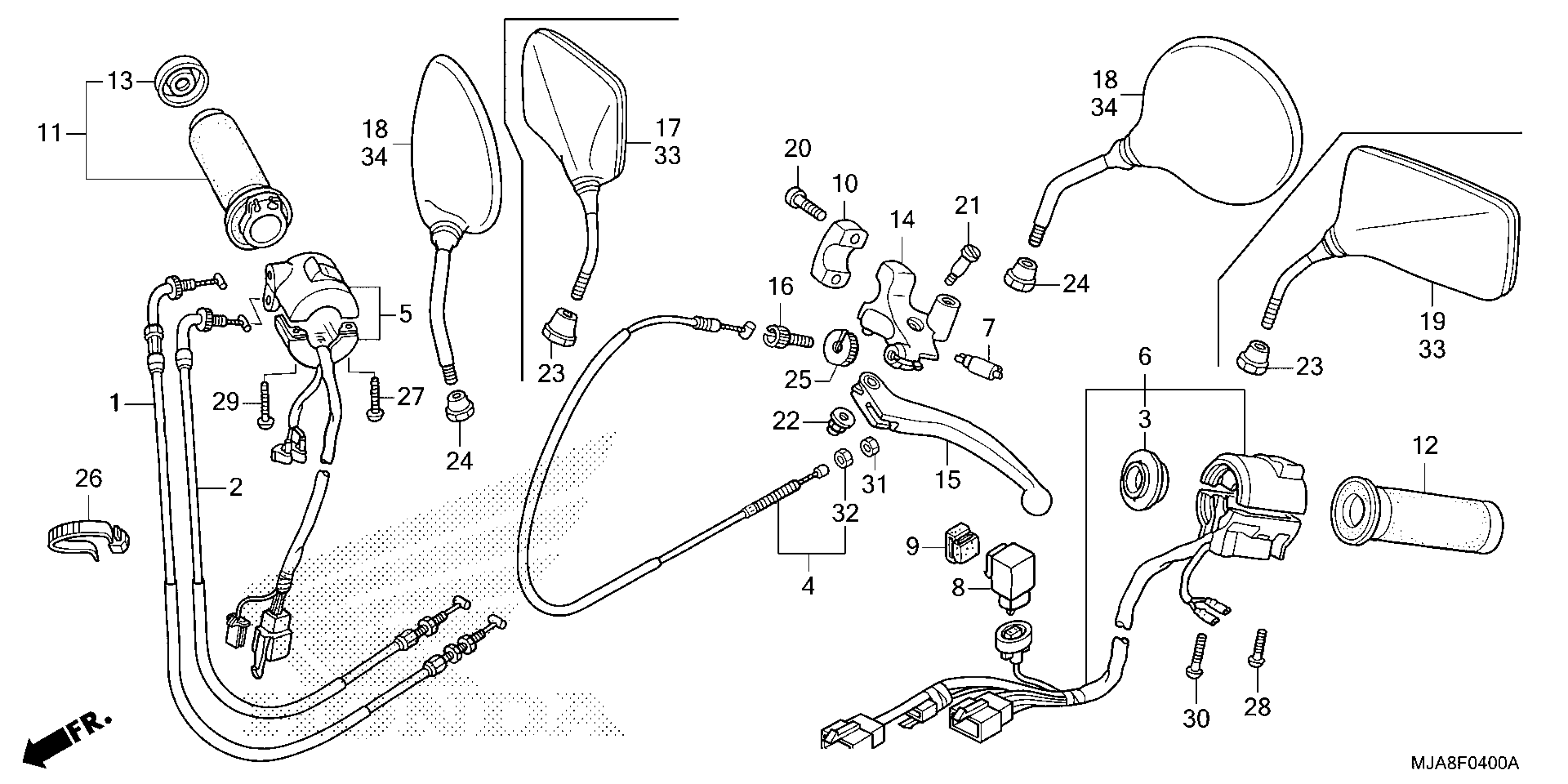

Honda VT750C2BA (14) SHADOW PHANTOM, JPN, VIN# JH2RC537-EK400001 HANDLE LEVER@SWITCH@CABLE Diagram

CABLE A, THROTTLE

17910-MFE-A40

$25.51

CABLE B, THROTTLE

17920-MFE-A40

$25.51

ADAPTER

17962-MFE-A40

$14.26

CABLE, CLUTCH

22870-MFE-A40

$30.46

SWITCH ASSY., ENGINE STOP

35130-MFE-A41

$118.56

SWITCH ASSY., TURN SIGNAL

35200-MFE-A41

$109.17

SWITCH, FR. LEVER (TOYO DENSO)

35330-413-003

$21.91

HOLDER, MASTER CYLINDER (NISSIN)

45517-MAV-751

$20.71

GRIP, R. HANDLE

53145-MFE-A40

$49.05

GRIP, R. HANDLE This part replaces 53145-MFE-305.

53145-MFE-A40

$49.05

GRIP, L. HANDLE

53166-MFE-A40

$37.87

GRIP, L. HANDLE This part replaces 53166-MFE-305.

53166-MFE-A40

$37.87

CAP, R. GRIP END

53167-MFE-A40

$5.96

BRACKET, HANDLE LEVER

53172-MBA-000

$31.64

LEVER, L. HANDLE This part replaces 53178-MAV-305.

53178-MAV-750

$18.40

LEVER, L. HANDLE

53178-MAV-750

$18.40

BOLT, CLUTCH CABLE ADJUSTING

53192-349-690

$7.04

MIRROR, R.

88210-MEA-670

Unavailable

MIRROR, R. This part replaces 88210-MFY-305.

88210-MEA-670

Unavailable

MIRROR, L.

88220-MEA-670

Unavailable

MIRROR, L. This part replaces 88220-MFY-305.

88220-MEA-670

Unavailable

BOLT, SOCKET (6X22)

90101-MCL-000

$1.49

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

NUT, CAP (6MM)

90201-415-000

$2.05

NUT, LOCK

90314-375-000

$12.55

NUT, FIXING

90321-KT7-760

$10.45

BAND, WIRE HARNESS

90620-SB2-003

$24.63

SCREW, PAN (5X20)

93500-05020-0A

$1.49

SCREW, PAN (5X22)

93500-05022-0A

$1.49

SCREW, PAN (5X25) SCREW, PAN (5X32)

93500-05025-0A

$1.49

SCREW, PAN (5X32)

93500-05032-0A

$1.49

NUT, HEX. (8MM)

94002-08070-0S

$1.49

NUT, HEX. (8MM)

94030-08070

$1.49

MIRROR SET

88100-MEA-305

$69.41
