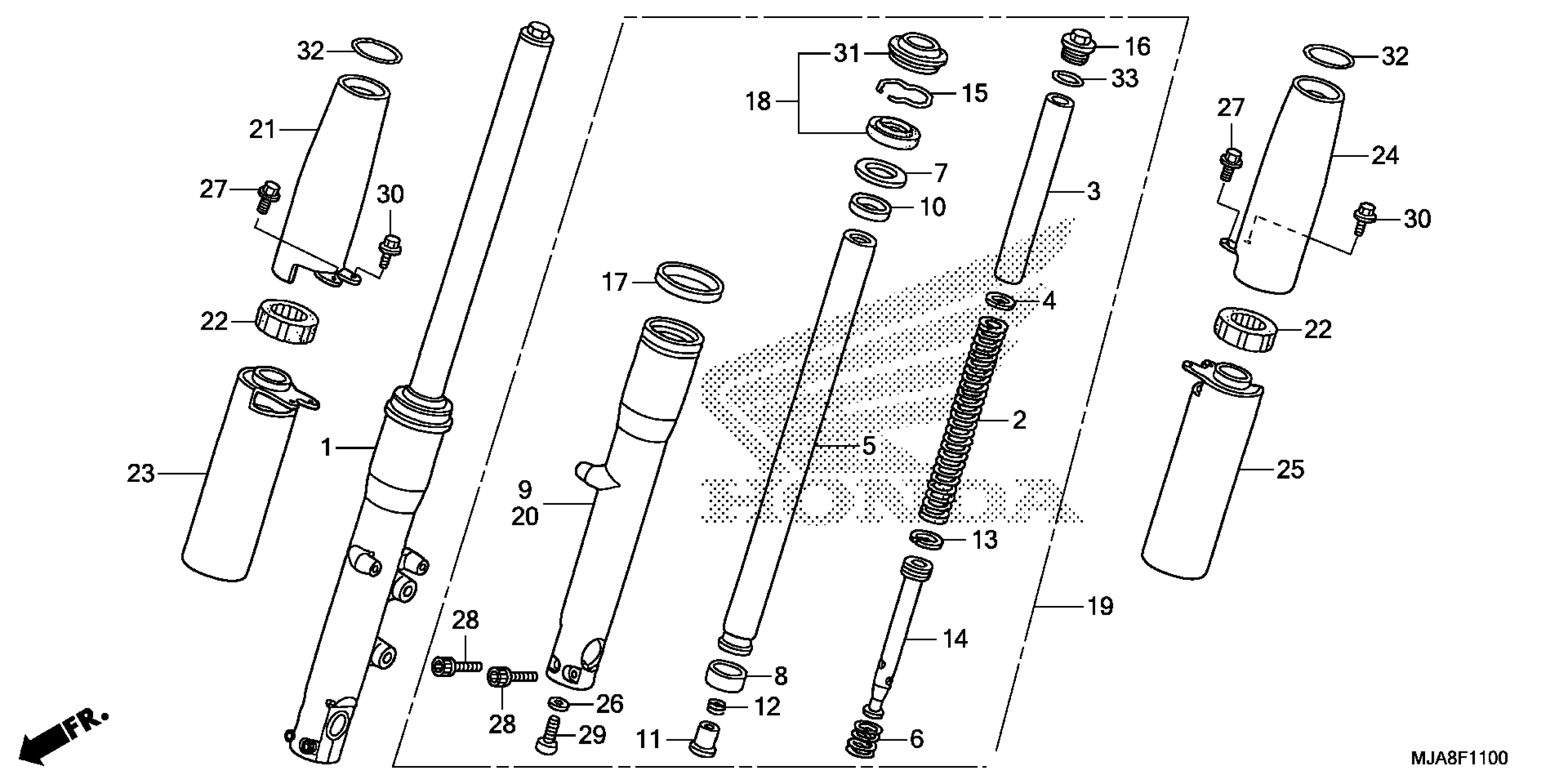

Honda VT750C2BA (14) SHADOW PHANTOM, JPN, VIN# JH2RC537-EK400001 FRONT FORK (1) Diagram

FORK ASSY., R. FR. (KAYABA)

51400-MFE-A41

$619.62

FORK ASSY., R. FR. (KAYABA) This part replaces 51400-MFE-306.

51400-MFE-A41

$619.62

SPRING, FR. FORK

51401-MEG-003

$71.97

SPACER, SPRING

51402-MEG-003

$10.51

WASHER

51404-MBA-003

$5.22

PIPE, FR. FORK

51410-MEG-003

$309.98

SPRING, FR. REBOUND

51411-MBA-003

$6.75

WASHER

51412-KA4-004

$6.75

BUSH, SLIDER

51415-MEG-003

$7.61

CASE, R. (LOWER)

51420-MFE-A41

$327.03

BUSH, GUIDE

51424-MCT-003

$7.00

PIECE, OIL LOCK

51431-MBA-003

$16.86

SPRING, OIL LOCK

51433-MBA-J50

$3.87

RING, PISTON

51437-MCT-003

$4.93

PIPE, SEAT

51440-MEG-003

$42.30

RING, SNAP

51447-KA4-004

$4.24

BOLT, FR. FORK

51450-MEG-901

$28.05

GUIDE, COVER

51460-MCK-A01

$9.96

SEAL SET, FR. FORK

51490-MCT-003

$17.74

FORK ASSY., L. FR. (COO) (KAYABA) This part replaces 51500-MFE-A41.

51500-MFE-306

$619.62

FORK ASSY., L. FR. (COO) (KAYABA)

51500-MFE-306

$619.62

CASE, L. (LOWER)

51520-MFE-A41

$327.03

COVER, R. FR. FORK TOP

51610-MJA-B60

$101.34

MOUNT, FR. FORK COVER

51611-MBA-000

$9.75

COVER, R. FR. FORK (LOWER)

51620-MJA-B60

$101.34

COVER, L. FR. FORK TOP

51660-MJA-B60

$83.69

COVER, L. FR. FORK (LOWER)

51670-MJA-B60

$101.34

WASHER, OIL BOLT (KAYABA)

52442-KA3-731

$2.34

BOLT, FLANGE (8X12)

90101-MFE-A40

$3.31

BOLT, SOCKET (8X35)

90109-MCR-D00

$2.84

BOLT, SOCKET (10X25)

90116-KK0-004

$5.94

BOLT, FLANGE (6X12)

90123-MFE-A40

$2.31

DUST SEAL

91254-MCK-A01

$12.17

O-RING (39.5X5)

91305-MC7-000

$3.31

O-RING (31.7X3.5)

91356-KT1-671

$3.13
