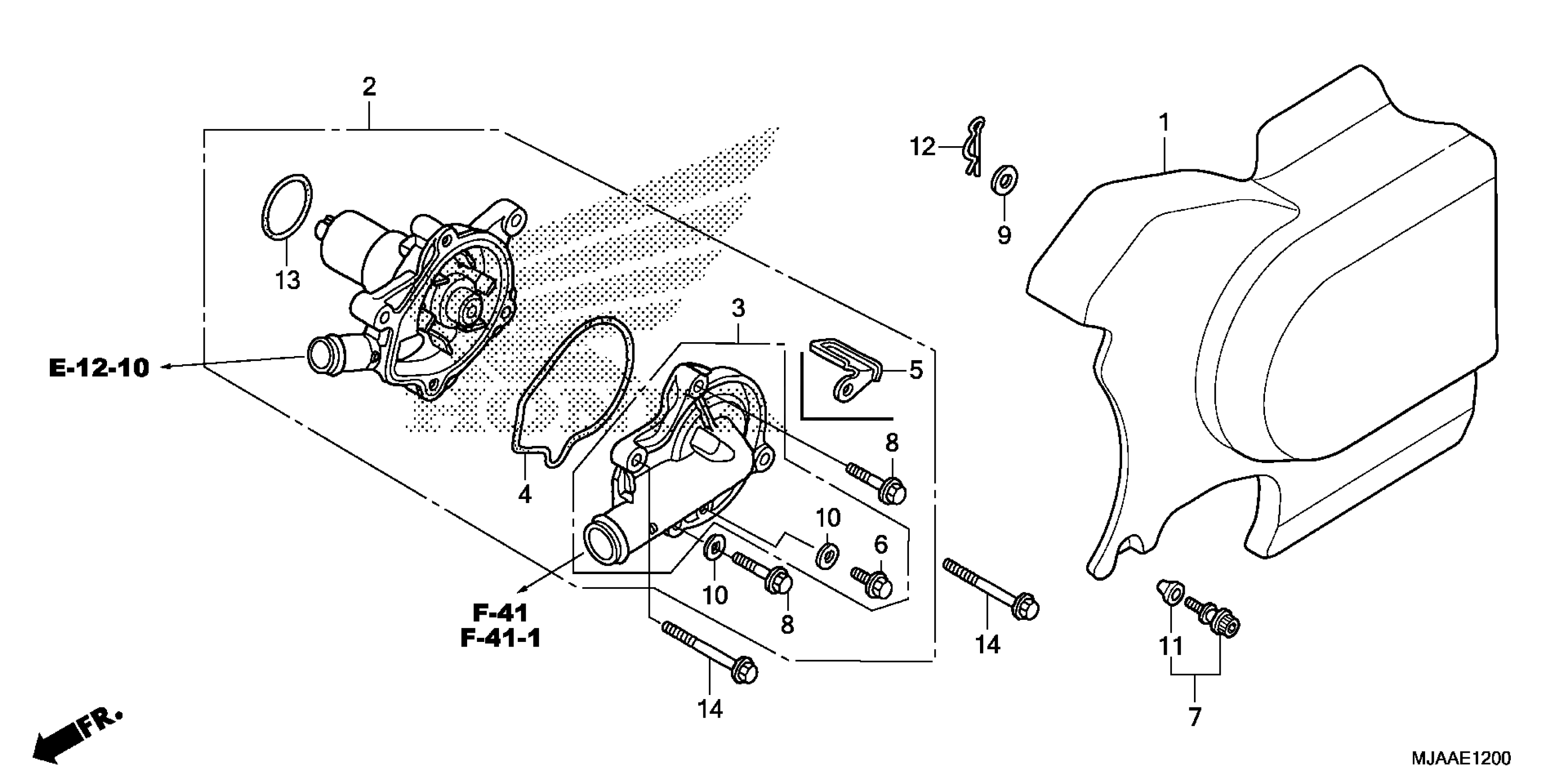

Honda VT750C2BA (13) SHADOW PHANTOM, JPN, VIN# JH2RC537-DK300001 WATER PUMP Diagram

COVER, L. RR.

11351-MFE-A40

$90.26

WATER PUMP ASSY.

19200-MFE-A40

$245.38

COVER ASSY., WATER PUMP

19220-MBA-710

$87.13

GASKET, WATER PUMP COVER

19226-MM9-000

$4.49

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.54

BOLT ASSY., SPECIAL (6X22) (FRAME NO.)

90020-MBA-D20

$4.24

BOLT, FLANGE (6X25)

90121-MV9-670

$2.92

WASHER B, SEALING (10MM)

90442-283-000

$2.51

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

RUBBER, MOUNTING (FRAME NO.)

90543-MBA-000

$2.92

PIN, LOCK (10MM)

90604-MEG-000

$1.49

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)

95701-06045-07

$2.06
