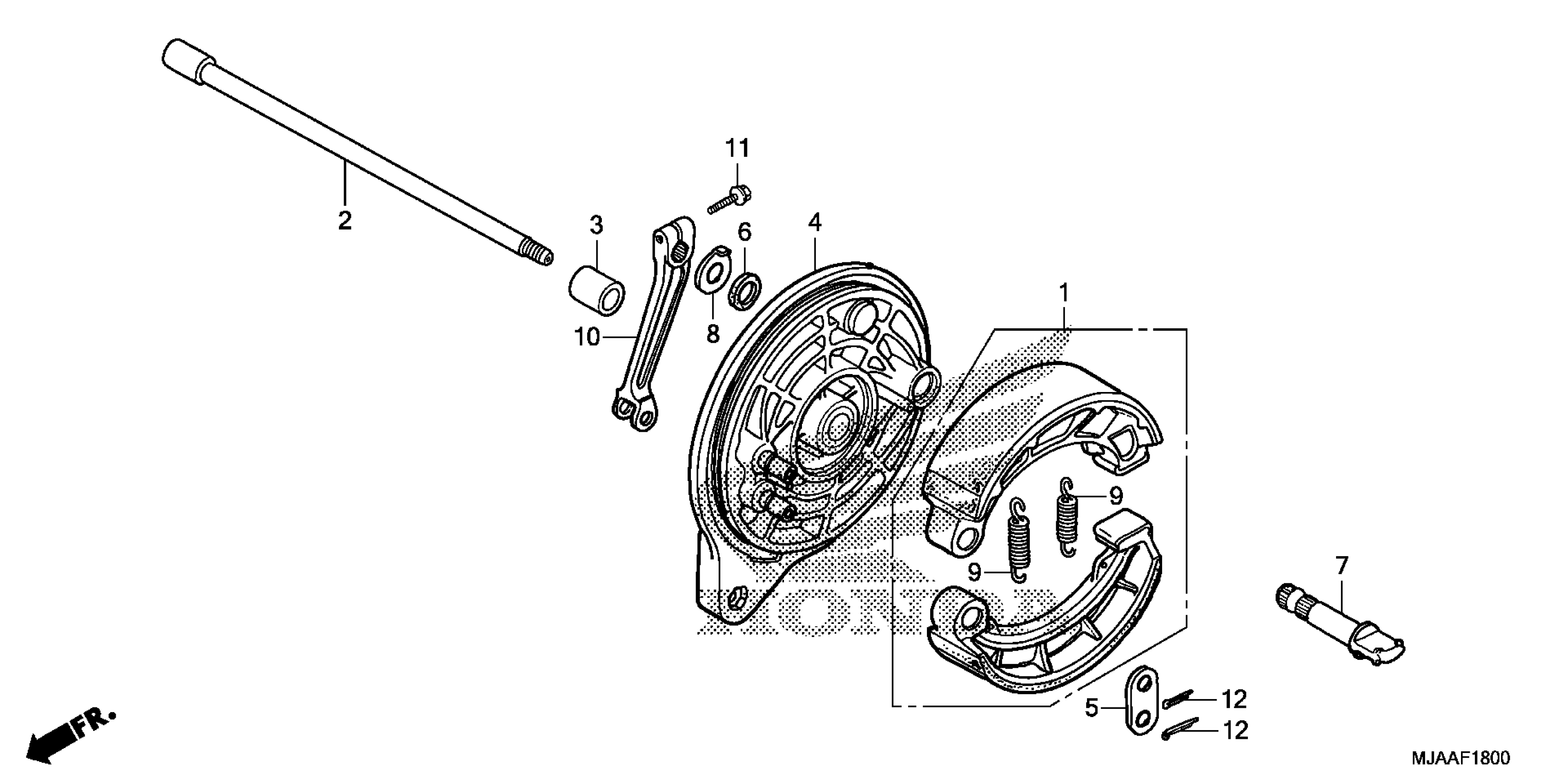

Honda VT750C2BA (13) SHADOW PHANTOM, JPN, VIN# JH2RC537-DK300001 REAR BRAKE PANEL (1) Diagram

SHOE SET, BRAKE (JB)

06430-MCL-700

$58.34

AXLE, RR. WHEEL

42301-MEG-640

$59.87

COLLAR, BRAKE PANEL SIDE

42313-MFE-A40

$17.13

PANEL, RR. BRAKE *NH1* (BLACK)

43100-MEG-000ZC

$134.61

WASHER, ANCHOR PIN

43102-319-000

$6.21

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

CAM, RR. BRAKE

43141-MCL-003

$32.05

INDICATOR, RR. BRAKE

43145-ME5-000

$5.84

SPRING, RR. BRAKE SHOE

43151-346-000

$5.90

ARM, RR. BRAKE

43410-MFE-A40

$27.72

BOLT, FLANGE (8X25)

90107-MZ5-000

$4.65

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, COTTER (2.5MM)

94201-25300

$1.49
