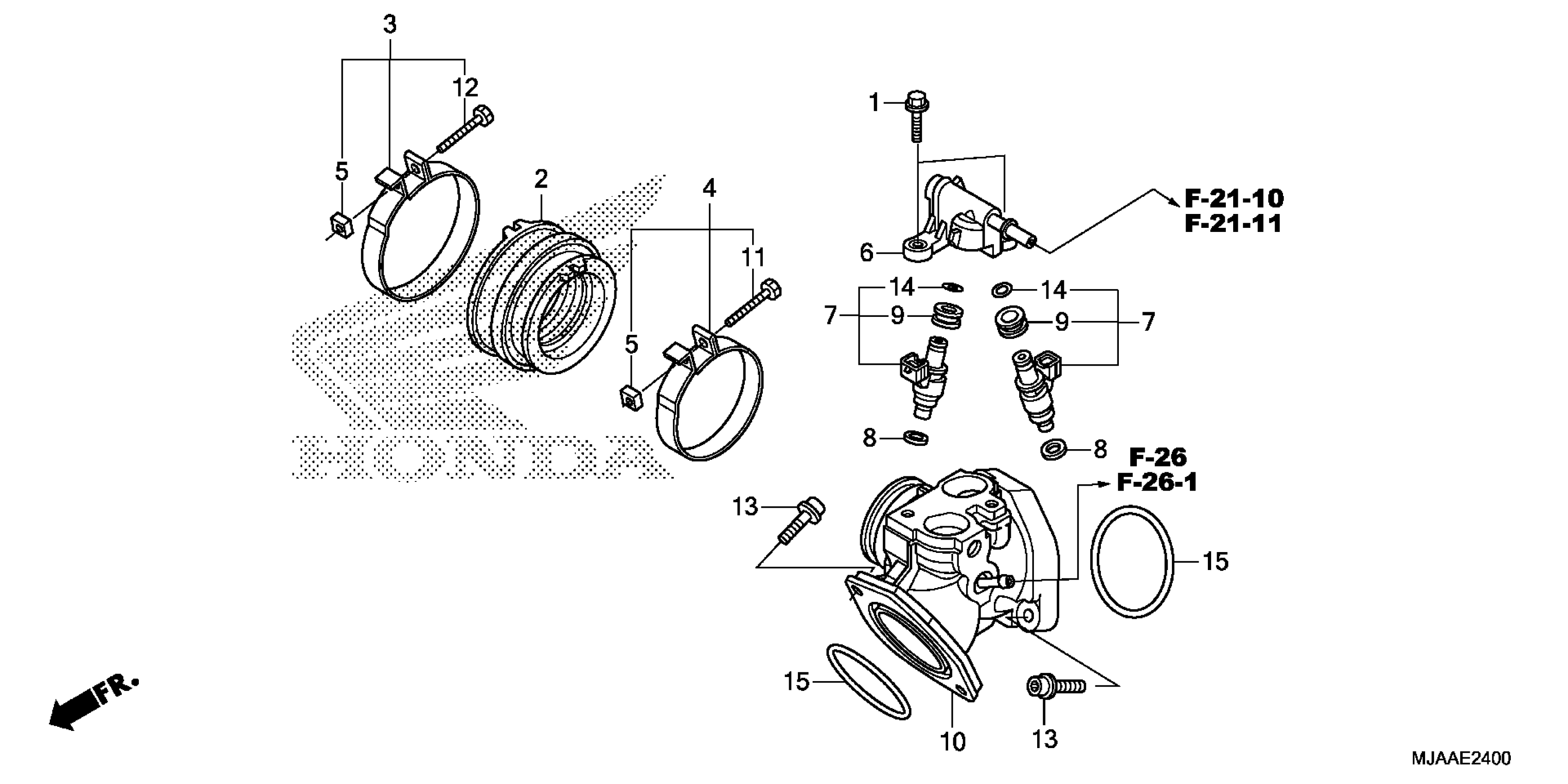

Honda VT750C2BA (13) SHADOW PHANTOM, JPN, VIN# JH2RC537-DK300001 INLET MANIFOLD Diagram

BOLT, FLANGE (5X20)

16080-KPH-701

$4.29

INSULATOR, THROTTLE BODY

16211-MFE-640

$12.93

BAND, INSULATOR

16217-MBW-J20

$3.90

BAND, INSULATOR

16217-MEG-000

$3.90

NUT, SQUARE (5MM) (GQ51B C)

16222-MV4-300

$1.99

CAP, INJECTOR

16422-MFE-640

$4.15

INJECTOR ASSY., FUEL

16450-MFE-641

$157.47

SEAL RING, INJECTOR

16472-MCW-000

$2.21

CUSHION RING, INJECTOR

16473-P7A-004

$6.57

MANIFOLD, INLET

17110-MFE-640

$221.26

BOLT, RECESSED (5X32)

90005-MM4-000

$0.99

BOLT, RECESSED (5X28) (GQ51B C)

90023-MM5-000

$2.80

BOLT, FLANGE SOCKET (6X22)

90091-MM5-640

$3.76

O-RING (7.8X1.9)

91301-P7A-004

$3.21

O-RING (39.5X2.6) (ARAI)

91352-MG2-792

Unavailable
