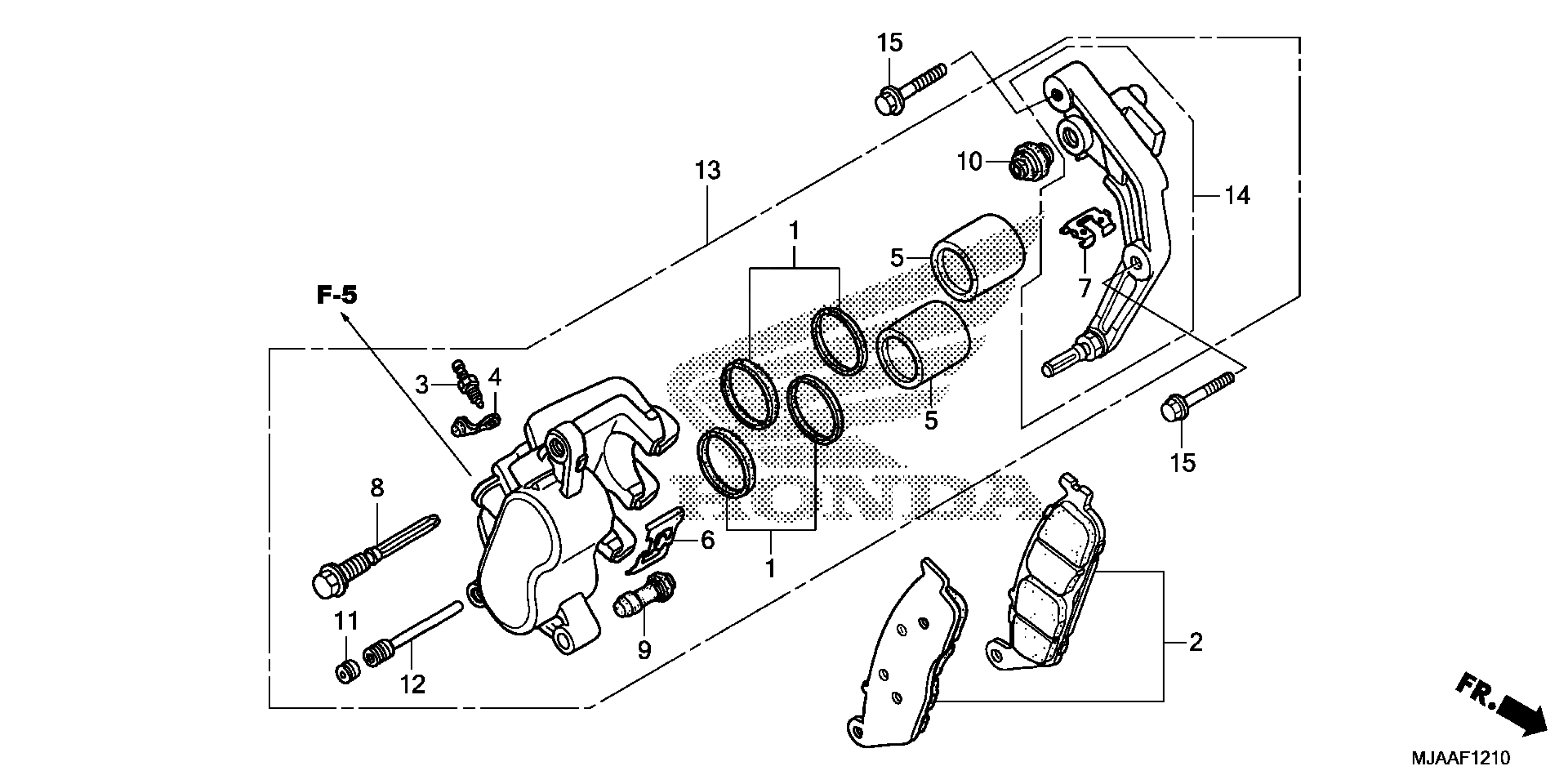

Honda VT750C2BA (13) SHADOW PHANTOM, JPN, VIN# JH2RC537-DK300001 FRONT BRAKE CALIPER (1) Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$11.41

PAD SET, FR.

06455-MEA-672

$61.63

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON (NISSIN)

45107-MN5-006

$37.88

SPRING, PAD (NISSIN)

45108-ML7-922

$6.19

RETAINER

45112-MAA-006

$5.90

PIN, BOLT

45131-MA3-006

$17.59

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER (NISSIN)

45215-ML7-922

$10.67

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MEG-A41

$329.15

BRACKET SUB-ASSY., R. FR.

45290-MEA-671

$44.44

BOLT, SPECIAL FLANGE (8X32)

90101-MZ8-000

$6.75
