Description

Price

2

SPROCKET, OIL PUMP DRIVE (31T)

15131-MEW-921

$59.51

3

CLUTCH OUTER (67T)

22100-MBL-610

$328.03

4

COLLAR, PRIMARY DRIVEN

22116-MF5-000

$49.72

5

CENTER, CLUTCH (24T)

22120-MBA-000

$87.83

6

SEAT, JUDDER SPRING

22125-435-000

$9.15

7

DISK, CLUTCH FRICTION

22201-MAV-000

$13.04

8

DISK B, CLUTCH FRICTION

22202-MAE-000

$16.01

9

PLATE, CLUTCH

22321-MN8-000

$9.38

10

PLATE, CLUTCH PRESSURE | Use up to Engine SN 2111258. This part replaces 22350-MS6-921.

22350-MS6-922

$60.04

10

PLATE, CLUTCH PRESSURE

22350-MS6-922

$60.04

11

PLATE, CLUTCH LIFTER

22361-MR1-000

$21.17

12

SPRING, CLUTCH

22401-MEG-000

$4.07

13

SPRING, JUDDER

22402-435-000

$34.37

14

ROD, CLUTCH LIFTER

22847-MZ8-H00

$5.84

15

GEAR, PRIMARY DRIVE (38T)

23103-MEG-010

$85.41

17

ROTOR, PULSE

30211-MFE-640

$17.57

18

BOLT, FLANGE (12X30)

90005-MN5-000

$8.41

19

BOLT, SPECIAL FLANGE (6X30)

90007-MR1-000

$2.92

20

NUT, LOCK (18MM)

90236-HA0-000

$10.45

22

WASHER (18MM)

90401-MZ8-B40

$2.52

23

WASHER (12.5X34X5)

90403-MEW-920

$4.67

24

WASHER, LOCK

90432-428-000

$7.57

25

WASHER, THRUST (22MM)

90452-471-000

$4.76

26

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13

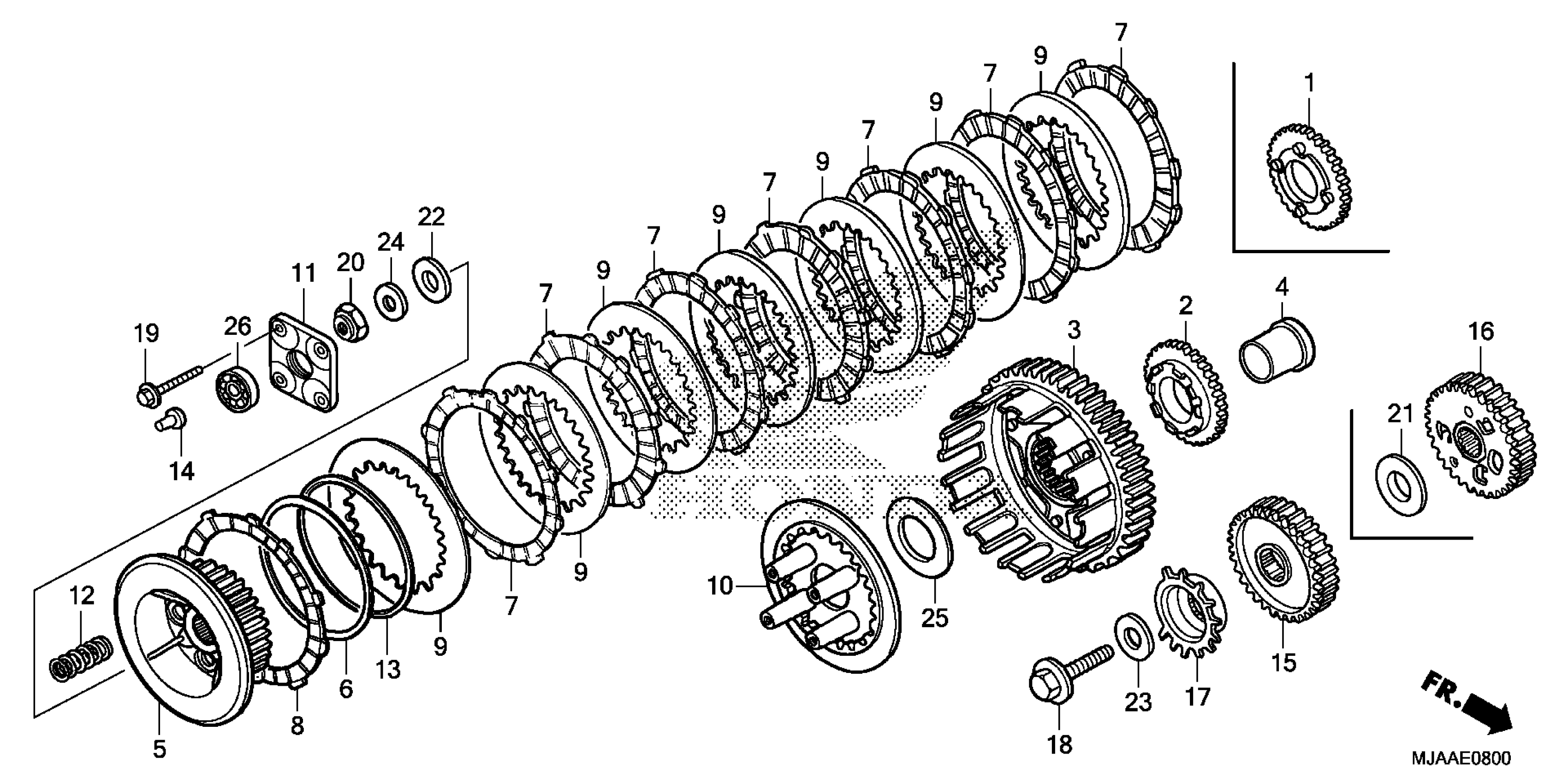

Honda VT750C2BA (13) SHADOW PHANTOM, JPN, VIN# JH2RC537-DK300001 CLUTCH Diagram
