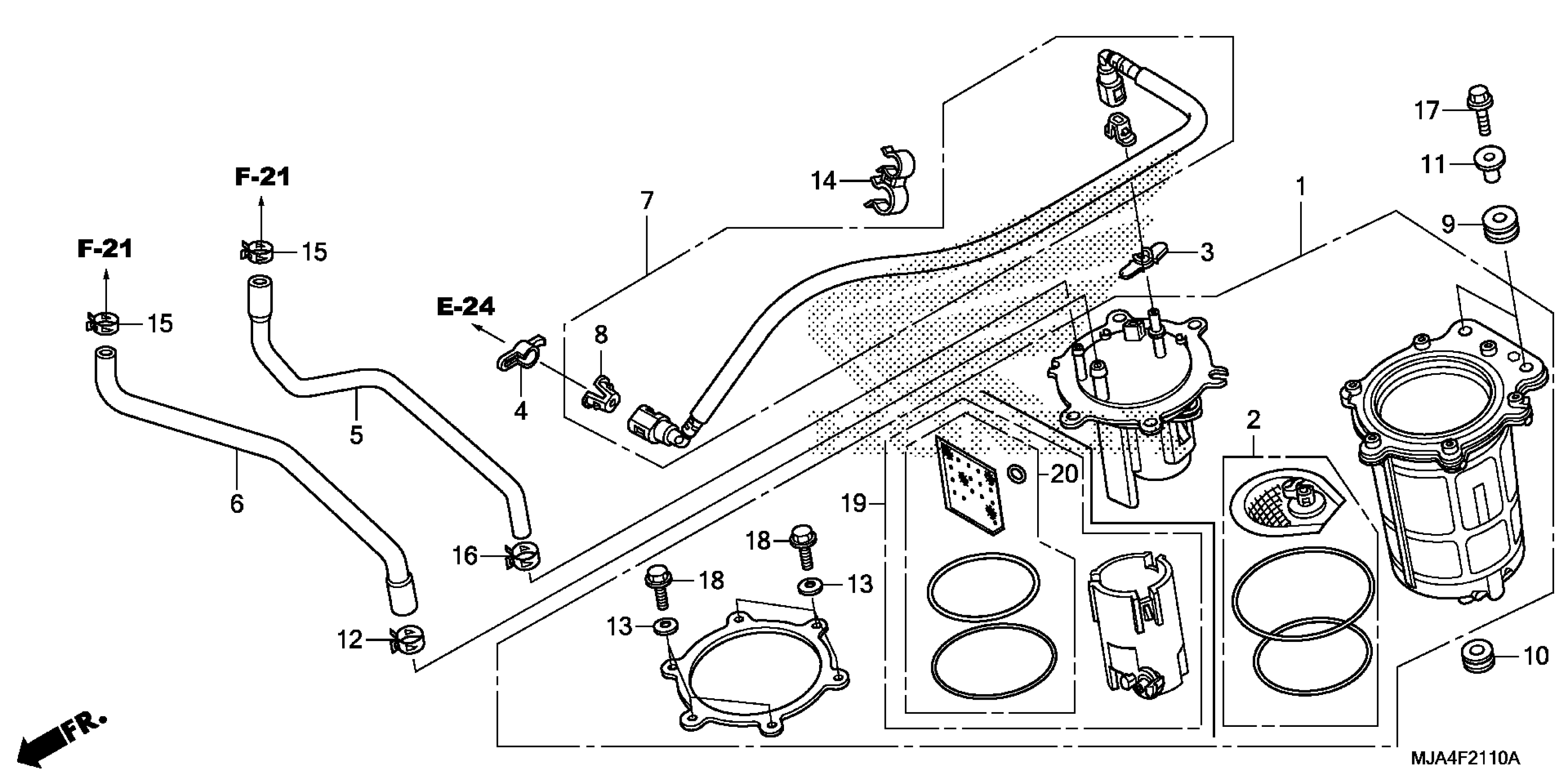

Honda VT750C2BA (12) SHADOW PHANTOM, JPN, VIN# JH2RC537-CK200001 FUEL PUMP (1) Diagram

#

Description
Price

1

PUMP ASSY., FUEL (MSDS) | Use up to Frame SN CK201329. This part replaces 16700-HN8-A62.

16700-HN8-601

$148.49

1

PUMP ASSY., FUEL (MSDS)

16700-HN8-601

$148.49

2

FILTER KIT (INSTALL INST, REFER TO TRX500 (HR0) SM (61HR000) PG.7-17) This part replaces 16706-HN8-A62.

16706-HN8-305

$43.16

2

FILTER KIT (INSTALL INST, REFER TO TRX500 (HR0) SM (61HR000) PG.7-17)

16706-HN8-305

$43.16

3

RUBBER, FUEL JOINT

16719-HN8-A61

$2.33

4

DAMPER, CONNECTOR

16719-MFJ-D00

$2.92

5

TUBE, FUEL PUMP BREATHER

16730-MEG-A60

$10.71

6

TUBE, FUEL

16955-MEG-A60

$19.17

7

HOSE, FUEL FEED

17526-MEG-A61

$118.32

8

RETAINER (BLUE GREEN) (TOKAI) (Honda Code 5928312)

17711-S0X-931

$3.40

9

RUBBER, MUFFLER

18334-KA3-830

$3.89

10

RUBBER, RADIATOR MOUNTING

19051-KA4-000

$3.80

11

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

11

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.48

12

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$12.27

13

WASHER, CONICAL SPRING

90501-HN8-A60

$1.49

14

CLAMP, JOINT

90650-MFE-641

$2.66

15

CLAMP, TUBE (14.0)

90651-HM3-A71

$2.31

16

CLAMP, TUBE (12.0)

90651-HN6-A51

$2.07

17

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

18

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

19

FILTER KIT (INSTALL INST, REFER TO TRX500 (HR0) SM (61HR000) PG.7-17) | Use up to Frame SN CK201329.

16706-HN8-305

$43.16

20

FILTER SET (INSTALL INST, REFER TO TRX500 (HR0) SM (61HR000) PG.7-17) | Use from Frame SN CK201330.

16706-HR0-F01

$25.61
