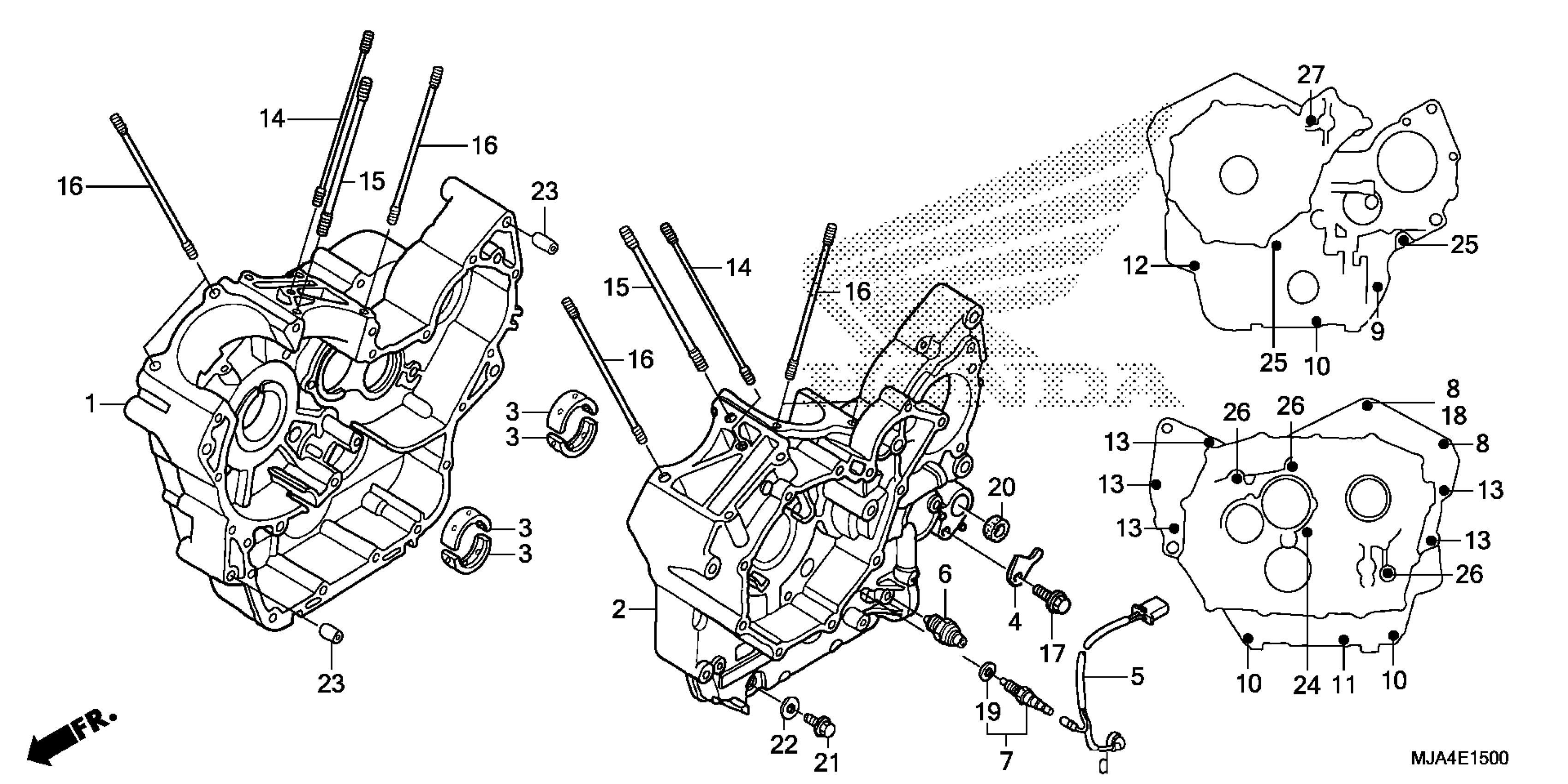

Honda VT750C2BA (12) SHADOW PHANTOM, JPN, VIN# JH2RC537-CK200001 CRANKCASE (1) Diagram

CRANKCASE, R.

11100-MFE-A40

$985.11

CRANKCASE, L.

11200-MFE-A40

$985.11

BEARING A, CRANKSHAFT (BLUE)

13321-MEG-003

$13.64

BEARING B, CRANKSHAFT (BLACK)

13322-MEG-003

$13.64

BEARING C, CRANKSHAFT (BROWN)

13323-MEG-003

$13.64

BEARING D, CRANKSHAFT (GREEN)

13324-MEG-003

$13.64

BEARING E, CRANKSHAFT (OVER SIZE) (YELLOW) | (Optional).

13325-MEG-305

$13.07

BEARING F, CRANKSHAFT (OVER SIZE) (PINK) | (Optional).

13326-MEG-305

$13.07

BEARING G, CRANKSHAFT (OVER SIZE) (RED) | (Optional).

13327-MEG-305

$13.07

PLATE, SPINDLE

24612-MAL-600

$9.75

SUB-HARNESS A

32101-MFE-640

$13.23

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

SWITCH ASSY., NEUTRAL (TEC)

35600-MAW-601

$23.73

BOLT, FLANGE (8X140)

90002-MEG-000

$3.80

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.92

BOLT, FLANGE (6X50) (NSHF) (Honda Code 7498413)

90006-GHB-730

$1.80

BOLT, FLANGE (6X80) (NSHF)

90006-GHB-790

$2.02

BOLT, FLANGE (8X70)

90008-MEW-920

$3.82

BOLT, FLANGE (8X80)

90010-MEG-000

$2.61

BOLT, STUD (8X189)

90011-MZ8-B40

$11.39

BOLT, STUD (12X177)

90012-MCB-610

$8.49

BOLT, STUD (10X177)

90013-MZ8-B40

$17.15

BOLT, FLANGE (6X14) (CT200)

90014-952-000

$2.35

WASHER, SEALING (8MM)

90442-MR1-770

$2.28

WASHER, NEUTRAL SWITCH

90443-KR0-000

$1.49

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.61

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.67

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

PIN A, DOWEL (14X20)

94301-14200

$2.28

BOLT, FLANGE (8X65)

95701-08065-00

$1.72

BOLT, FLANGE (8X80)

95701-08080-00

$1.64

BOLT, FLANGE (8X80)

95701-08080-09

$1.49

BOLT, FLANGE (8X125) This part replaces 95701-08125-00.

95701-08125-07

$4.87

BOLT, FLANGE (8X125)

95701-08125-07

$4.87
