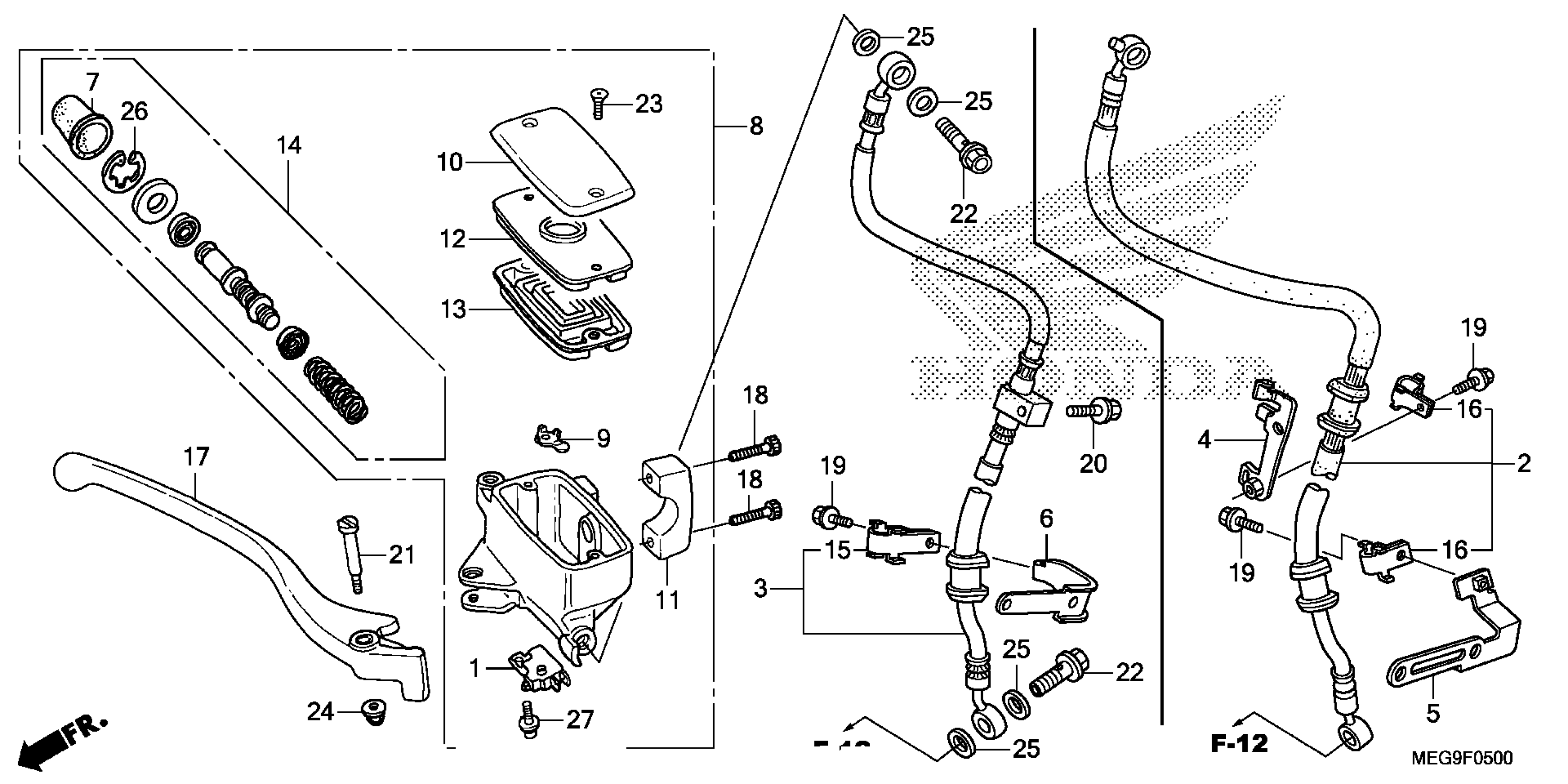

Honda VT750C2BA (11) SHADOW PHANTOM, JPN, VIN# JH2RC537-BK100001 TO JH2RC537-BK199999 FRONT BRAKE MASTER CYLINDER (1) Diagram

SWITCH ASSY., FR. STOP

35340-MM5-600

$19.29

HOSE, FR. BRAKE This part replaces 45126-MFE-A41.

45126-MJA-AH1

$64.04

HOSE, FR. BRAKE

45126-MJA-AH1

$64.04

STAY, FR. BRAKE HOSE

45130-MEG-A40

$8.72

BRACKET, R. FR. HOSE CLIP

45138-MEG-A40

$7.52

BOOT

45504-410-003

$10.93

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN) This part replaces 45510-MAV-305.

45510-MAV-751

$191.81

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-MAV-751

$191.81

PROTECTOR

45512-MA6-006

$3.99

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.12

HOLDER, MASTER CYLINDER (NISSIN)

45517-MAV-751

$18.59

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$9.57

DIAPHRAGM (NISSIN)

45520-MM5-006

$13.57

MASTER CYLINDER SET (SET INCLD.7 PARTS,ITEM SHOWN BELOW SPRING DOES NOT APPLY)

45530-MN9-305

$45.58

CLAMP, BRAKE HOSE

52115-ML8-670

$4.94

LEVER, R. HANDLEBAR This part replaces 53175-MR5-305.

53175-MR5-003

$14.63

BOLT, SOCKET (6X22)

90101-MCL-000

$1.32

BOLT, FLANGE (6X12)

90103-MCS-G00

$1.17

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$8.46

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

NUT, CAP (6MM)

90201-415-000

$1.96

WASHER, OIL BOLT

90545-300-000

$3.72

CIRCLIP

90651-MA5-671

$2.38

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22
