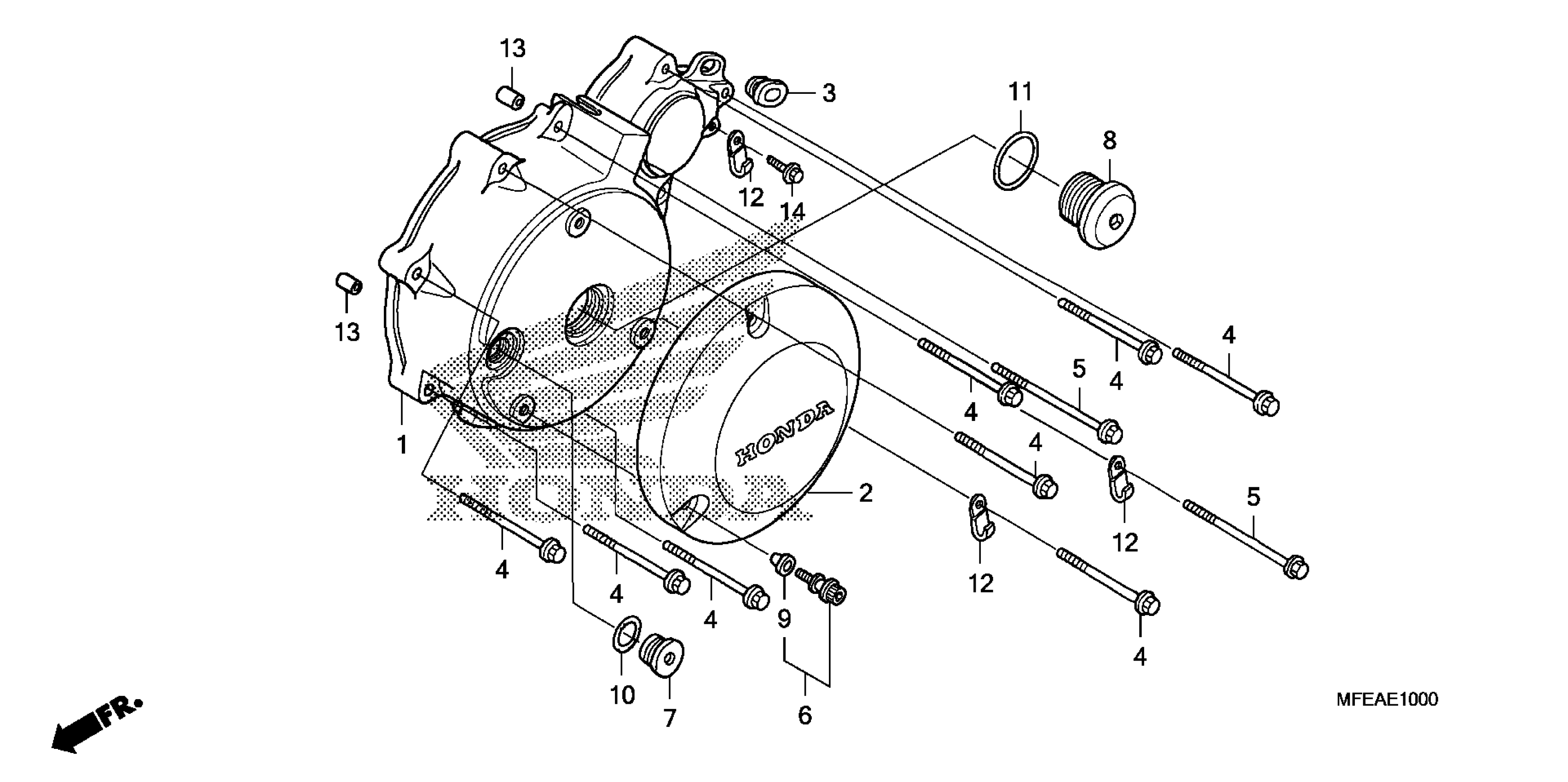

Honda VT750C2BA (10) SHADOW PHANTOM, JPN, VIN# JH2RC537-AK000001 LEFT CRANKCASE COVER Diagram

#

Description

Price

1

COVER, L. CRANKCASE

11341-MFE-A40

$183.87

2

COVER, ALTERNATOR

11360-MFE-A40

$81.57

3

GROMMET, SIDE COVER

83551-MA6-000

$3.35

4

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.92

5

BOLT, FLANGE (6X45) (NSHF)

90006-GHB-720

$1.87

6

BOLT ASSY., SPECIAL (6X22) (FRAME NO.)

90020-MBA-D20

$4.24

7

CAP (14MM)

90084-MN8-010

$12.82

8

CAP (30MM)

90087-KT7-000

$19.74

9

RUBBER, MOUNTING (FRAME NO.)

90543-MBA-000

$2.92

10

O-RING (13.8X2.5)

91303-377-000

$3.42

11

O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003.

91356-425-005

$2.92

11

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.92

12

CLIP (2X70)

91413-679-000

$9.23

13

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

14

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
