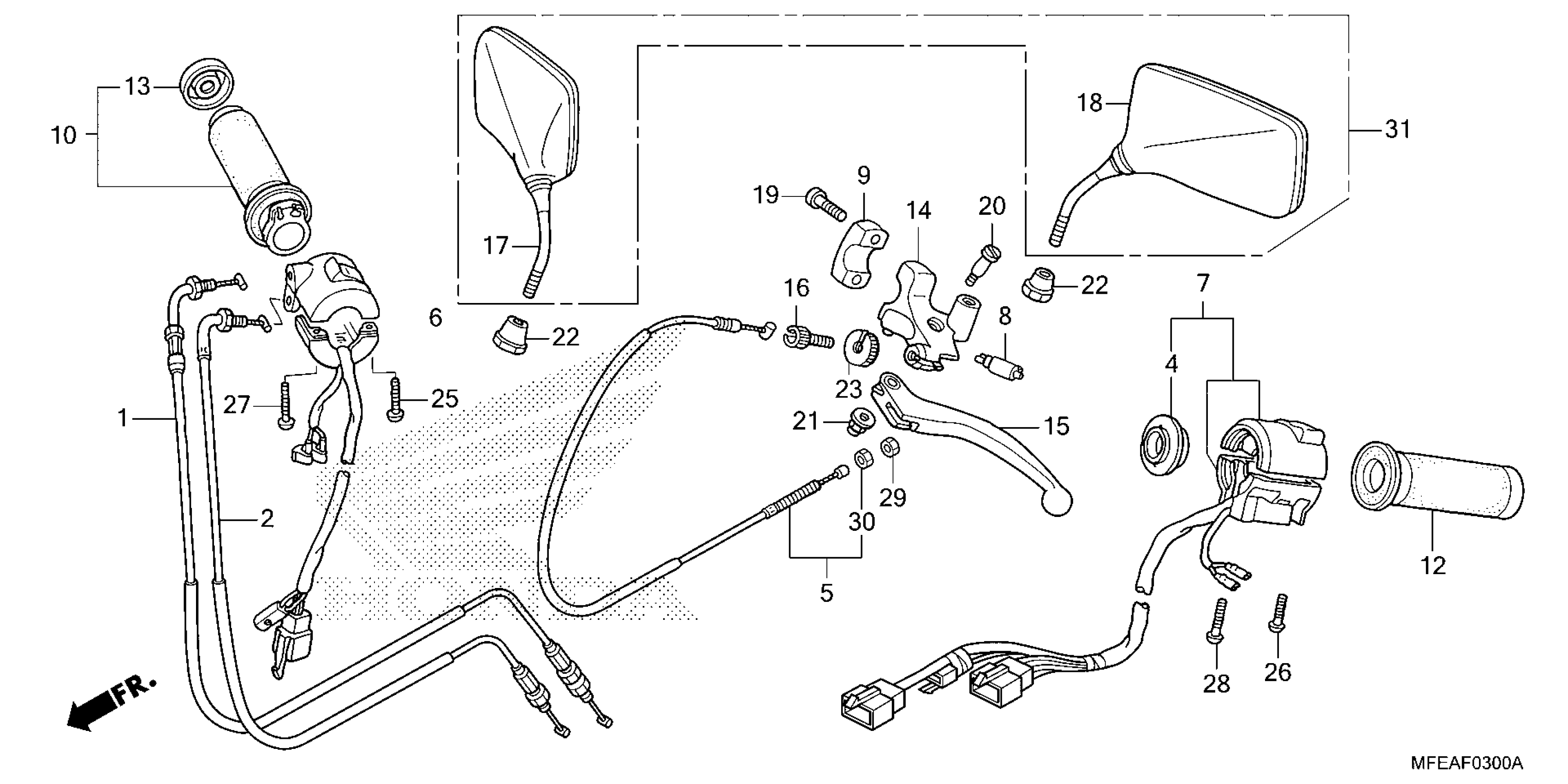

Honda VT750C2BA (10) SHADOW PHANTOM, JPN, VIN# JH2RC537-AK000001 HANDLE LEVER@SWITCH@CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MFE-A40

$25.51

1

CABLE A, THROTTLE

17910-MFE-640

$27.07

2

CABLE B, THROTTLE

17920-MFE-A40

$25.51

2

CABLE B, THROTTLE

17920-MFE-640

$27.10

4

ADAPTER

17962-MFE-A40

$14.26

5

CABLE, CLUTCH

22870-MFE-A40

$30.46

6

SWITCH ASSY., ENGINE STOP

35130-MFE-A41

$118.56

7

SWITCH ASSY., TURN SIGNAL

35200-MFE-A41

$109.17

8

SWITCH, FR. LEVER (TOYO DENSO)

35330-413-003

$21.91

9

HOLDER, MASTER CYLINDER (NISSIN)

45517-MAV-751

$20.71

10

GRIP, R. HANDLE

53145-MFE-A40

$49.05

10

GRIP, R. HANDLE This part replaces 53145-MFE-305.

53145-MFE-A40

$49.05

12

GRIP, L. HANDLE

53166-MFE-A40

$37.87

12

GRIP, L. HANDLE This part replaces 53166-MFE-305.

53166-MFE-A40

$37.87

13

CAP, R. GRIP END

53167-MFE-A40

$5.96

14

BRACKET, HANDLE LEVER

53172-MBA-000

$31.64

15

LEVER, L. HANDLE This part replaces 53178-MAV-305.

53178-MAV-750

$18.40

15

LEVER, L. HANDLE

53178-MAV-750

$18.40

16

BOLT, CLUTCH CABLE ADJUSTING

53192-349-690

$7.04

17

MIRROR, R.

88210-MEA-670

Unavailable

18

MIRROR, L.

88220-MEA-670

Unavailable

19

BOLT, SOCKET (6X22)

90101-MCL-000

$1.49

20

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

21

NUT, CAP (6MM)

90201-415-000

$2.05

22

NUT, LOCK

90314-375-000

$12.55

23

NUT, FIXING

90321-KT7-760

$10.45

25

SCREW, PAN (5X20)

93500-05020-0A

$1.49

26

SCREW, PAN (5X22)

93500-05022-0A

$1.49

27

SCREW, PAN (5X25) SCREW, PAN (5X32)

93500-05025-0A

$1.49

28

SCREW, PAN (5X32)

93500-05032-0A

$1.49

29

NUT, HEX. (8MM)

94002-08070-0S

$1.49

30

NUT, HEX. (8MM)

94030-08070

$1.49

31

MIRROR SET

88100-MEA-305

$69.41
