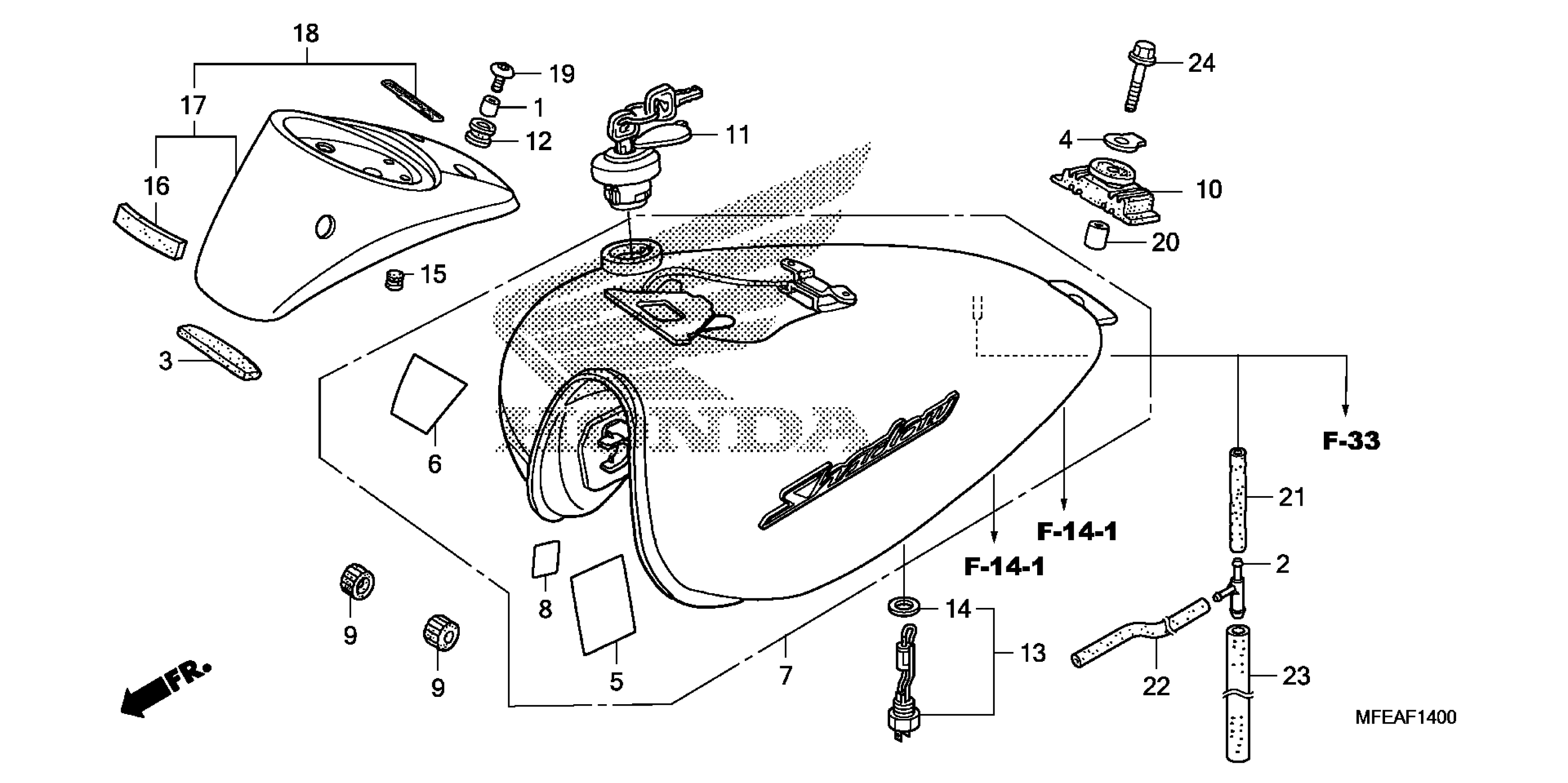

Honda VT750C2BA (10) SHADOW PHANTOM, JPN, VIN# JH2RC537-AK000001 FUEL TANK Diagram

#

Description
Price

1

COLLAR, ADJUSTING COVER WASHER, CHAIN CASE SETTING

11346-371-300

$10.56

2

JOINT, THREE WAY (FUEL)

16180-GM6-000

$5.36

3

RUBBER, FR. FUEL TANK

17511-KGB-610

$4.35

4

PLATE, FUEL TANK SETTING

17511-MEG-000

$1.49

5

TAPE, TANK PROTECTOR

17515-MEG-300

$3.16

6

FILM, PROTECTOR

17516-MFE-670

$5.62

7

TANK SET, FUEL *NHB01* (WL) (GRAPHITE BLACK)

17520-MFE-A40ZA

$1,082.16

8

TAPE, TANK GUARD

17528-MR4-900

$2.33

9

CUSHION, FR. FUEL TANK

17611-MEG-000

$4.04

10

CUSHION, RR. FUEL TANK

17613-KY1-000

$11.67

11

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$70.93

11

CAP, FUEL FILLER This part replaces 17620-KR3-752.

17620-KR3-753

$70.93

11

CAP, FUEL FILLER

17620-KR3-753

$70.93

12

RUBBER, PROTECTOR GASKET

18293-GN2-000

$2.90

13

SENSOR, FUEL RESERVE

37810-MFE-641

$58.20

14

GASKET, FUEL RESERVE SENSOR

37811-MB1-008

$2.92

15

PLUG, HOLE

61110-388-000

$3.24

16

MAT, METER COVER

83511-MFE-670

$1.80

17

COVER ASSY., METER

83515-MFE-A40

$139.46

19

BOLT, SPECIAL (6X14)

90118-MCL-000

$2.33

20

COLLAR (8X20)

90513-MAT-000

$3.04

21

BULK HOSE, VACUUM (4.5X1000) (4.5X130) (BULK HOSE: 95005-45001-20M)

95005-45001-20M

$34.14

22

BULK HOSE, VACUUM (4.5X1000) (4.5X130) (BULK HOSE: 95005-45001-20M)

95005-45001-20M

$34.14

23

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45

24

BOLT, FLANGE (8X35)

95701-08035-00

$2.30
