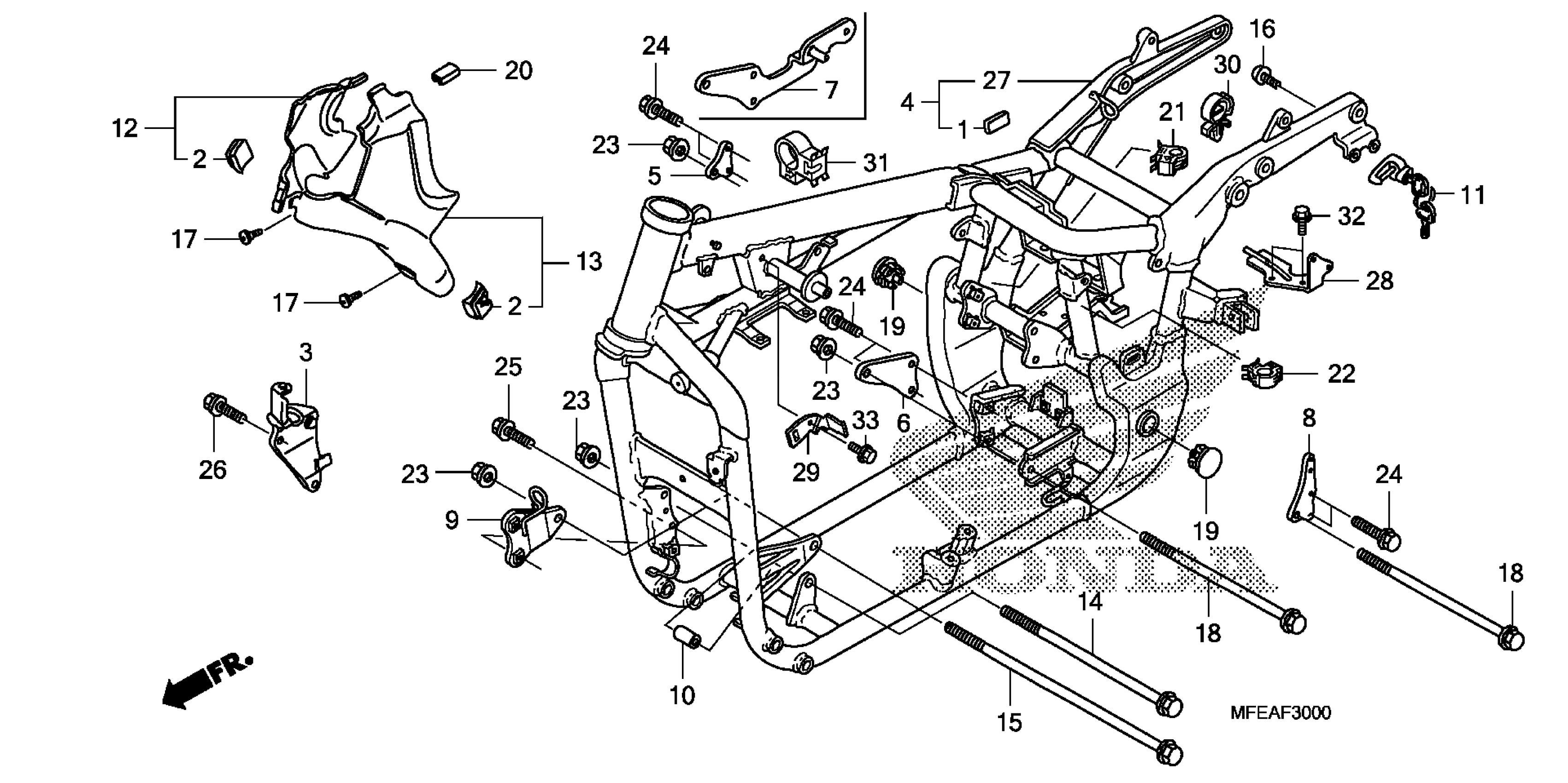

Honda VT750C2BA (10) SHADOW PHANTOM, JPN, VIN# JH2RC537-AK000001 FRAME Diagram

#

Description
Price

1

FILM, PROTECTOR

17503-MY1-300

$3.18

2

REFLECTOR, FR. SIDE REFLEX

33740-MEG-671

$13.44

3

BRACKET, RR. BRAKE PEDAL

46505-MEG-000

$40.31

4

FRAME SET

50010-MEG-A60

$2,416.31

5

BRACKET, R. RR. ENGINE HANGER (UPPER)

50171-MEG-000

$4.66

6

BRACKET, R. RR. ENGINE HANGER (LOWER)

50172-MEG-000

$5.32

8

BRACKET, L. RR. ENGINE HANGER (UPPER)

50173-MEG-670

$5.91

9

PLATE, FR. ENGINE HANGER (UPPER)

50176-MFE-671

$18.60

10

COLLAR, ENGINE HANGER

50363-KT7-000

$13.16

11

HOLDER ASSY., HELMET (COO) This part replaces 50710-GCN-003.

50710-GCN-305

$26.51

12

COVER, R. FR. SIDE

63550-MEG-A60

$20.97

13

COVER, L. FR. SIDE

63650-MEG-A60

$20.97

14

BOLT, ENGINE HANGER

90103-GC2-920

$10.97

15

BOLT, FLANGE (10X208)

90104-MBS-000

$9.03

16

SCREW, PAN (6X12)

90106-MAV-000

$2.01

17

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.47

18

BOLT, UBS (10X141)

90154-KE7-000

$5.01

19

CAP, R. LOCK NUT (BOTH SIDES)

90312-MB0-700

$16.71

19

CAP, R. LOCK NUT This part replaces 90312-MFE-A40.

90312-MB0-700

$16.71

20

CLAMP, COVER

90655-MEG-000

$1.40

22

CLIP, CABLE (25MM)

90690-GHB-671

$2.01

23

NUT, FLANGE (10MM)

90303-428-900

$3.19

23

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.19

24

BOLT, FLANGE (8X16)

95701-08016-07

$1.62

25

BOLT, FLANGE (8X20)

95701-08020-07

$1.72

26

BOLT, FLANGE (10X25)

95701-10025-07

$1.31

30

CLIP, WIRE HARNESS

90684-ZA0-601

$2.80

31

CLIP, CABLE (25MM)

90690-GHB-671

$2.01
