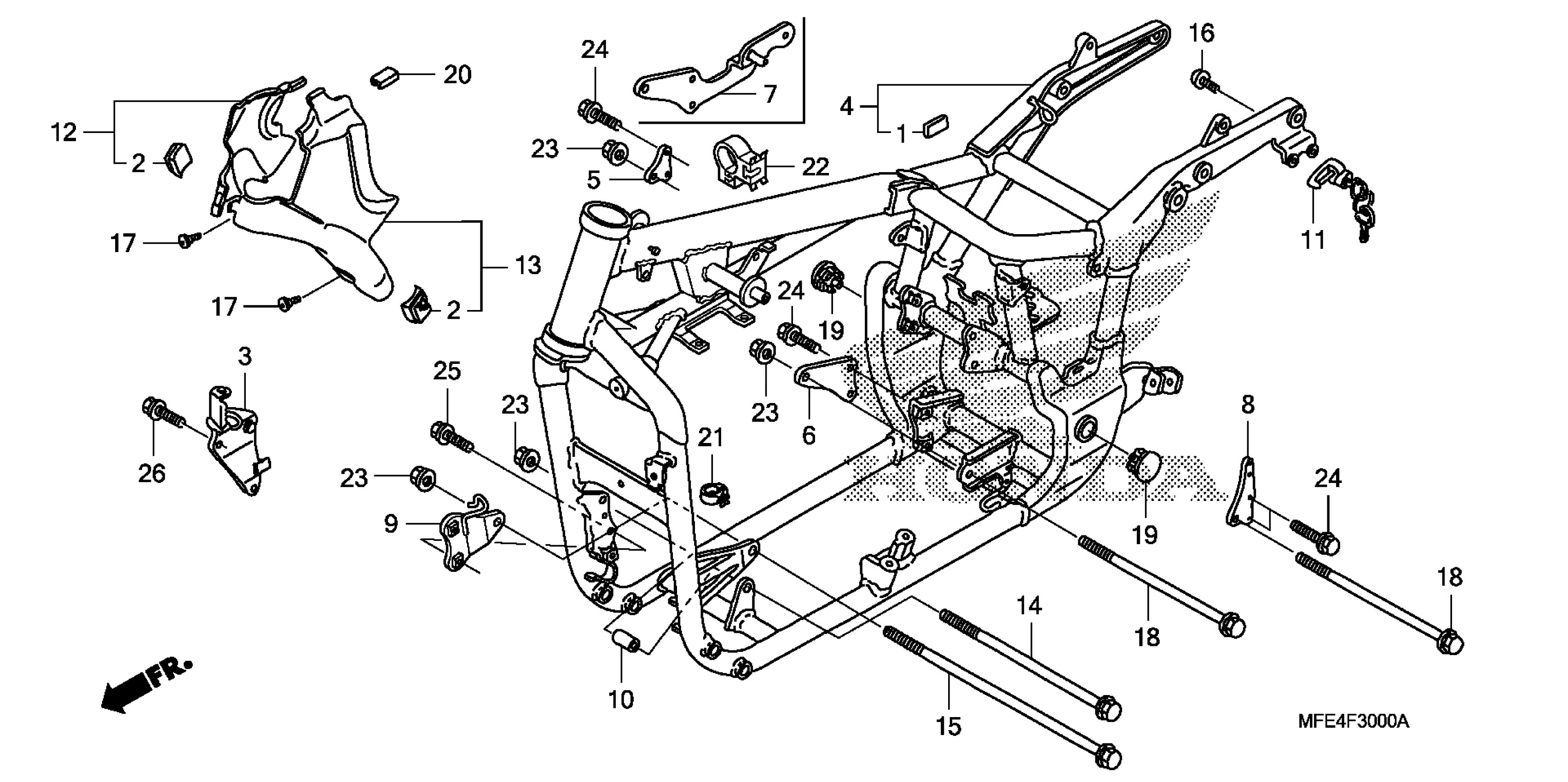

Honda VT750C2AC (09) SHADOW SPIRIT, JPN, VIN# JH2RC531-9K200001 TO JH2RC531-9K200420 FRAME Diagram

FILM, PROTECTOR

17503-MY1-300

$3.44

REFLECTOR, FR. SIDE REFLEX

33740-MEG-671

$14.65

BRACKET, RR. BRAKE PEDAL

46505-MEG-000

$43.62

FRAME SET

50010-MFE-671

Unavailable

BRACKET, R. RR. ENGINE HANGER (UPPER)

50171-MEG-000

$5.05

BRACKET, R. RR. ENGINE HANGER (LOWER)

50172-MEG-770

$21.64

BRACKET, L. RR. ENGINE HANGER (UPPER)

50173-MEG-670

$6.39

PLATE, FR. ENGINE HANGER (UPPER) This part replaces 50176-MFE-670.

50176-MFE-671

$20.13

PLATE, FR. ENGINE HANGER (UPPER)

50176-MFE-671

$20.13

COLLAR, ENGINE HANGER

50363-KT7-000

$14.25

HOLDER ASSY., HELMET (COO) This part replaces 50710-GCN-003.

50710-GCN-305

$26.23

COVER, R. FR. SIDE

63550-MEG-670

Unavailable

COVER, L. FR. SIDE

63650-MEG-670

Unavailable

BOLT, ENGINE HANGER

90103-GC2-920

$11.87

BOLT, FLANGE (10X208)

90104-MBS-000

$9.77

SCREW, PAN (6X12)

90106-MAV-000

$2.18

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.67

BOLT, UBS (10X141)

90154-KE7-000

$5.43

CAP, R. LOCK NUT (BOTH SIDES)

90312-MB0-700

$18.22

CLAMP, COVER

90655-MEG-000

$1.51

CLIP, CABLE (8MM)

90690-GHB-631

$2.08

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

NUT, FLANGE (10MM)

90303-428-900

$3.35

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.35

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

BOLT, FLANGE (8X20)

95701-08020-07

$1.87

BOLT, FLANGE (10X25)

95701-10025-07

$1.49
