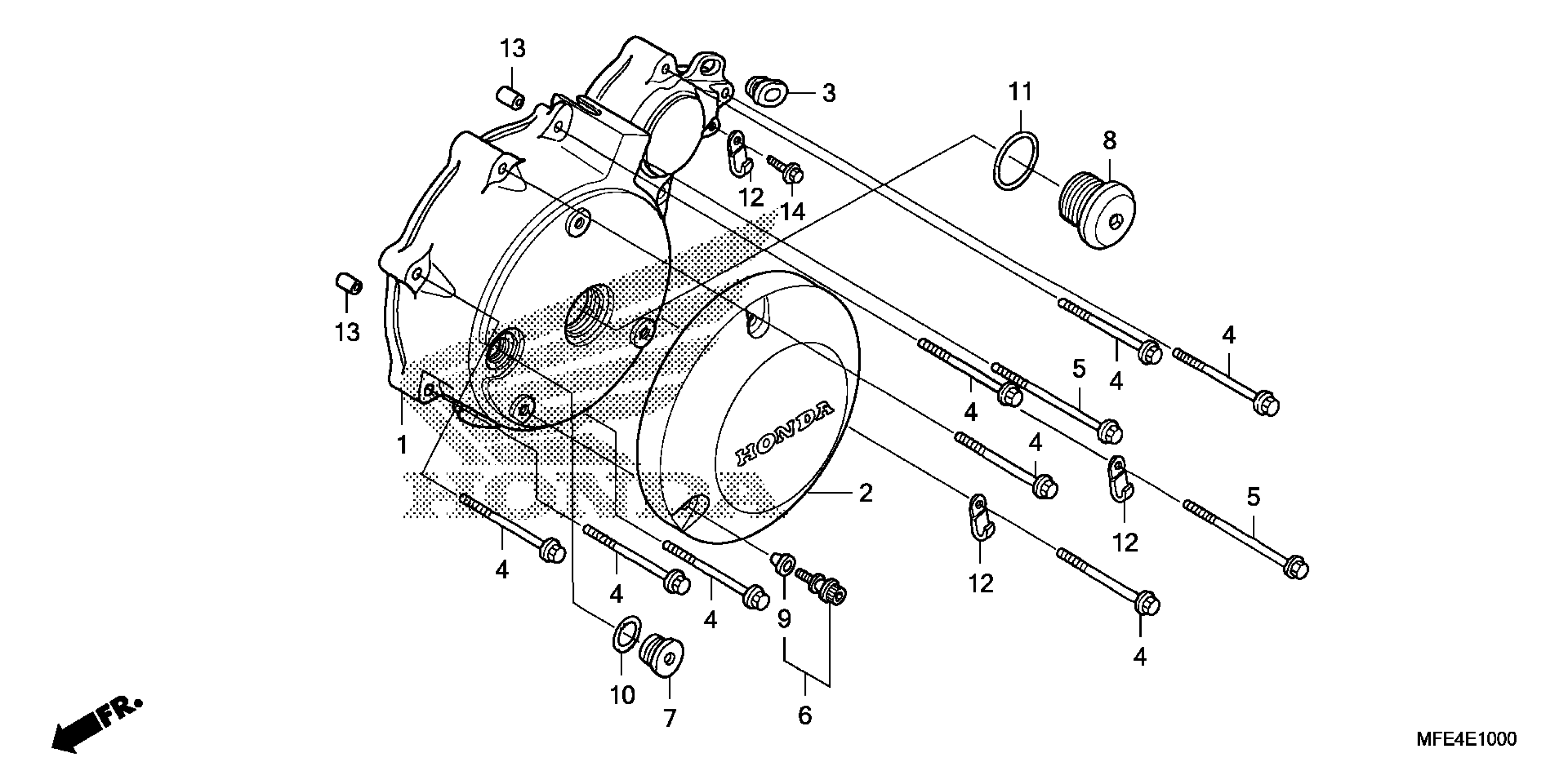

Honda VT750C2AC (07) SHADOW SPIRIT, JPN, VIN# JH2RC531-7M000001 TO JH2RC531-7M099999 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE (CONTRLD PART:CONTACT TEHCLINE OR USE TL CONNECT TO ORDER)

11341-MEG-000

$175.85

COVER, ALTERNATOR

11360-MEG-000

$83.81

GROMMET, SIDE COVER

83551-MA6-000

$3.35

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.92

BOLT, FLANGE (6X45) (NSHF)

90006-GHB-720

$1.87

BOLT ASSY., SPECIAL (6X22) (FRAME NO.)

90020-MBA-D20

$4.24

CAP (14MM)

90084-MN8-010

$12.82

CAP (30MM)

90087-KT7-000

$19.74

RUBBER, MOUNTING (FRAME NO.)

90543-MBA-000

$2.92

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003.

91356-425-005

$2.92

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.92

CLIP (2X70)

91413-679-000

$9.23

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
