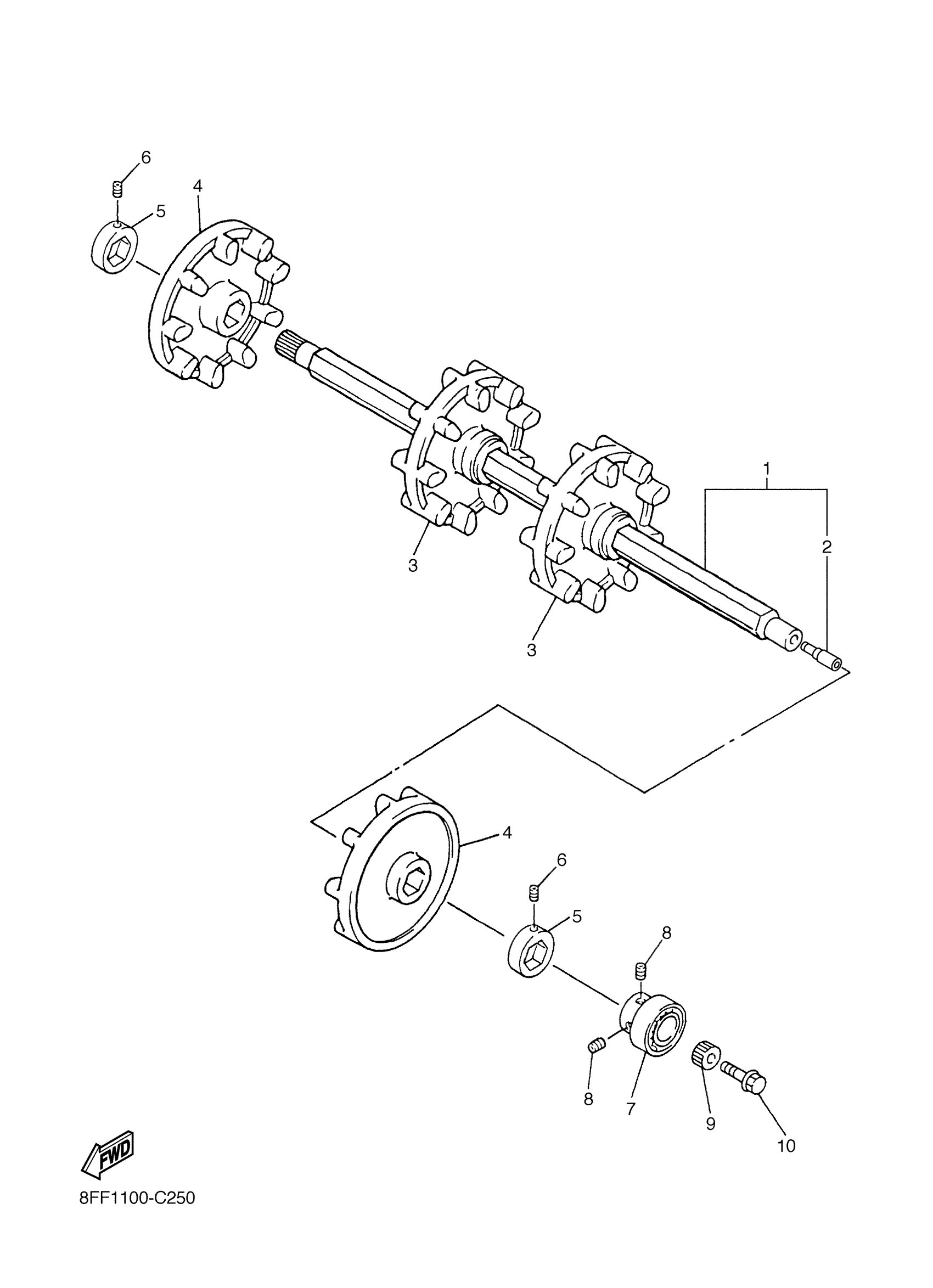

Yamaha VT70J (VENTURE 700) 8FF1 2004 TRACK DRIVE 1 Diagram

#

Description
Price

1

AXLE, FRONT

8EK-47511-00-00

Unavailable

2

CONNECTOR

8K4-47577-00-00

$15.47

3

WHEEL, SPROCKET 1

8CM-47531-10-00

$137.70

4

WHEEL, SPROCKET 2

8BW-47532-10-00

$111.83

5

COLLAR

8BW-47526-00-00

$51.80

6

BOLT, SET (8K2)

90113-06039-00

$6.51

7

BEARING(8CJ)

93306-20589-00

$48.16

8

BOLT, SET

90113-06006-00

$3.34

9

JOINT

8EK-47715-00-00

$28.34

10

BOLT, WASHER BASED

90105-105A0-00

$8.61
