2004 Yamaha Venture 700 (VT70J) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 2004 Yamaha Venture 700 (VT70J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

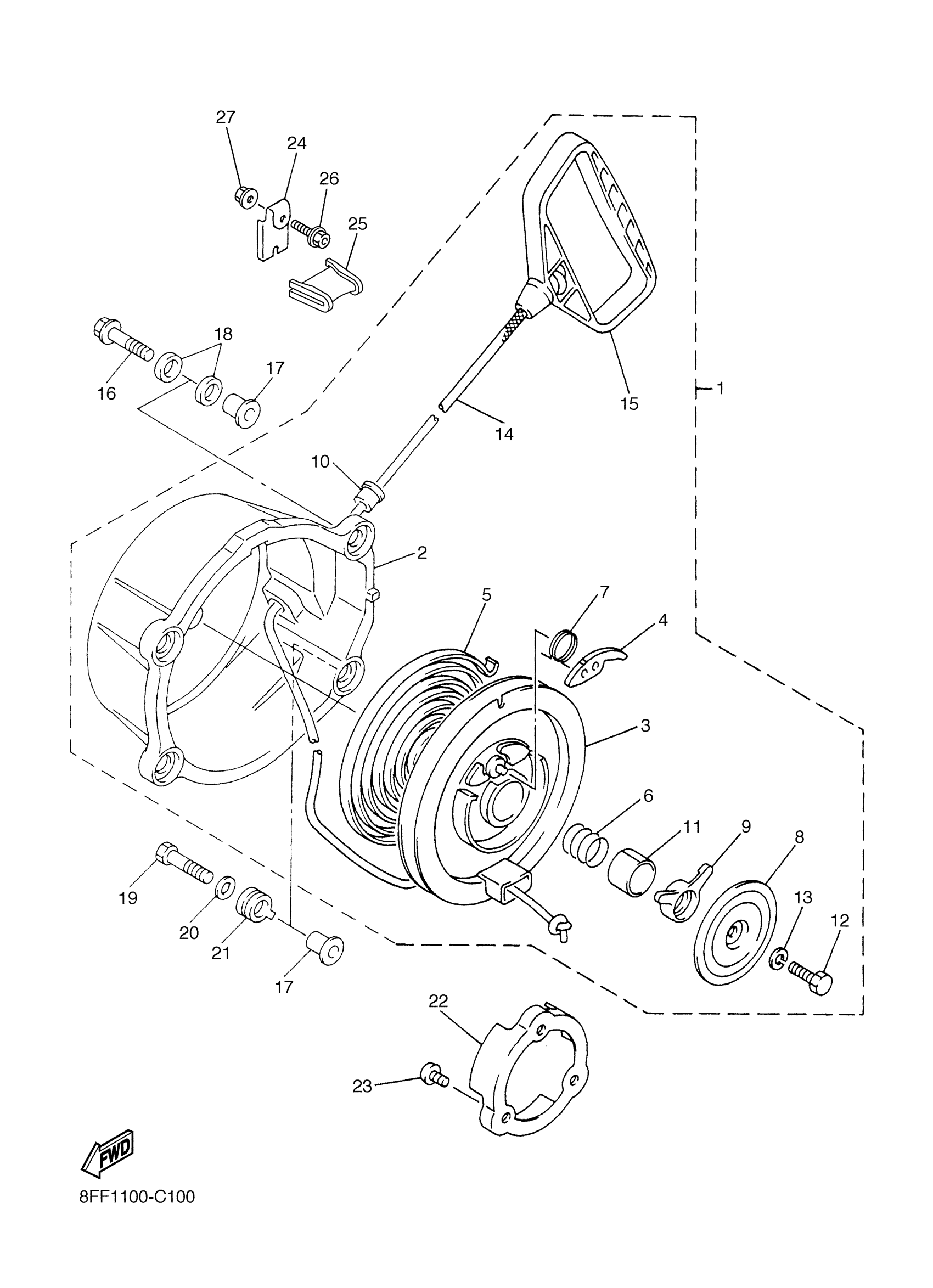

2004 Yamaha Venture 700 (VT70J) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSY

8EK-15710-00-00

1
Out of stock

2

CASE, STARTER

8EK-15711-00-00

—

$81.95

In stock

3

DRUM, SHEAVE

8DF-15714-01-00

1
Out of stock

4

PAWL, DRIVE

8EK-15741-00-00

—

$10.82

In stock

5

. SPRING, STARTER

8DF-15713-00-00

1
Out of stock

6

SPRING, FRICTION

8DF-15715-00-00

—

$7.72

In stock

7

. SPRING

8CH-15767-00-00

1
Out of stock

8

. PLATE, DRIVE

8DF-15716-00-00

1
Out of stock

9

. GUIDE, CAM

8DF-15735-00-00

1
Out of stock

10

GUIDE, ROPE

8F3-15758-00-00

1

$17.09

In stock

11

. BUSH

8DF-15753-00-00

1
Out of stock

12

. BOLT

8DF-15768-00-00

1
Out of stock

13

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

14

WIRE, STARTER (BRAIDED)

8CH-15751-00-00

1

$25.18

In stock

15

HANDLE, STARTER

8F3-15755-00-00

1

$23.00

In stock

16

BOLT, WITH WASHER

90119-08240-00

1
Out of stock

17

COLLAR

90387-08071-00

—

$8.11

In stock

18

BUSH (8M6)

90385-12036-00

—

$7.80

In stock

19

BOLT

97017-08035-00

—
Out of stock

20

WASHER(6TA)

92907-08600-00

—

$2.52

In stock

21

BUSH

90386-12001-00

1
Out of stock

22

PULLEY, STARTER

8DF-15723-00-00

—

$41.46

In stock

23

BOLT, BUTTON HEAD

92017-08012-00

—
Out of stock

24

GUIDE, ROPE

8DF-15758-10-00

1
Out of stock

25

HOLDER

8FF-1546C-00-00

—

$7.03

In stock

26

BOLT, FLANGE

95817-06014-00

—

$2.15

In stock

27

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock
