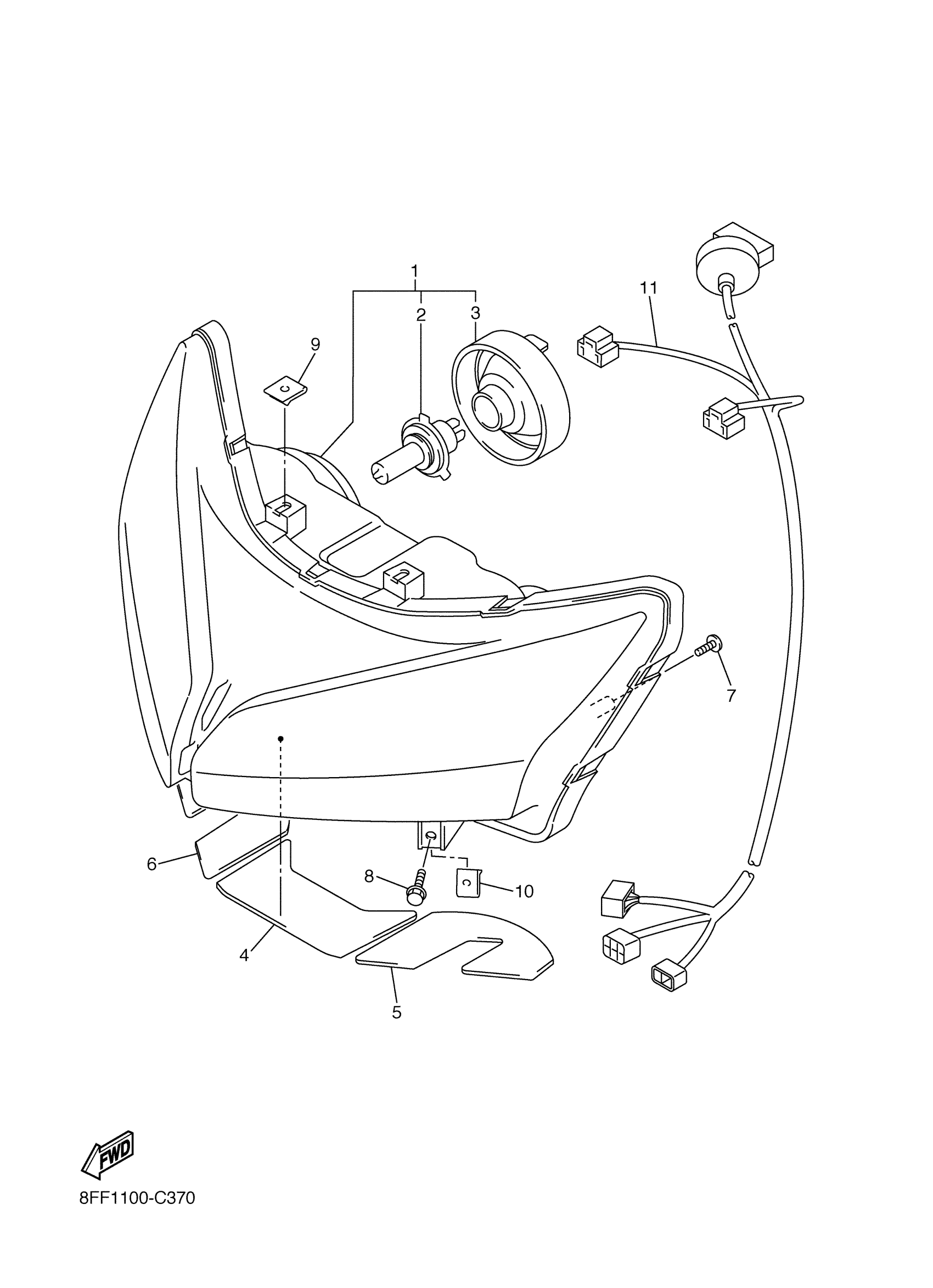

Find the part on the Headlight diagram for your 2004 Yamaha Venture 700 (VT70J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Yamaha Venture 700 (VT70J) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

8EK-84310-00-00

1
Out of stock

2

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

3

COVER, SOCKET

5GJ-84397-00-00

1
Out of stock

4

INSULATOR 1

8EK-8399N-00-00

—

$6.05

In stock

5

INSULATOR 2

8EK-8368L-00-00

—

$2.71

In stock

6

INSULATOR 3

8EK-8368M-00-00

—

$2.71

In stock

7

SCREW, TAPPING(4TV)

90167-05078-00

1

$5.12

In stock

8

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

9

NUT, SPRING(4ES)

90183-06069-00

1

$5.93

In stock

10

NUT, SPRING

90183-06100-00

1
Out of stock

11

CORD, HEADLIGHT

8FE-84359-00-00

1
Out of stock
