2004 Yamaha Venture 700 (VT70J) Engine Bracket Diagram

← All diagrams

Find the part on the Engine Bracket diagram for your 2004 Yamaha Venture 700 (VT70J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

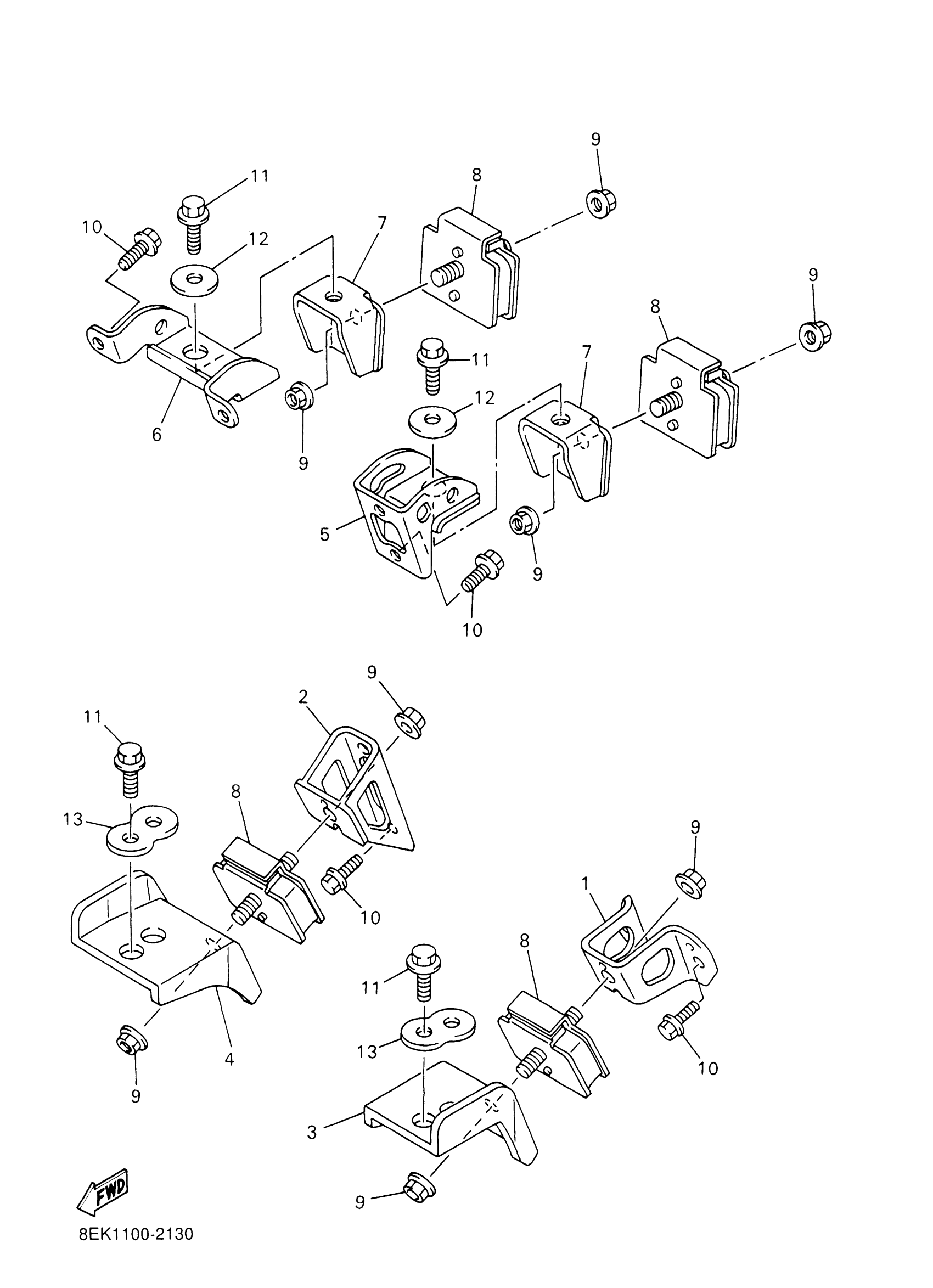

2004 Yamaha Venture 700 (VT70J) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT UPPER 1

8EK-21415-00-00

1
Out of stock

2

BRACKET, FRONT UPPER 2

8EK-21416-00-00

1
Out of stock

3

BRACKET, FRONT LOWER 1

8DF-21417-01-00

1
Out of stock

4

BRACKET, FRONT LOWER 2

8DF-21418-00-00

—

$34.05

In stock

5

BRACKET, REAR UPPER 1

8EK-21425-00-00

1
Out of stock

6

BRACKET, REAR UPPER 2

8EK-21426-00-00

1
Out of stock

7

BRACKET, REAR LOWER 1

8CR-21427-10-00

—

$24.26

In stock

8

DAMPER 2

8CH-21486-10-00

—

$131.34

In stock

9

NUT, FLANGE(8AB)

95707-10500-00

1

$1.66

In stock

10

BOLT, WASHER BASED(JN9)

90105-081A7-00

1

$6.46

In stock

11

BOLT, FLANGE(3GD)

95817-10025-00

1

$6.17

In stock

12

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

13

PLATE, ENGINE MOUNT

8DF-2145B-10-00

1
Out of stock
