2004 Yamaha Venture 700 (VT70J) Crankcase Diagram

← All diagrams

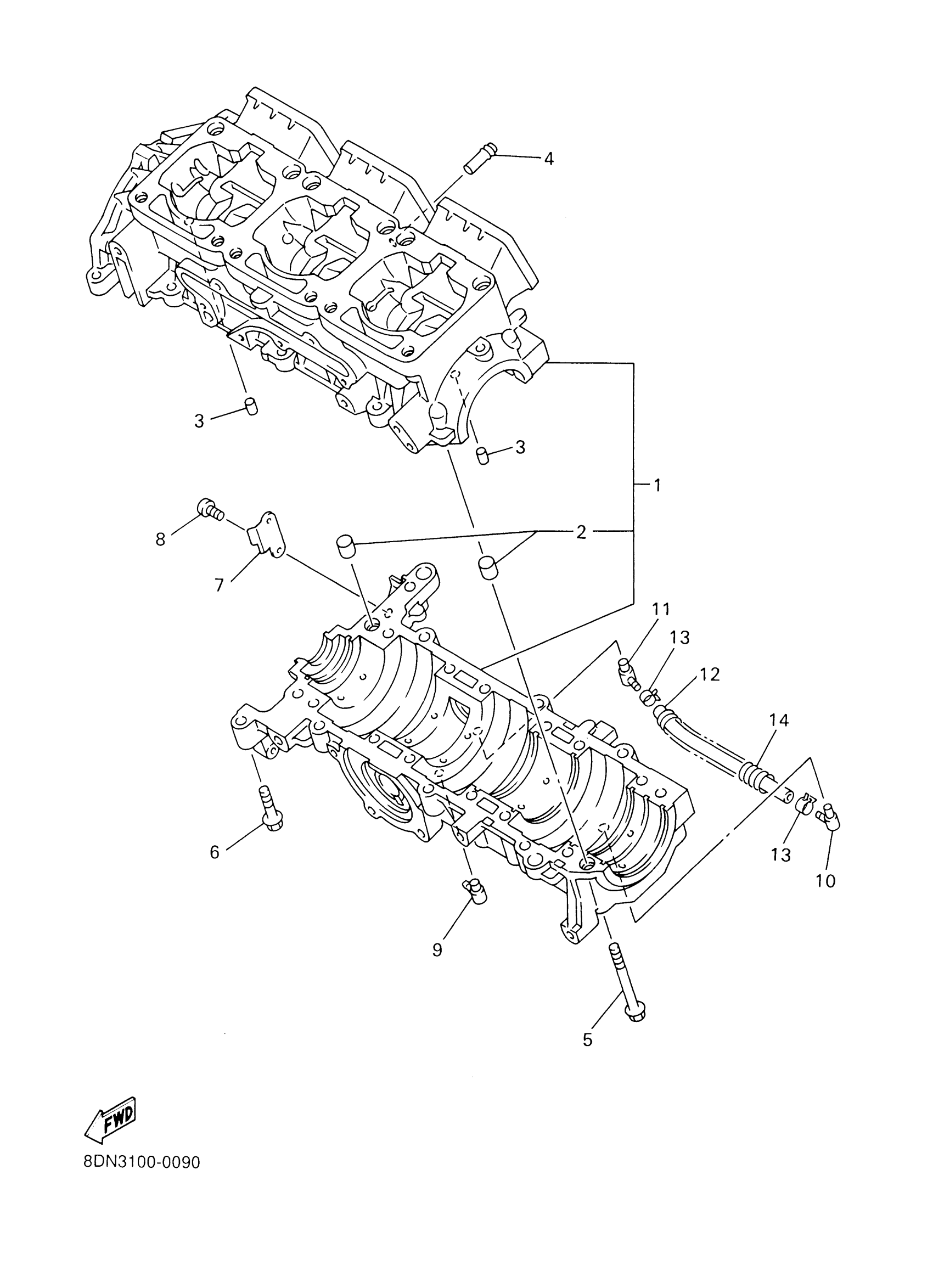

Find the part on the Crankcase diagram for your 2004 Yamaha Venture 700 (VT70J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Yamaha Venture 700 (VT70J) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

8DF-15100-10-00

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1
Out of stock

3

PIN, DOWEL (8G8)

93605-10108-00

1
Out of stock

4

JOINT, BREATHER

J38-11116-00-00

1
Out of stock

5

BOLT, FLANGE(JF2)

95817-08080-00

1
Out of stock

6

BOLT, FLANGE

95817-08040-00

1
Out of stock

7

CLAMP

90461-12001-00

1
Out of stock

8

SCREW, PAN

98517-06012-00

1
Out of stock

9

NOZZLE

353-13552-01-00

1
Out of stock

10

NOZZLE

8DF-13552-00-00

—
Out of stock

11

NOZZLE

8CH-13552-00-00

—
Out of stock

12

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

1
Out of stock

13

CLIP (2A6)

90468-02025-00

1
Out of stock

14

SPRING, COMPRESSION (10L)

90501-08668-00

1
Out of stock
