- VT70J (VENTURE 700) 8FF1 2004
ELECTRICAL 1

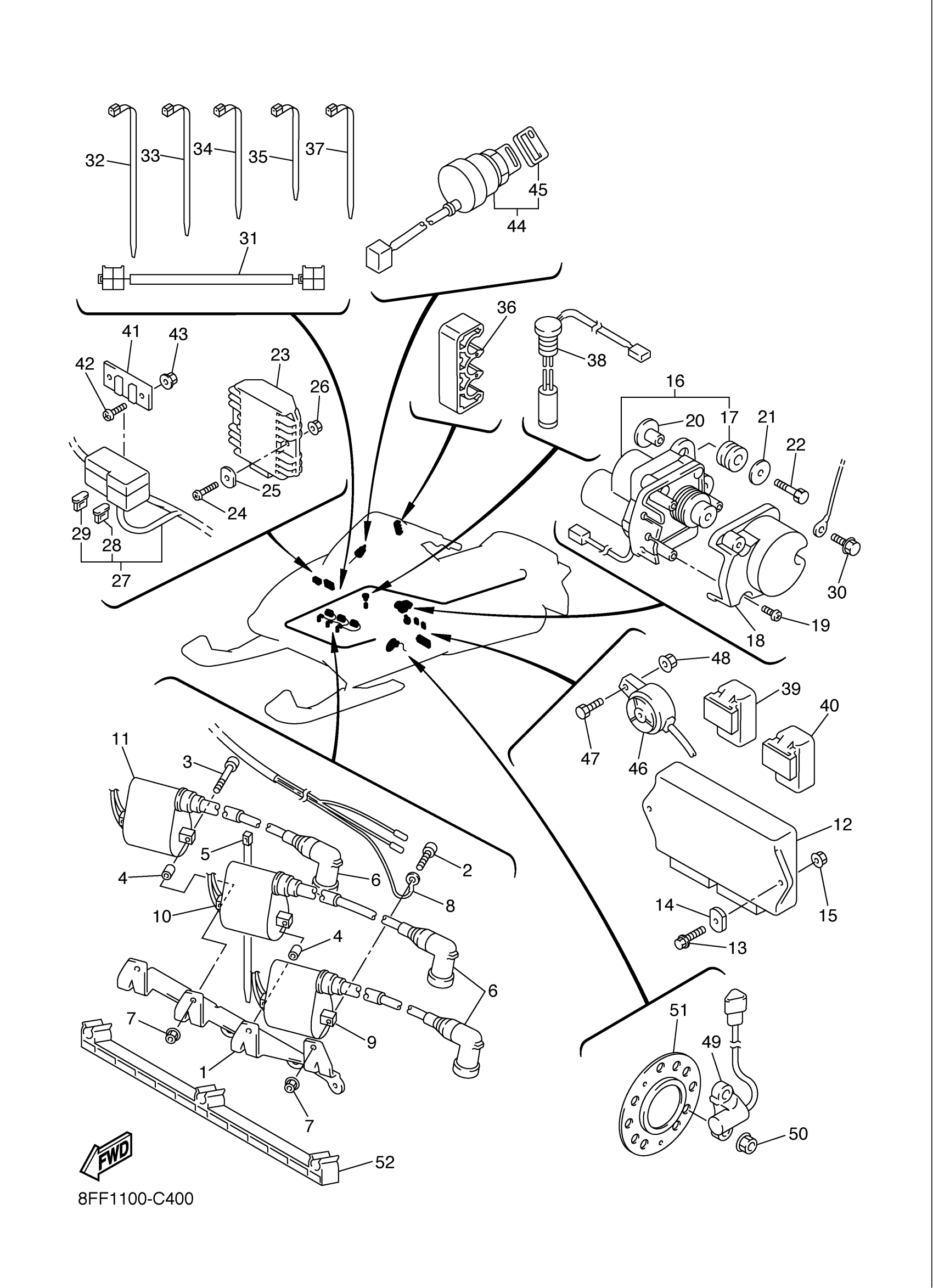

Yamaha VT70J (VENTURE 700) 8FF1 2004 ELECTRICAL 1 Diagram
#
1
BRACKET, IGNITION COIL
8EK-82316-00-00
Unavailable
2
BOLT,SOCKET
91317-06020-00
Unavailable
3
BOLT,SOCKET
91317-06040-00
$3.76
4
COLLAR
90387-07020-00
$8.49
5
CLAMP(4FM)
90464-15195-00
$4.41
6
PLUG CAP ASSY
8DF-82370-00-00
$41.99
7
NUT,SELF-LOCKING
95607-06200-00
$12.49
8
WIRE, SUB LEAD
8EK-82509-00-00
Unavailable
9
IGNITION COIL ASSY
8DF-82310-10-00
Unavailable
10
IGNITION COIL ASSY
8DF-82310-10-00
Unavailable
11
IGNITION COIL ASSY
8DF-82310-10-00
Unavailable
12
C.D.I. UNIT ASSY
8FE-85540-00-00
Unavailable
13
BOLT, FLANGE
95817-06020-00
$3.81
14
NUT,SPEC'L SHAPE
90179-06W01-00
Unavailable
15
NUT, FLANGE(4MV)
95707-06500-00
$1.23
16
SERVO MOTOR ASSY
8DF-85820-00-00
Unavailable
17
GROMMET 839774310000
90480-14023-00
Unavailable
18
COVER, SERVO MOTOR
8DF-85829-00-00
Unavailable
19
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
20
COLLAR(52E)
90387-063G3-00
Unavailable
21
WASHER, PLATE
90201-06380-00
Unavailable
22
BOLT, HEXAGON
97017-06030-00
Unavailable
23
RECTIFIER & REGULATOR ASSY
5BN-81960-00-00
Unavailable
24
SCREW, BINDING
98907-06025-00
Unavailable
25
NUT,SPEC'L SHAPE
90179-06W01-00
Unavailable
26
NUT, FLANGE(4MV)
95707-06500-00
$1.23
27
WIRE HARNESS ASSY
8FF-82590-00-00
Unavailable
28
FUSE
5JJ-82151-20-00
Unavailable
29
. FUSE (10A)
67F-82151-40-00
Unavailable
30
BOLT(3JP)
97017-06010-00
Unavailable
31
WIRE, LEAD
8DM-8471G-00-00
Unavailable
32
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
33
CLAMP(4FM)
90464-15195-00
$4.41
34
CLAMP(4FM)
90464-15195-00
$4.41
35
CLAMP
90464-13077-00
Unavailable
36
CLAMP
90464-07007-00
Unavailable
37
CLAMP, HOSE(3KJ)
90460-15126-00
Unavailable
38
OIL LEVEL GAUGE ASSY
8CR-85720-02-00
Unavailable
39
RELAY ASSY (8DM-00)
8DM-81950-00-00
Unavailable
40
RELAY ASSY
5DM-81950-01-00
Unavailable
41
BRACKET
JT1-83614-00-00
Unavailable
42
SCREW, BINDING
98907-06014-00
Unavailable
43
NUT,SELF-LOCKING
95607-06200-00
$12.49
44
MAIN SWITCH ASSY
8FE-82510-00-00
Unavailable
45
CAP, KEY
526-82579-00-00
Unavailable
46
BUZZER
8CW-83383-00-00
Unavailable
47
BOLT(3JK)
97027-05020-00
Unavailable
48
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
49
SENSOR, SPEED
8FP-83755-01-00
Unavailable
50
NUT, NYLON
95717-08300-00
Unavailable
51
HOUSING, FRONT AXLE
8EK-47551-00-00
Unavailable
52
CLAMP
90464-07005-00
Unavailable
