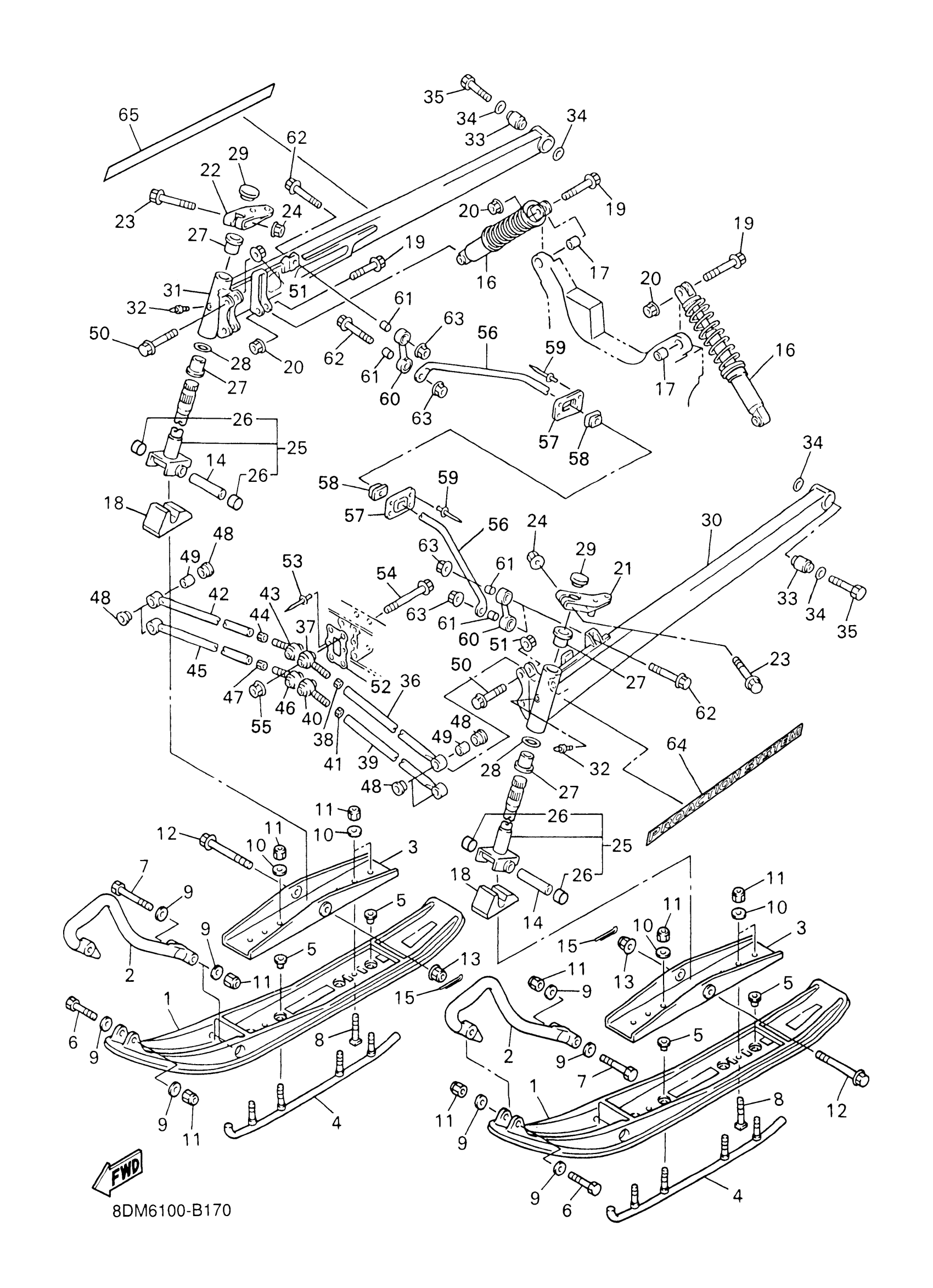

Yamaha VT700H (VENTURE 700) 8DM6 2003 SKI Diagram
#
1
SKI 1
8EK-23711-00-00
$231.99
2
BLACK 8DM HANDLE PLASTIC
8DM-23712-00-BK
Unavailable
3
SADDLE 1
8EK-23766-00-00
Unavailable
4
RUNNER 1
8EK-23731-01-00
$148.99
5
BUSH, SKI 1
8EK-F3751-00-00
Unavailable
6
BOLT, HEXAGON
97017-08055-00
$9.49
7
BOLT, HEXAGON
97027-08100-00
$5.60
8
BOLT, SQUARE
90108-08002-00
$12.49
9
WASHER, PLATE (3L7)
90201-08784-00
$3.23
10
WASHER, PLATE(3XP)
90201-086P8-00
$4.77
11
NUT, NYLON
95717-08300-00
$2.70
12
BOLT, WASHER BASED(8AB)
90105-10712-00
$17.99
13
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
14
COLLAR
90387-1012H-00
$24.99
15
PIN, COTTER
91490-20025-00
$1.99
16
ABSORBER ASSY 1
8DM-2376A-10-00
Unavailable
17
BUSH
8CR-2376B-00-00
Unavailable
18
STOPPER 1
8CR-23743-10-00
Unavailable
19
BOLT, FLANGE
90105-10030-00
Unavailable
20
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
21
ARM, OUTSIDE 1
8CR-23851-00-00
Unavailable
22
ARM, OUTSIDE 2
8CR-23852-00-00
Unavailable
23
BOLT, FLANGE(87Y)
95817-10055-00
Unavailable
24
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
25
COLUMN, SKI ASSY
8DM-23803-00-00
Unavailable
26
BUSH, BIMETAL FORMED(8CJ)
90384-16251-00
Unavailable
27
BUSH, SOLID
90381-25115-00
Unavailable
28
WASHER, PLATE (25G)
90201-301G3-00
Unavailable
29
CAP 1
8CR-23741-10-00
Unavailable
30
ARM, FRONT 1
8DM-2382E-10-00
Unavailable
31
ARM, FRONT 2
8DM-2382F-10-00
Unavailable
32
NIPPLE, GREASE
93700-06M03-00
Unavailable
33
DAMPER
8CR-2516A-00-00
Unavailable
34
WASHER, PLATE(8CJ)
90201-120T5-00
Unavailable
35
BOLT(8CJ)
90101-12046-00
Unavailable
36
ARM, CONTROL 1
8CR-2384E-20-00
Unavailable
37
JOINT 2
8DN-23823-00-00
Unavailable
38
NUT, HEXAGON
95337-12600-00
Unavailable
39
ARM, CONTROL 2
8CR-2384F-20-00
Unavailable
40
JOINT 3
8DN-23832-00-00
Unavailable
41
NUT
95314-14600-00
Unavailable
42
ARM, CONTROL 1
8CR-2384E-20-00
Unavailable
43
JOINT 2
8DN-23823-00-00
Unavailable
44
NUT, HEXAGON
95337-12600-00
Unavailable
45
ARM, CONTROL 2
8CR-2384F-20-00
Unavailable
46
JOINT 3
8DN-23832-00-00
Unavailable
47
NUT
95314-14600-00
Unavailable
48
BUSH, SOLID(8CJ)
90381-17110-00
Unavailable
49
COLLAR(8CJ)
90387-1009K-00
Unavailable
50
BOLT, FLANGE
90105-10030-00
Unavailable
51
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
52
WASHER
8DF-23779-00-00
Unavailable
53
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
54
BOLT, FLANGE
90105-124A2-00
Unavailable
55
NUT, U FLANGE
95607-12200-00
Unavailable
56
BAR, STABILIZER FRONT
8CW-2386E-00-00
Unavailable
57
COVER, STABILIZER FRONT
8CR-2386H-00-00
Unavailable
58
BUSH, STABILIZER FRONT
8CW-2386G-00-00
Unavailable
59
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
60
JOINT, STABILIZER 1
8CR-2385L-00-00
Unavailable
61
COLLAR(8V7)
90387-087L3-00
Unavailable
62
BOLT, FLANGE
95817-08040-00
Unavailable
63
NUT, SELF-LOCKING
90185-08169-00
Unavailable
64
EMBLEM 15
8EA-77371-30-00
Unavailable
65
EMBLEM 16
8EA-77372-30-00
Unavailable
