- VT700H (VENTURE 700) 8DM6 2003
ELECTRICAL 1

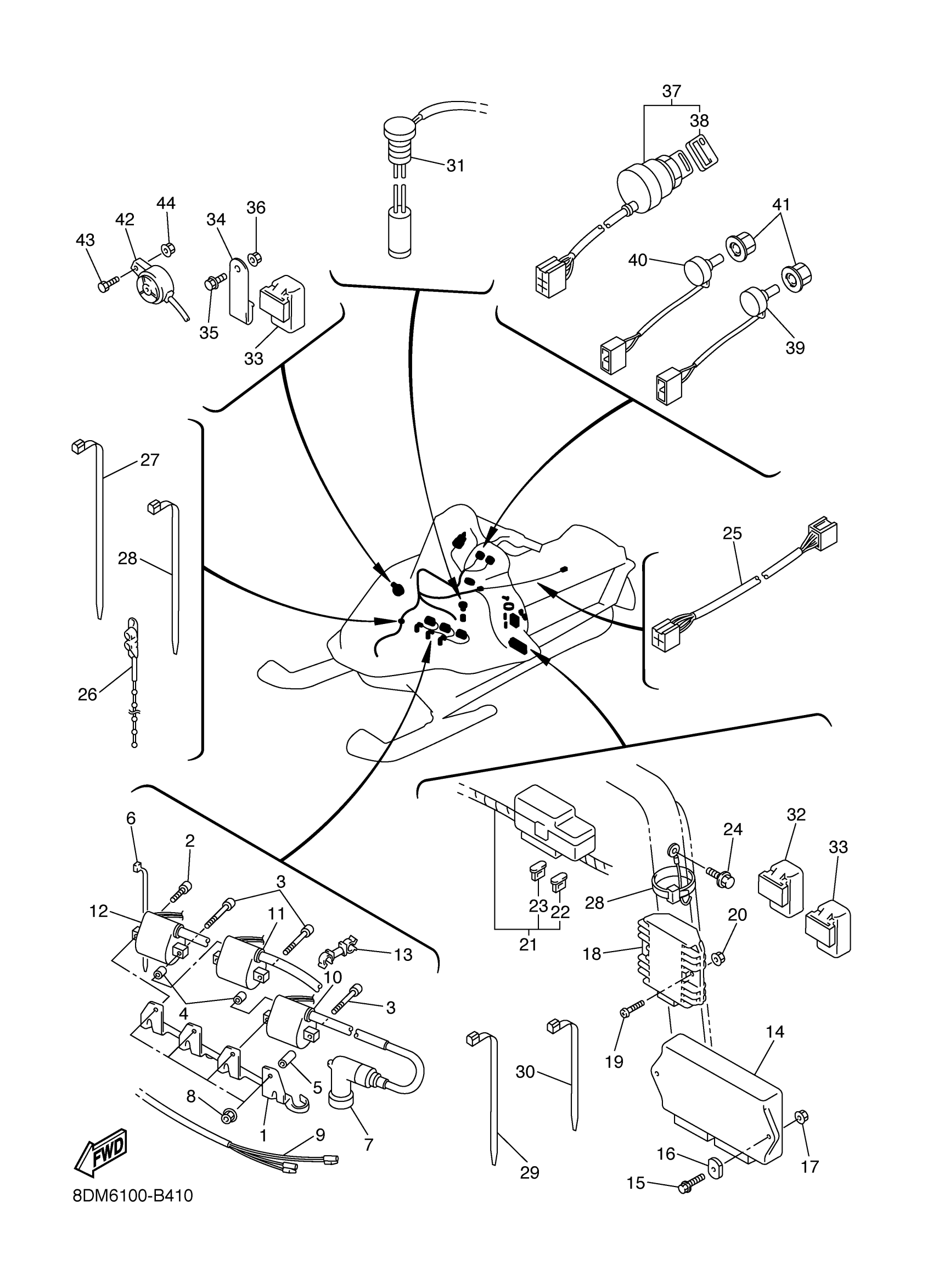

Yamaha VT700H (VENTURE 700) 8DM6 2003 ELECTRICAL 1 Diagram
#
1
BRACKET, IGNITION COIL
8DM-82316-00-00
Unavailable
2
BOLT,SOCKET
91317-06020-00
Unavailable
3
BOLT,SOCKET
91317-06040-00
$3.76
4
COLLAR
90387-07020-00
$8.49
5
COLLAR, LEVER 1
36Y-83913-01-00
$9.99
6
CLAMP(4FM)
90464-15195-00
$4.41
7
PLUG CAP ASSY
8DF-82370-00-00
$41.99
8
NUT,SELF-LOCKING
95607-06200-00
$12.49
9
WIRE, SUB LEAD
8DM-82509-00-00
Unavailable
10
IGNITION COIL ASSY
8DF-82310-10-00
Unavailable
11
IGNITION COIL ASSY
8DF-82310-10-00
Unavailable
12
IGNITION COIL ASSY
8DM-82310-30-00
$142.99
13
CLAMP
90464-10002-00
Unavailable
14
C.D.I. UNIT ASSY
8DM-85540-10-00
Unavailable
14
C.D.I. UNIT ASSY
8EA-85540-00-00
Unavailable
15
BOLT, FLANGE
95817-06020-00
Unavailable
16
NUT,SPEC'L SHAPE
90179-06W01-00
Unavailable
17
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
18
RECTIFIER & REGULATOR ASSY
4JH-81960-01-00
Unavailable
19
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
20
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
21
WIRE HARNESS ASSY
8DM-82590-10-00
Unavailable
22
FUSE (20A)
2GV-82151-00-00
Unavailable
23
FUSE (10A)
42X-82151-00-00
Unavailable
24
BOLT, FLANGE
95817-06010-00
Unavailable
25
WIRE, LEAD
8DM-8471G-00-00
Unavailable
26
CLAMP
90464-20031-00
Unavailable
27
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
28
CLAMP(4FM)
90464-15195-00
$4.41
29
CLAMP(4FM)
90464-15195-00
$4.41
30
CLAMP
90464-13077-00
Unavailable
31
OIL LEVEL GAUGE ASSY
8CR-85720-02-00
Unavailable
32
RELAY ASSY
5DM-81950-01-00
Unavailable
33
RELAY ASSY (8DM-00)
8DM-81950-00-00
Unavailable
34
. BRACKET 3
8DM-85152-00-00
Unavailable
35
BOLT, FLANGE
95817-06012-00
Unavailable
36
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
37
MAIN SWITCH ASSY
8DM-82510-00-00
Unavailable
38
CAP, KEY
526-82579-00-00
Unavailable
39
RESISTOR, VARIABLE
8DM-87283-00-00
Unavailable
40
RESISTOR, VARIABLE
8DM-87283-10-00
Unavailable
41
KNOB, VARIABLE RESISTOR
8DM-87284-00-00
Unavailable
42
BUZZER
8CW-83383-00-00
Unavailable
43
BOLT(3JK)
97027-05020-00
Unavailable
44
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
