2002 Yamaha Venture 700 (VT700G) Windshield Diagram

← All diagrams

Find the part on the Windshield diagram for your 2002 Yamaha Venture 700 (VT700G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

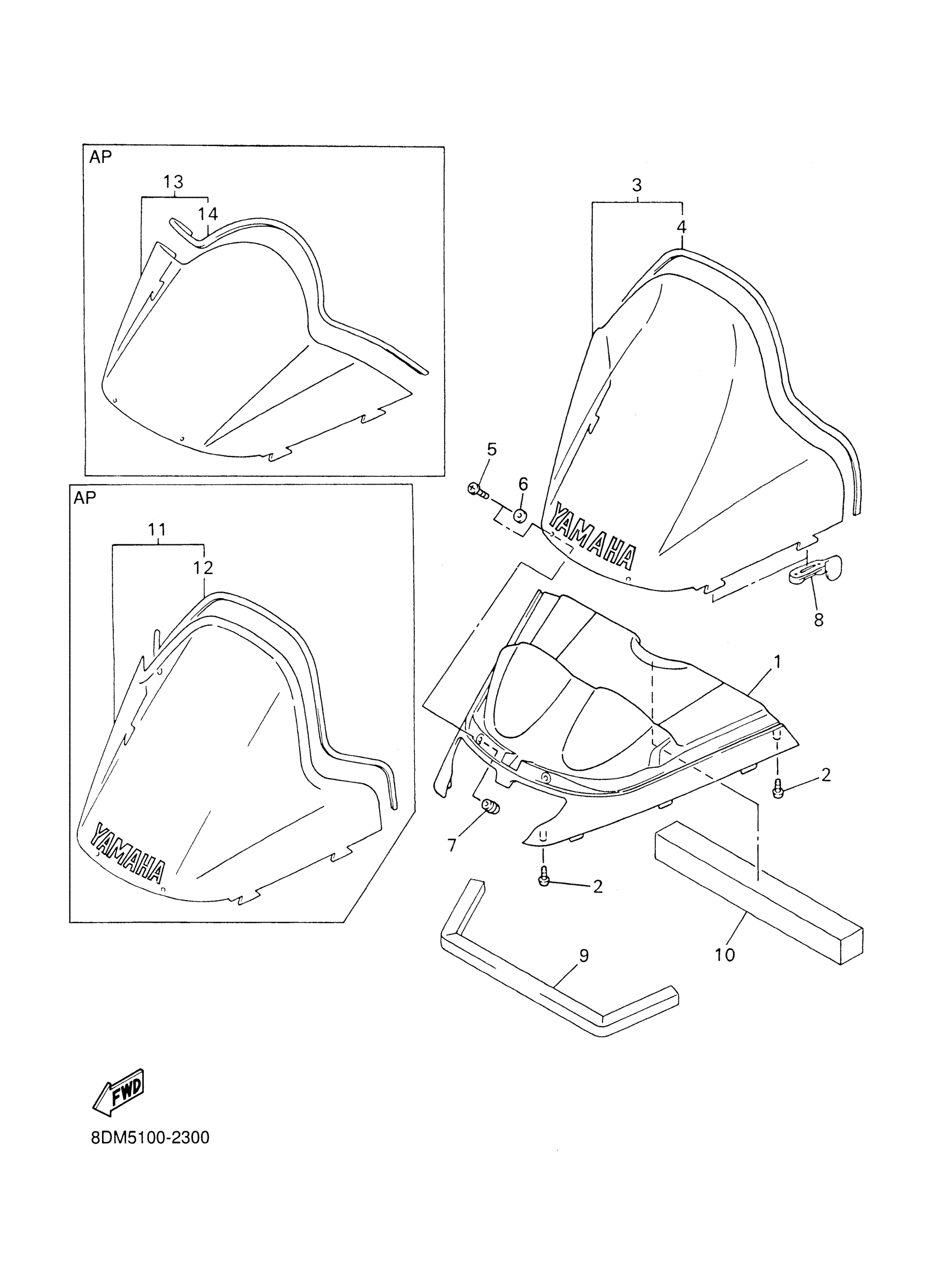

2002 Yamaha Venture 700 (VT700G) Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, HEADLIGHT

8DN-77251-20-00

1
Out of stock

2

SCREW, TAPPING(4MV)

97707-50016-00

1

$1.16

In stock

3

WINDSHIELD COMP.

8DY-77210-10-00

1
Out of stock

4

TRIM, UPPER

8DM-77213-00-00

—

$35.48

In stock

5

SCREW, ROUND HEAD(1UX)

90150-05024-00

1

$2.85

In stock

6

WASHER, PLATE(56J)

90201-106H5-00

1

$7.05

In stock

7

NUT(1KT)

90179-05523-00

1

$4.33

In stock

8

FASTNER

82H-77223-00-00

1

$7.63

In stock

9

DAMPER, NOISE 19

8CR-77279-00-00

1
Out of stock

10

SHIELD, NOISE 2

8CR-2199J-00-00

1

$30.09

In stock

11

WINDSHIELD COMP.

8DS-77210-10-00

1
Out of stock

12

TRIM,UPPER

87K-77213-00-00

1
Out of stock

13

WINDSHIELD COMP.

8DN-77210-20-00

1
Out of stock

14

TRIM,UPPER

87K-77213-00-00

1
Out of stock
