Description

Price

1

SPEEDOMETER ASSY (MILE/H)

8DF-83510-40-00

Unavailable

2

SOCKET CORD ASSY

8DF-83509-50-00

$62.99

3

BULB (12V-1.7W)

3GM-83517-00-00

$7.99

4

. KNOB, TRIP METER

8DF-83578-00-00

Unavailable

5

TACHOMETER ASSY

8DM-83540-00-00

Unavailable

6

SOCKET CORD ASSY

8DF-83509-10-00

Unavailable

7

BULB (12V-1.7W)

3GM-83517-00-00

$7.99

8

BRACKET, METER

8DF-83519-40-00

Unavailable

9

DAMPER

8DF-83523-40-00

Unavailable

10

WASHER, PLATE 8221447500

90201-06057-00

$5.60

11

WASHER, SPRING

92907-06100-00

$4.25

12

NUT(6TA)

95317-06600-00

$3.55

13

SPEEDOMETER CABLE ASSY

8CR-83550-10-00

$76.99

14

METER GEAR HOUSING COMP.

8CR-47700-00-00

$165.99

15

JOINT

8K4-47715-00-00

$5.60

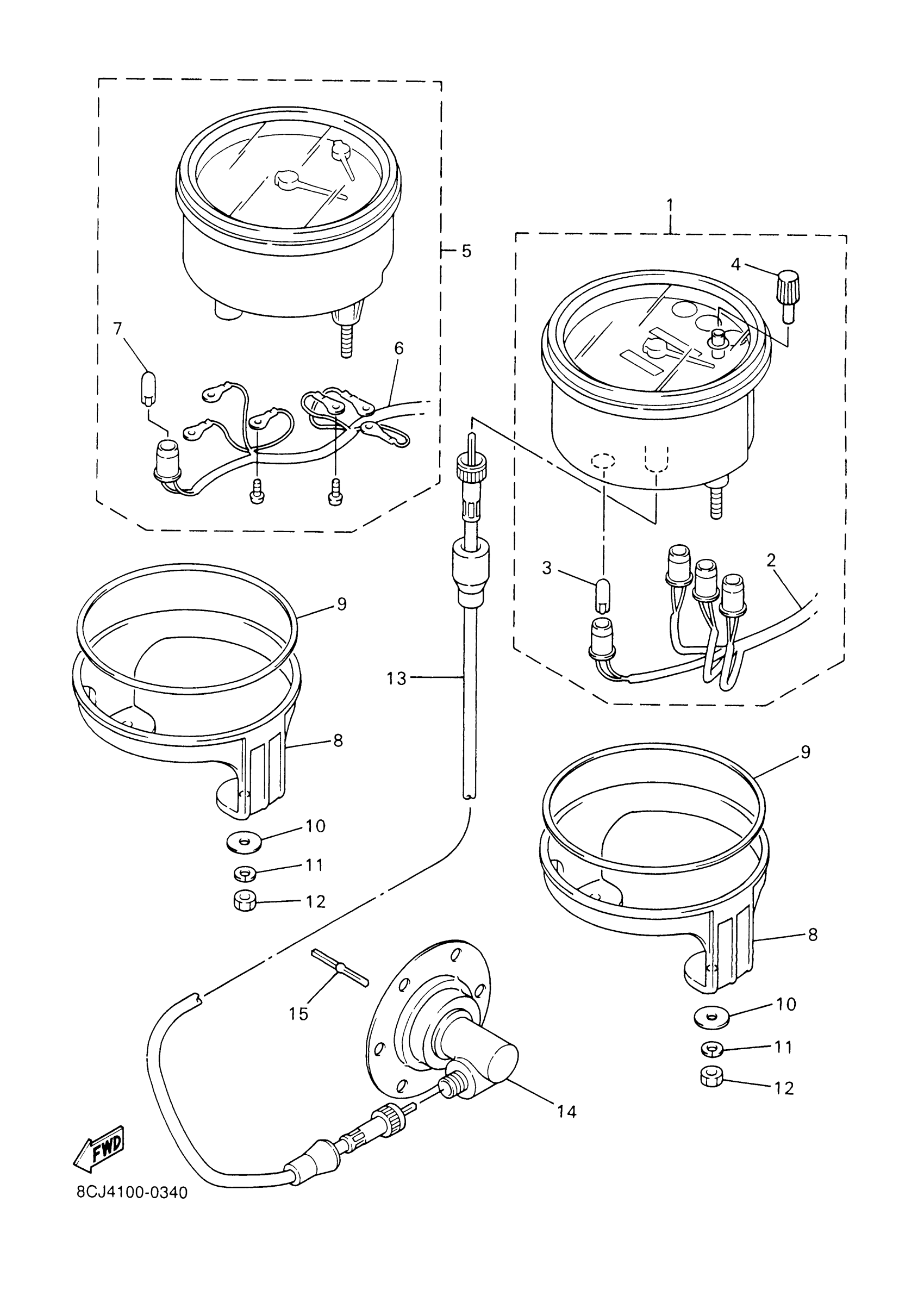

Yamaha VT700G (VENTURE 700) 8DM5 2002 METER Diagram

SPEEDOMETER ASSY (MILE/H)

SOCKET CORD ASSY

BULB (12V-1.7W)

. KNOB, TRIP METER

TACHOMETER ASSY

SOCKET CORD ASSY

BULB (12V-1.7W)

BRACKET, METER

DAMPER

WASHER, PLATE 8221447500

WASHER, SPRING

NUT(6TA)

SPEEDOMETER CABLE ASSY

METER GEAR HOUSING COMP.

JOINT
