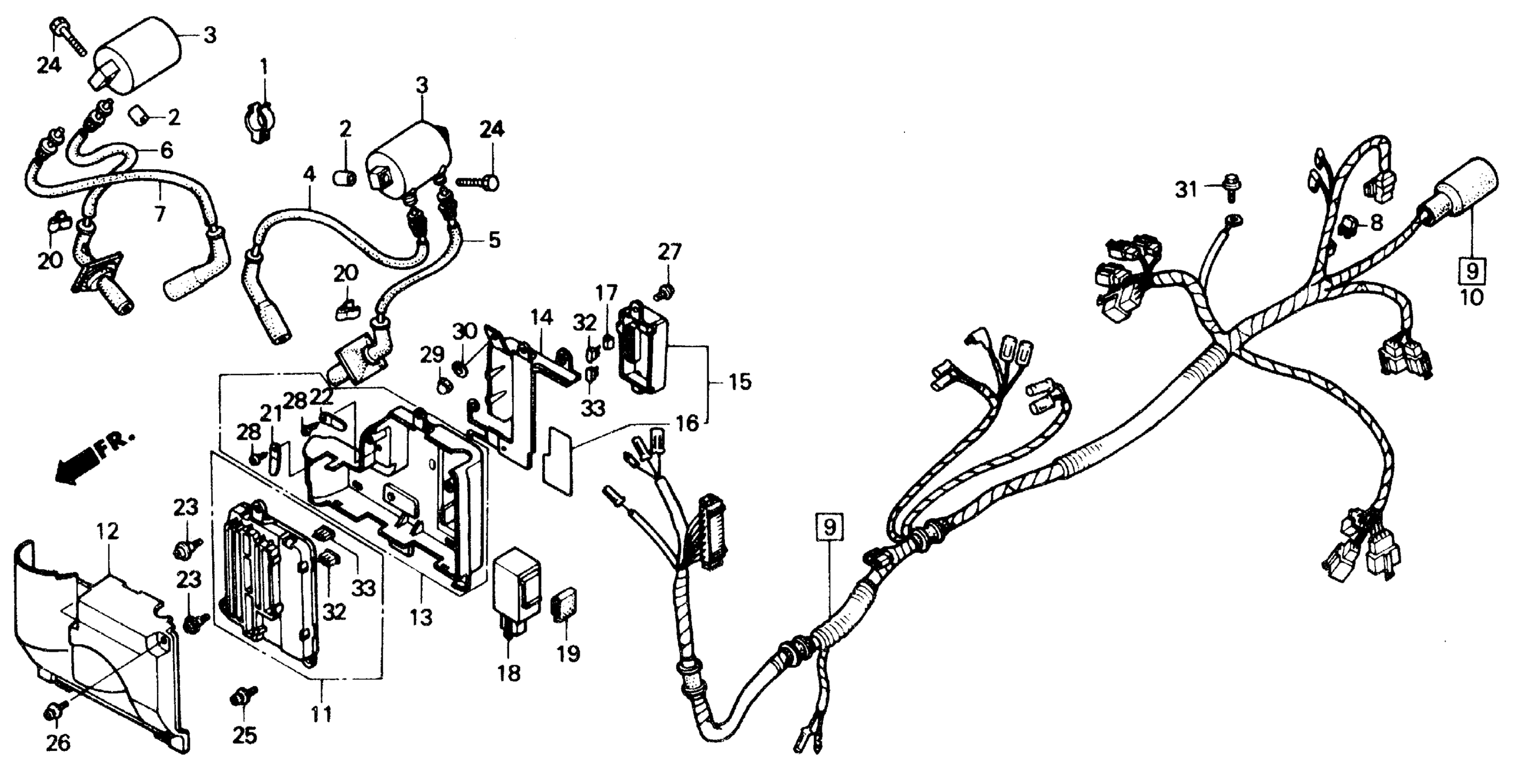

Honda VT700CA (87) SHADOW, JPN, VIN# JH2RC190-HM300001 TO JH2RC190-HM303205 WIRE HARNESS Diagram

#

Description
Price

1

CLIP, WATER HOSE

19523-MK7-000

Unavailable

2

COLLAR, IGNITION COIL

30505-MK7-000

Unavailable

3

COIL, IGNITION

30510-ME9-013

$170.87

4

CAP ASSY. 1, IGNITION (NOT AVAILABLE)

30751-MK7-000

Unavailable

5

CAP ASSY. 2, IGNITION (NOT AVAILABLE)

30752-MK7-000

Unavailable

6

CAP ASSY. 3, IGNITION (NOT AVAILABLE)

30753-MK7-000

Unavailable

7

CAP ASSY. 4, IGNITION (NOT AVAILABLE)

30754-MK7-000

Unavailable

8

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

8

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

9

WIRE HARNESS

32100-MK7-770

Unavailable

10

COVER, WIRE HARNESS CONNECTOR

32108-046-750

$3.87

11

BOX ASSY., JOINT (NOT AVAILABLE)

32450-MK7-003

Unavailable

12

COVER, JOINT BOX (NOT AVAILABLE)

32451-MK7-003

Unavailable

13

CASE, JOINT BOX (NOT AVAILABLE)

32452-MK7-003

Unavailable

14

BRACKET, JOINT BOX

32453-MK7-000

Unavailable

15

CASE, FUSE COVER

38203-MK7-671

Unavailable

16

LABEL, FUSE (NOT AVAILABLE)

38215-MK7-671

Unavailable

17

PULLER, FUSE (DAIICHI)

38235-SA5-004

Unavailable

18

RELAY, TURN SIGNAL (TATEISHI)

38301-MF8-771

$103.03

18

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MF8-773.

38301-KK9-952

$67.94

18

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MG9-681.

38301-KK9-952

$67.94

19

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.74

19

SUSPENSION, TURN SIGNAL RELAY

38306-MF5-770

$5.77

20

CLAMP, SPEEDOMETER SENSOR WIRE

61108-MB0-000

Unavailable

21

CLIP (A)

90681-MK7-003

Unavailable

22

CLIP (B)

90682-MK7-003

Unavailable

23

SCREW, PAN (5X5)

91508-187-000

$2.83

24

BOLT, HEX. (6X45) This part replaces 92000-06045-4J.

92101-06045-4J

Unavailable

24

BOLT, HEX. (6X45)

92101-06045-4J

Unavailable

25

SCREW-WASHER (5X12)

93891-05012-08

$1.49

25

SCREW-WASHER (5X12) This part replaces 93891-05012-18.

93891-05012-08

$1.49

26

SCREW-WASHER (5X14)

93891-05014-07

$1.49

26

SCREW-WASHER (5X14) This part replaces 93891-05014-17.

93891-05014-07

$1.49

27

SCREW-WASHER (5X12)

93893-05012-07

$1.49

27

SCREW-WASHER (5X12) This part replaces 93893-05012-17.

93893-05012-07

$1.49

28

SCREW, TAPPING (4X6)

93901-24020

$1.49

29

NUT, CAP (6MM)

94021-06070-0S

$1.62

30

WASHER, SPRING (6MM)

94111-06700

$1.49

31

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

31

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

32

FUSE, BLADE (10A)

98200-31000

$1.49

33

FUSE, BLADE (15A)

98200-31500

$1.49
