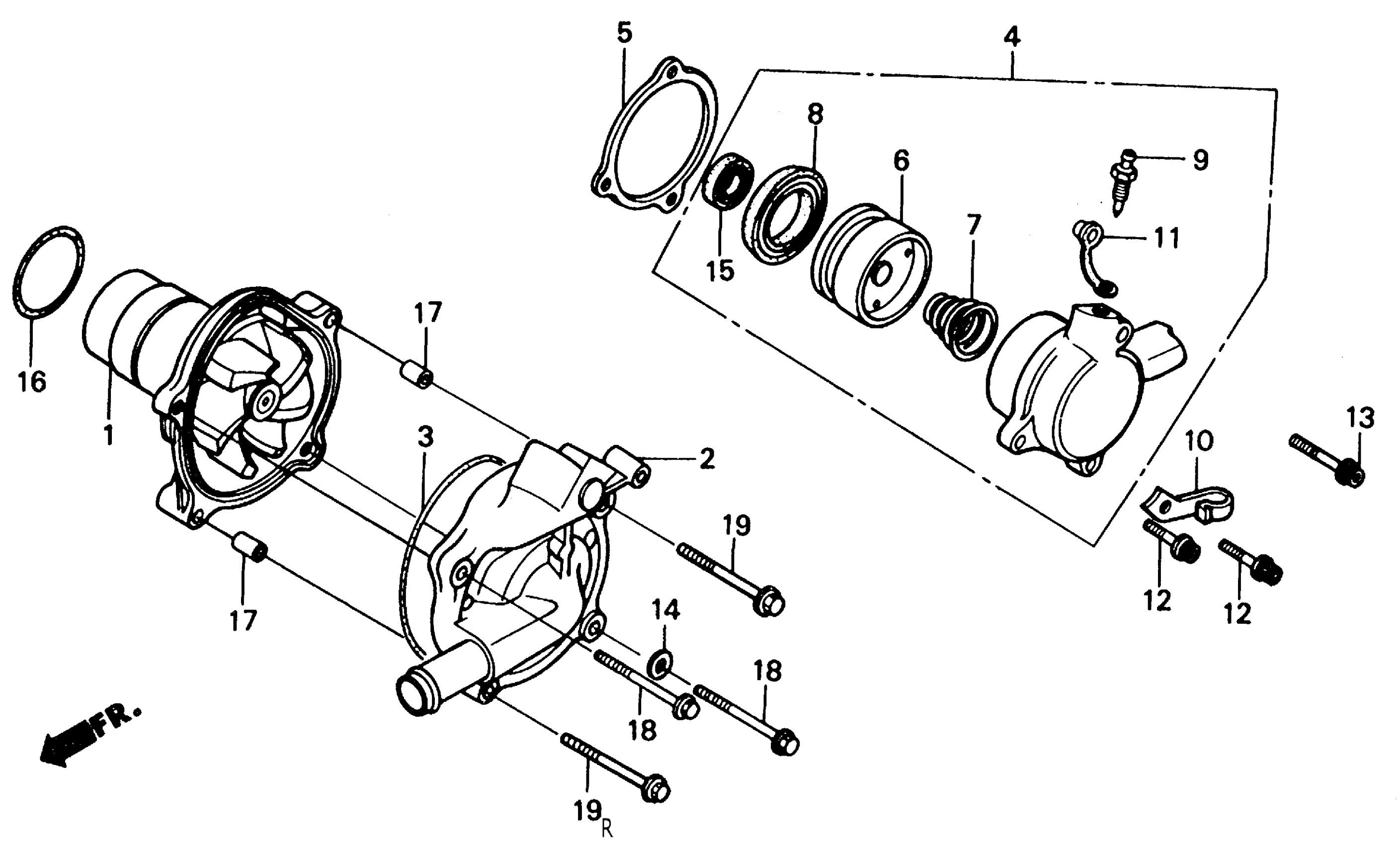

Honda VT700CA (87) SHADOW, JPN, VIN# JH2RC190-HM300001 TO JH2RC190-HM303205 WATER PUMP Diagram

#

Description
Price

1

CAP, RADIATOR This part replaces 19045-MB3-000.

19045-MZ3-405

$32.49

2

THERMOSTAT

19300-MB0-003

$52.78

3

CASE, THERMOSTAT

19311-MK7-671

Unavailable

4

NECK, FILLER

19318-MK7-671

Unavailable

5

PIPE, INLET WATER This part replaces 19501-MG8-000.

19501-MM8-790

Unavailable

5

PIPE, INLET WATER This part replaces 19501-MM8-000.

19501-MM8-790

Unavailable

5

PIPE, INLET WATER

19501-MM8-790

Unavailable

6

JOINT A, WATER HOSE

19503-MG8-000

Unavailable

7

JOINT B, WATER HOSE

19504-MG8-000

Unavailable

8

HOSE A, IN. WATER

19505-MG8-000

Unavailable

9

HOSE B, IN. WATER (NOT AVAILABLE)

19506-MG8-000

Unavailable

10

PIPE, FR. OUTLET WATER (NOT AVAILABLE)

19511-MK7-770

Unavailable

11

PIPE, RR. OUTLET WATER (NOT AVAILABLE)

19512-MK7-770

Unavailable

12

CLIP B, HOSE

19514-ME9-003

$5.64

13

CLAMP B, WATER HOSE

19517-MB6-000

Unavailable

14

HOSE A, WATER OUTLET (NOT AVAILABLE)

19521-MK7-670

Unavailable

15

HOSE B, WATER OUTLET (NOT AVAILABLE)

19522-MK7-671

Unavailable

16

THERMO UNIT (DENSO)

37750-PC1-004

$81.34

17

BOLT, FLANGE SOCKET (6X16)

90071-MG8-000

$2.66

18

O-RING (18.3X2.3) (ARAI)

91301-147-023

$2.20

19

O-RING

91307-MK7-671

Unavailable

20

SEAL, WATER PIPE (ARAI)

91315-ME9-003

$4.53

20

SEAL, WATER PIPE This part replaces 91315-ME9-004.

91315-ME9-003

$4.53

21

O-RING

91356-169-003

$2.92

22

NUT, FLANGE (6MM)

94050-06080

$1.49

23

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

24

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

25

BOLT, FLANGE (6X22)

96001-06022-07

$1.85

26

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

27

BOLT, FLANGE (6X35)

96001-06035-07

$2.06
