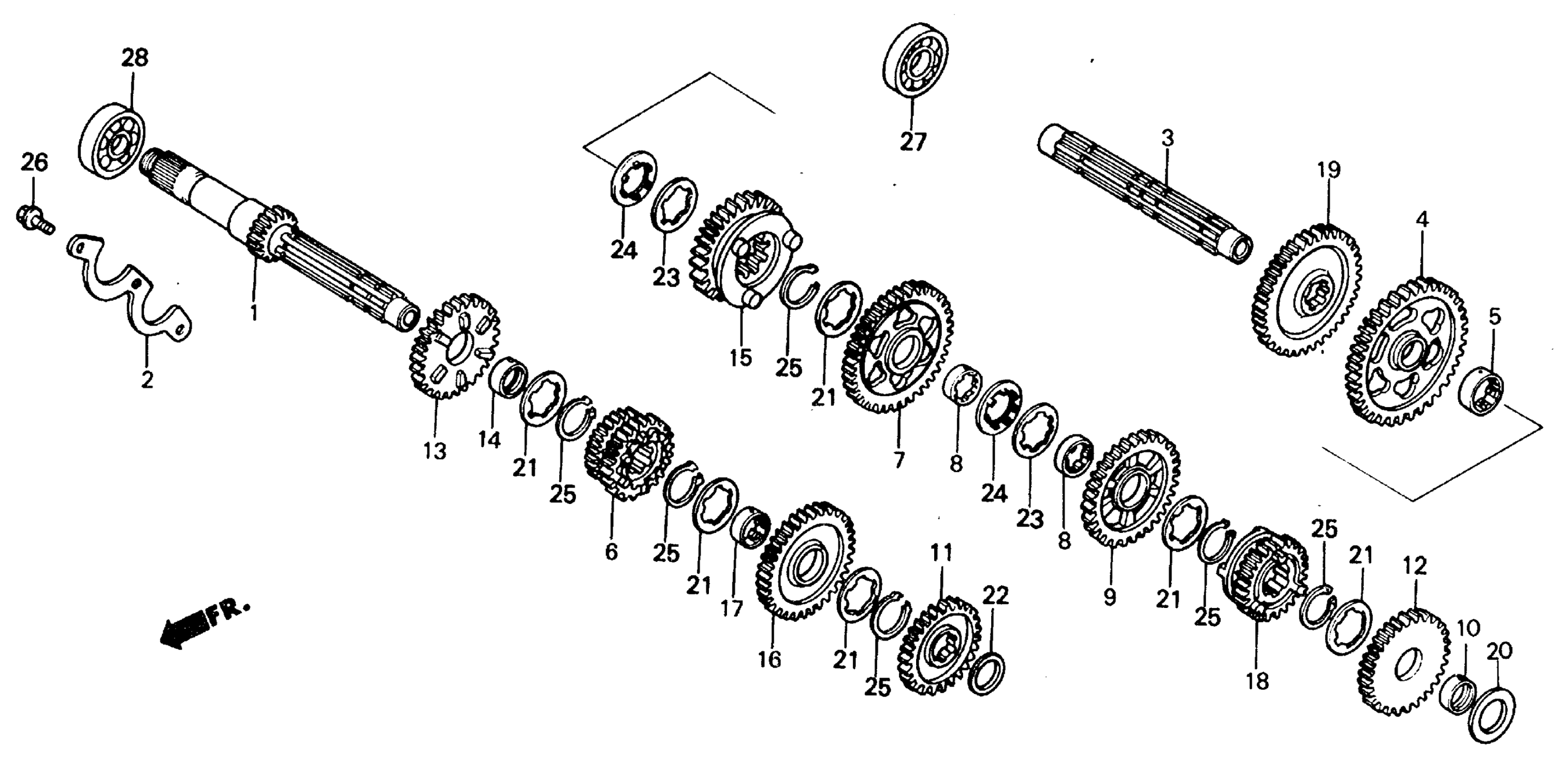

Honda VT700CA (87) SHADOW, JPN, VIN# JH2RC190-HM300001 TO JH2RC190-HM303205 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (17T)

23211-MK7-770

Unavailable

2

PLATE, BEARING

23212-MK7-670

$15.64

3

COUNTERSHAFT, TRANSMISSION

23221-MK7-770

Unavailable

4

GEAR, COUNTERSHAFT FIRST (39T)

23421-ME9-000

Unavailable

5

COLLAR, SPLINE (25X28X10.8)

23422-ME9-000

Unavailable

6

GEAR, MAINSHAFT SECOND & THIRD (21T,24T)

23431-MK7-670

Unavailable

7

GEAR, COUNTERSHAFT SECOND (33T)

23441-MK7-670

Unavailable

8

COLLAR, SPLINE (25X9.5)

23442-MB0-000

Unavailable

9

GEAR, COUNTERSHAFT THIRD (30T)

23461-MK7-672

Unavailable

10

COLLAR (25X10) (NOT AVAILABLE)

23462-MB0-000

$17.25

11

GEAR, MAINSHAFT FOURTH (26T)

23471-MK7-670

Unavailable

12

GEAR, COUNTERSHAFT FOURTH (28T)

23481-MK7-670

Unavailable

13

GEAR, MAINSHAFT FIFTH (29T)

23491-MK7-670

Unavailable

14

COLLAR (25X12)

23495-MB0-000

$26.23

15

GEAR, COUNTERSHAFT FIFTH (26T) This part replaces 23501-MB0-010.

23501-MN0-000

$140.74

15

GEAR, COUNTERSHAFT FIFTH (26T)

23501-MN0-000

$140.74

16

GEAR, MAINSHAFT SIXTH (32T)

23511-MK7-670

Unavailable

17

COLLAR, SPLINE (25X12.5)

23512-MB0-000

Unavailable

18

GEAR, COUNTERSHAFT SIXTH (24T) (NOT AVAILABLE)

23521-MB0-010

Unavailable

19

GEAR, FINAL DRIVE (36T) (NOT AVAILABLE)

23725-ME9-000

Unavailable

20

WASHER, THRUST (20MM) (NOT AVAILABLE) This part replaces 23901-567-010.

90454-HA0-000

Unavailable

21

WASHER, THRUST (25X34)

90452-371-000

$4.82

22

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

23

WASHER B, THRUST (25MM)

90461-286-000

Unavailable

24

WASHER, LOCK (25MM)

90462-323-000

$3.77

25

CIRCLIP (OUTER) (25MM)

90601-300-000

$3.83

26

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

27

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40

28

BEARING, RADIAL BALL (6305)

96100-63050-00

$15.27
