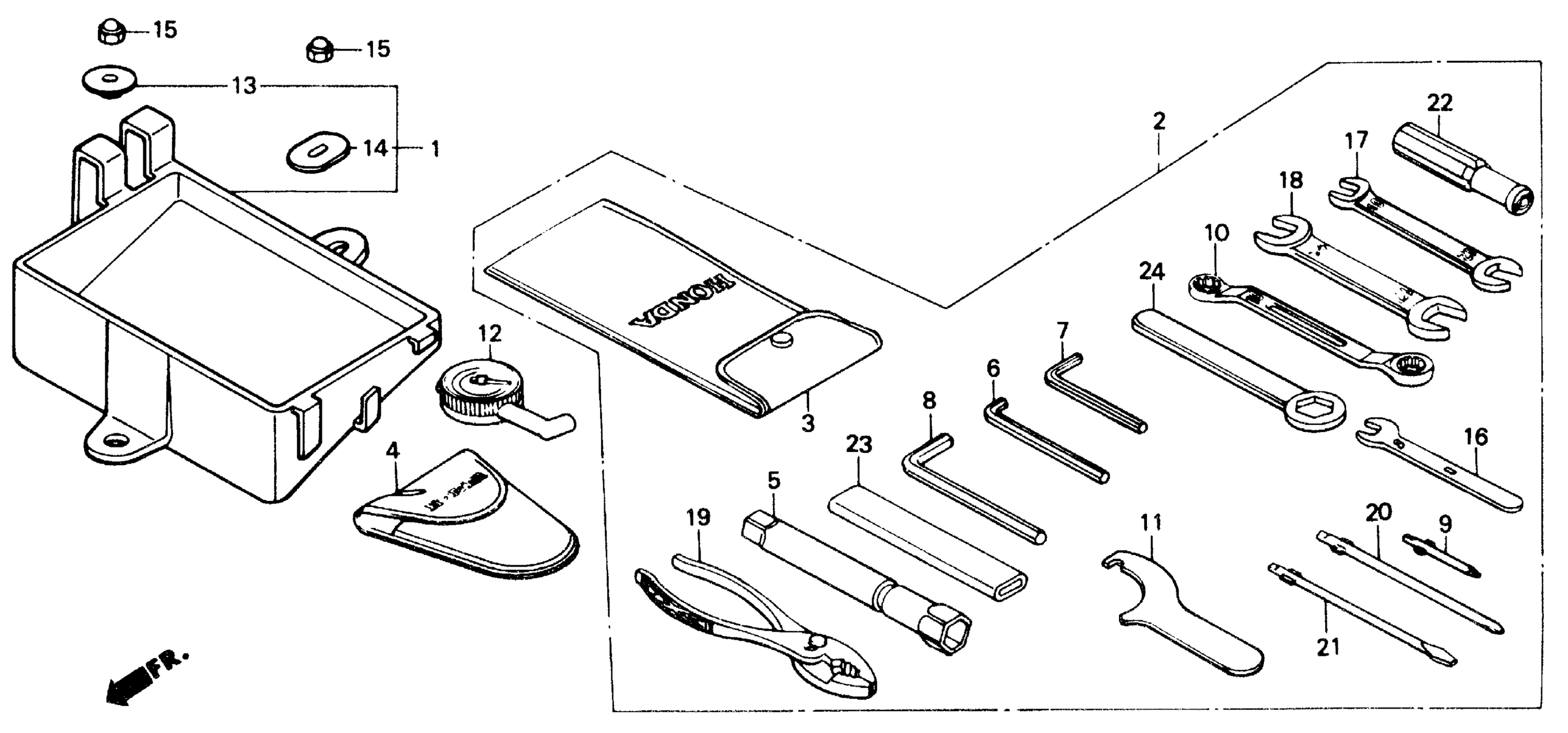

Honda VT700CA (87) SHADOW, JPN, VIN# JH2RC190-HM300001 TO JH2RC190-HM303205 TOOLS Diagram

#

Description
Price

1

CASE, TOOL SET

83510-MK7-000

Unavailable

2

TOOL SET

89010-MK7-000

Unavailable

3

TOOL BAG This part replaces 89101-MB0-000.

89101-MS8-000

Unavailable

3

TOOL BAG

89101-MS8-000

Unavailable

4

BAG, AIR PRESSURE GAUGE | (Optional).

89102-469-003

$5.99

5

WRENCH, PLUG

89216-MB0-000

$23.76

6

WRENCH, HEX. (5MM) (NOT AVAILABLE)

89221-MB0-000

Unavailable

7

WRENCH, HEX. (5MM)

89221-429-000

$3.52

8

WRENCH, HEX. (8MM) (NOT AVAILABLE)

89222-371-000

Unavailable

9

SCREWDRIVER 4 (NOT AVAILABLE)

89224-MC7-000

Unavailable

10

WRENCH, EYE (10X12)

89227-461-000

$22.81

11

SPANNER, PIN

89230-MB1-000

$20.24

12

GAUGE, AIR PRESSURE (NOT AVAILABLE) | (Optional).

89301-461-003

Unavailable

13

WASHER (6X20) (L. SIDE ONLY) This part replaces 90512-329-690.

90512-KF9-900

$2.85

14

WASHER (6X9)

90513-KE6-890

Unavailable

15

NUT, CAP (6MM)

94021-06070-0S

$1.48

16

SPANNER, 8

99001-08000

$5.51

17

SPANNER (10X12)

99001-10120

$4.36

18

SPANNER (14X17)

99001-14170

$6.96

19

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$12.19

20

DRIVER 1, PLUS SCREW (NO.2)

99003-10000

$3.05

21

DRIVER 3, MINUS SCREW (NO.2)

99003-30000

$3.05

22

GRIP, SCREW DRIVER

99003-50000

$3.05

23

HANDLE, EYE WRENCH (12MM)

99006-12000

$2.76

24

WRENCH, EYE (27MM)

99006-27000

$4.13
